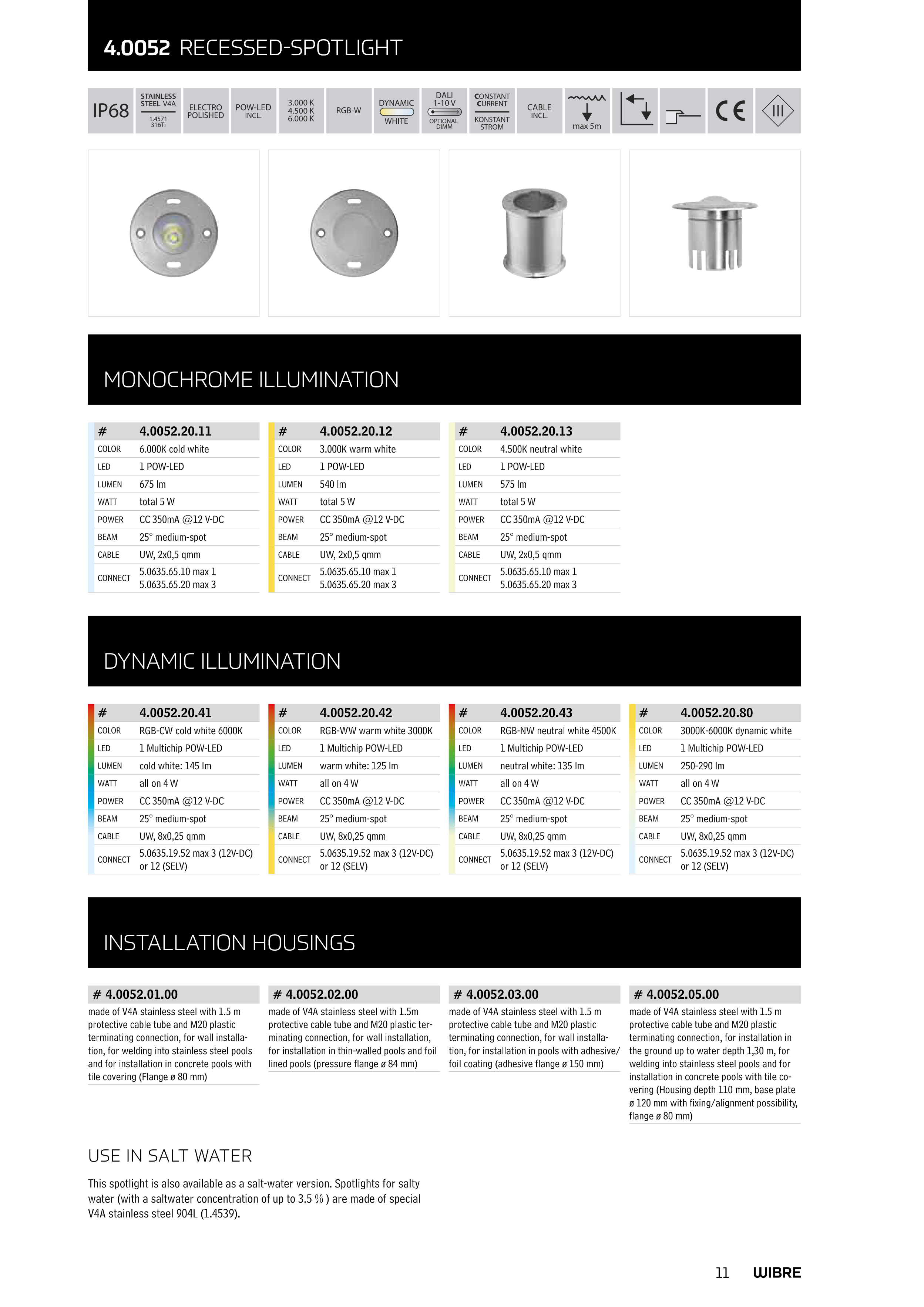

4.0052
4.0052
RECESSED-SPOTLIGHT
RECESSED-SPOTLIGHT
MONOCHROME ILLUMINATION
DYNAMIC ILLUMINATION
INSTALLATION HOUSINGS
USE IN SALT WATER
This spotlight is also available as a salt-water version. Spotlights for salty
water (with a saltwater concentration of up to 3.5 % ) are made of special
V4A stainless steel 904L (1.4539).
4.0052 RECESSED-SPOTLIGHT
IP68
STAINLESS
STEEL V4A
1.4571
316Ti
ELECTRO
POLISHED
POW-LED
INCL.
3.000 K
4.500 K
6.000 K
RGB-W
DYNAMIC
WHITE
CABLE
INCL.
max 5m
DALI
1-10 V
OPTIONAL
DIMM
CONSTANT
CURRENT
KONSTANT
STROM
# 4.0052.05.00
made of V4A stainless steel with 1.5 m
protective cable tube and M20 plastic
terminating connection, for installation in
the ground up to water depth 1,30 m, for
welding into stainless steel pools and for
installation in concrete pools with tile co-
vering (Housing depth 110 mm, base plate
ø 120 mm with fixing/alignment possibility,
flange ø 80 mm)
# 4.0052.03.00
made of V4A stainless steel with 1.5 m
protective cable tube and M20 plastic
terminating connection, for wall installa-
tion, for installation in pools with adhesive/
foil coating (adhesive flange ø 150 mm)
# 4.0052.02.00
made of V4A stainless steel with 1.5m
protective cable tube and M20 plastic ter-
minating connection, for wall installation,
for installation in thin-walled pools and foil
lined pools (pressure flange ø 84 mm)
# 4.0052.01.00
made of V4A stainless steel with 1.5 m
protective cable tube and M20 plastic
terminating connection, for wall installa-
tion, for welding into stainless steel pools
and for installation in concrete pools with
tile covering (Flange ø 80 mm)
#
4.0052.20.41
COLOR
RGB-CW cold white 6000K
LED
1 Multichip POW-LED
LUMEN
cold white: 145 lm
WATT
all on 4 W
POWER
CC 350mA @12 V-DC
BEAM
25° medium-spot
CABLE
UW, 8x0,25 qmm
CONNECT
5.0635.19.52 max 3 (12V-DC)
or 12 (SELV)
#
4.0052.20.42
COLOR
RGB-WW warm white 3000K
LED
1 Multichip POW-LED
LUMEN
warm white: 125 lm
WATT
all on 4 W
POWER
CC 350mA @12 V-DC
BEAM
25° medium-spot
CABLE
UW, 8x0,25 qmm
CONNECT
5.0635.19.52 max 3 (12V-DC)
or 12 (SELV)
#
4.0052.20.43
COLOR
RGB-NW neutral white 4500K
LED
1 Multichip POW-LED
LUMEN
neutral white: 135 lm
WATT
all on 4 W
POWER
CC 350mA @12 V-DC
BEAM
25° medium-spot
CABLE
UW, 8x0,25 qmm
CONNECT
5.0635.19.52 max 3 (12V-DC)
or 12 (SELV)
#
4.0052.20.80
COLOR
3000K-6000K dynamic white
LED
1 Multichip POW-LED
LUMEN
250-290 lm
WATT
all on 4 W
POWER
CC 350mA @12 V-DC
BEAM
25° medium-spot
CABLE
UW, 8x0,25 qmm
CONNECT
5.0635.19.52 max 3 (12V-DC)
or 12 (SELV)
#
4.0052.20.13
COLOR
4.500K neutral white
LED
1 POW-LED
LUMEN
575 lm
WATT
total 5 W
POWER
CC 350mA @12 V-DC
BEAM
25° medium-spot
CABLE
UW, 2x0,5 qmm
CONNECT
5.0635.65.10 max 1
5.0635.65.20 max 3
#
4.0052.20.12
COLOR
3.000K warm white
LED
1 POW-LED
LUMEN
540 lm
WATT
total 5 W
POWER
CC 350mA @12 V-DC
BEAM
25° medium-spot
CABLE
UW, 2x0,5 qmm
CONNECT
5.0635.65.10 max 1
5.0635.65.20 max 3
#
4.0052.20.11
COLOR
6.000K cold white
LED
1 POW-LED
LUMEN
675 lm
WATT
total 5 W
POWER
CC 350mA @12 V-DC
BEAM
25° medium-spot
CABLE
UW, 2x0,5 qmm
CONNECT
5.0635.65.10 max 1
5.0635.65.20 max 3
11
