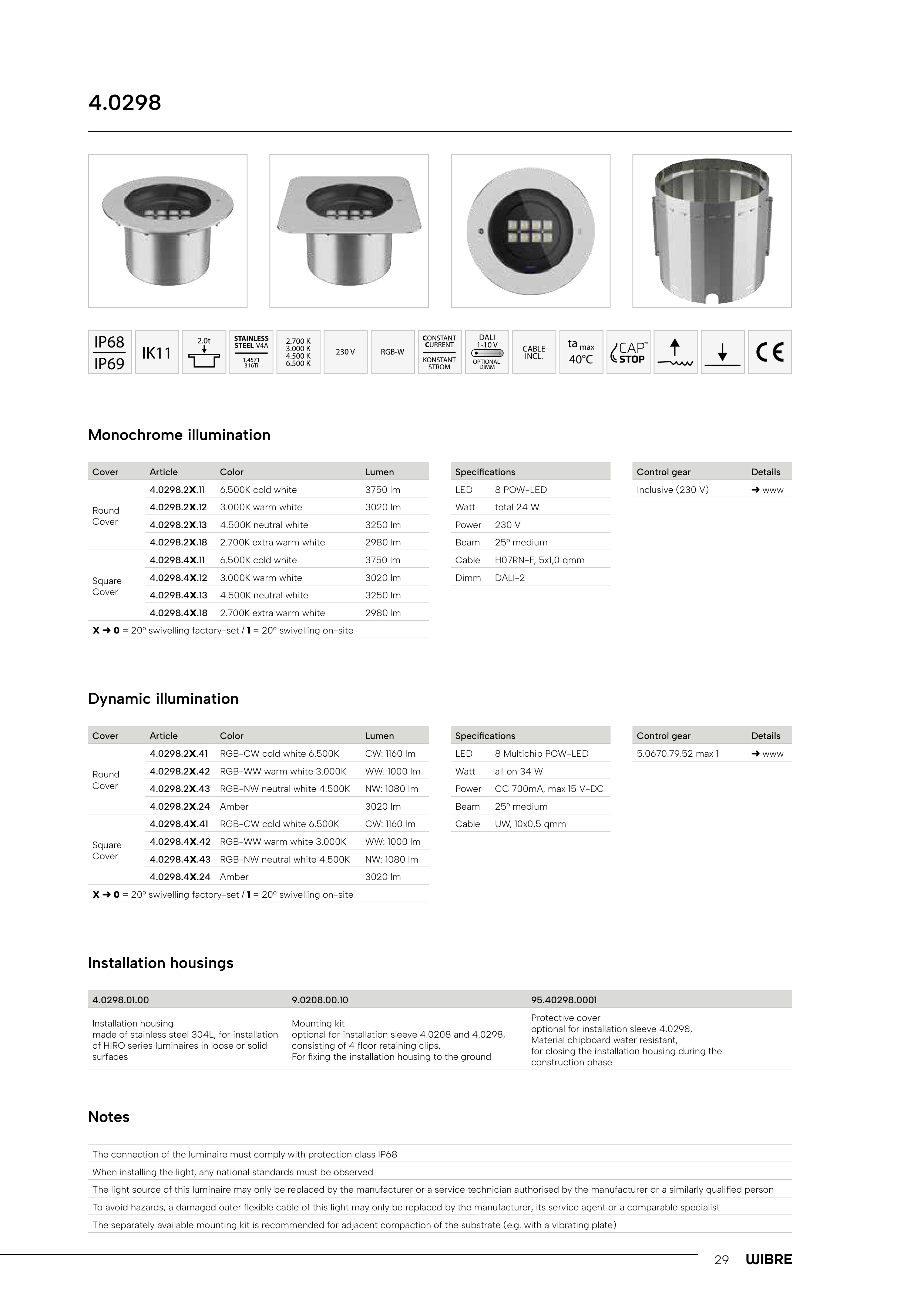

4.0298
Monochrome illumination
Dynamic illumination
Notes
Installation housings
Specifications
LED
8 POW-LED
Watt
total 24 W
Power
230 V
Beam
25° medium
Cable
H07RN-F, 5x1,0 qmm
Dimm
DALI-2
Control gear
Details
Inclusive (230 V)
➜ www
Cover
Article
Color
Lumen
Round
Cover
4.0298.2X.11
6.500K cold white
3750 lm
4.0298.2X.12
3.000K warm white
3020 lm
4.0298.2X.13
4.500K neutral white
3250 lm
4.0298.2X.18
2.700K extra warm white
2980 lm
Square
Cover
4.0298.4X.11
6.500K cold white
3750 lm
4.0298.4X.12
3.000K warm white
3020 lm
4.0298.4X.13
4.500K neutral white
3250 lm
4.0298.4X.18
2.700K extra warm white
2980 lm
X ➜ 0 = 20° swivelling factory-set / 1 = 20° swivelling on-site
Cover
Article
Color
Lumen
Round
Cover
4.0298.2X.41
RGB-CW cold white 6.500K
CW: 1160 lm
4.0298.2X.42
RGB-WW warm white 3.000K
WW: 1000 lm
4.0298.2X.43
RGB-NW neutral white 4.500K
NW: 1080 lm
4.0298.2X.24
Amber
3020 lm
Square
Cover
4.0298.4X.41
RGB-CW cold white 6.500K
CW: 1160 lm
4.0298.4X.42
RGB-WW warm white 3.000K
WW: 1000 lm
4.0298.4X.43
RGB-NW neutral white 4.500K
NW: 1080 lm
4.0298.4X.24
Amber
3020 lm
X ➜ 0 = 20° swivelling factory-set / 1 = 20° swivelling on-site
Specifications
LED
8 Multichip POW-LED
Watt
all on 34 W
Power
CC 700mA, max 15 V-DC
Beam
25° medium
Cable
UW, 10x0,5 qmm
Control gear
Details
5.0670.79.52 max 1
➜ www
The connection of the luminaire must comply with protection class IP68
When installing the light, any national standards must be observed
The light source of this luminaire may only be replaced by the manufacturer or a service technician authorised by the manufacturer or a similarly qualified person
To avoid hazards, a damaged outer flexible cable of this light may only be replaced by the manufacturer, its service agent or a comparable specialist
The separately available mounting kit is recommended for adjacent compaction of the substrate (e.g. with a vibrating plate)
4.0298.01.00
9.0208.00.10
95.40298.0001
Installation housing
made of stainless steel 304L, for installation
of HIRO series luminaires in loose or solid
surfaces
Mounting kit
optional for installation sleeve 4.0208 and 4.0298,
consisting of 4 floor retaining clips,
For fixing the installation housing to the ground
Protective cover
optional for installation sleeve 4.0298,
Material chipboard water resistant,
for closing the installation housing during the
construction phase
IP68
IP69
IK11
2.0t
STAINLESS
STEEL V4A
1.4571
316Ti
2.700 K
3.000 K
4.500 K
6.500 K
230 V
RGB-W
CABLE
INCL.
ta max
40°C
CONSTANT
CURRENT
KONSTANT
STROM
DALI
1-10 V
OPTIONAL
DIMM
