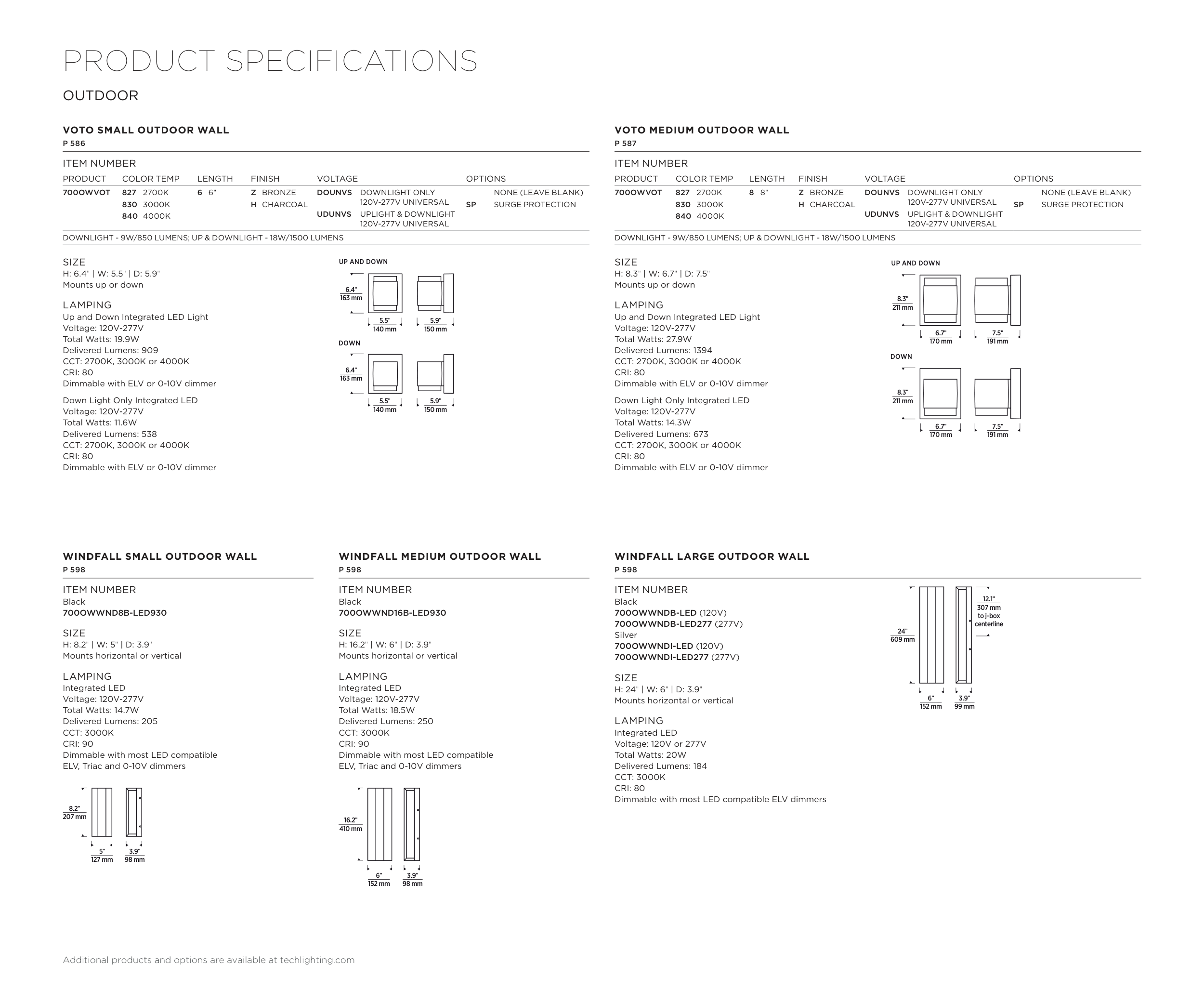

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
VOTO SMALL OUTDOOR WALL
P 586
ITEM NUMBER
PRODUCT
COLOR TEMP
LENGTH
FINISH
VOLTAGE
OPTIONS
700OWVOT
827 2700K
830 3000K
840 4000K
6 6"
Z BRONZE
H CHARCOAL
DOUNVS DOWNLIGHT ONLY
120V-277V UNIVERSAL
UDUNVS
UPLIGHT & DOWNLIGHT
120V-277V UNIVERSAL
NONE (LEAVE BLANK)
SP
SURGE PROTECTION
DOWNLIGHT - 9W/850 LUMENS; UP & DOWNLIGHT - 18W/1500 LUMENS
SIZE
H: 6.4" | W: 5.5" | D: 5.9"
Mounts up or down
LAMPING
Up and Down Integrated LED Light
Voltage: 120V-277V
Total Watts: 19.9W
Delivered Lumens: 909
CCT: 2700K, 3000K or 4000K
CRI: 80
Dimmable with ELV or 0-10V dimmer
Down Light Only Integrated LED
Voltage: 120V-277V
Total Watts: 11.6W
Delivered Lumens: 538
CCT: 2700K, 3000K or 4000K
CRI: 80
Dimmable with ELV or 0-10V dimmer
5.5"
140 mm
5.9"
150 mm
6.4"
163 mm
5.5"
140 mm
5.9"
150 mm
6.4"
163 mm
UP AND DOWN
DOWN
VOTO MEDIUM OUTDOOR WALL
P 587
ITEM NUMBER
PRODUCT
COLOR TEMP
LENGTH
FINISH
VOLTAGE
OPTIONS
700OWVOT
827 2700K
830 3000K
840 4000K
8 8"
Z BRONZE
H CHARCOAL
DOUNVS DOWNLIGHT ONLY
120V-277V UNIVERSAL
UDUNVS
UPLIGHT & DOWNLIGHT
120V-277V UNIVERSAL
NONE (LEAVE BLANK)
SP
SURGE PROTECTION
DOWNLIGHT - 9W/850 LUMENS; UP & DOWNLIGHT - 18W/1500 LUMENS
SIZE
H: 8.3" | W: 6.7" | D: 7.5"
Mounts up or down
LAMPING
Up and Down Integrated LED Light
Voltage: 120V-277V
Total Watts: 27.9W
Delivered Lumens: 1394
CCT: 2700K, 3000K or 4000K
CRI: 80
Dimmable with ELV or 0-10V dimmer
Down Light Only Integrated LED
Voltage: 120V-277V
Total Watts: 14.3W
Delivered Lumens: 673
CCT: 2700K, 3000K or 4000K
CRI: 80
Dimmable with ELV or 0-10V dimmer
6.7"
170 mm
7.5"
191 mm
8.3"
211 mm
6.7"
170 mm
7.5"
191 mm
8.3"
211 mm
UP AND DOWN
DOWN
WINDFALL SMALL OUTDOOR WALL
P 598
ITEM NUMBER
Black
700OWWND8B-LED930
SIZE
H: 8.2" | W: 5" | D: 3.9"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 14.7W
Delivered Lumens: 205
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
5"
127 mm
3.9"
98 mm
8.2"
207 mm
WINDFALL MEDIUM OUTDOOR WALL
P 598
ITEM NUMBER
Black
700OWWND16B-LED930
SIZE
H: 16.2" | W: 6" | D: 3.9"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 18.5W
Delivered Lumens: 250
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
6"
152 mm
3.9"
98 mm
16.2"
410 mm
WINDFALL LARGE OUTDOOR WALL
P 598
ITEM NUMBER
Black
700OWWNDB-LED (120V)
700OWWNDB-LED277 (277V)
Silver
700OWWNDI-LED (120V)
700OWWNDI-LED277 (277V)
SIZE
H: 24" | W: 6" | D: 3.9"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 20W
Delivered Lumens: 184
CCT: 3000K
CRI: 80
Dimmable with most LED compatible ELV dimmers
6"
152 mm
3.9"
99 mm
24"
609 mm
12.1"
307 mm
to j-box
centerline
OUTDOOR
