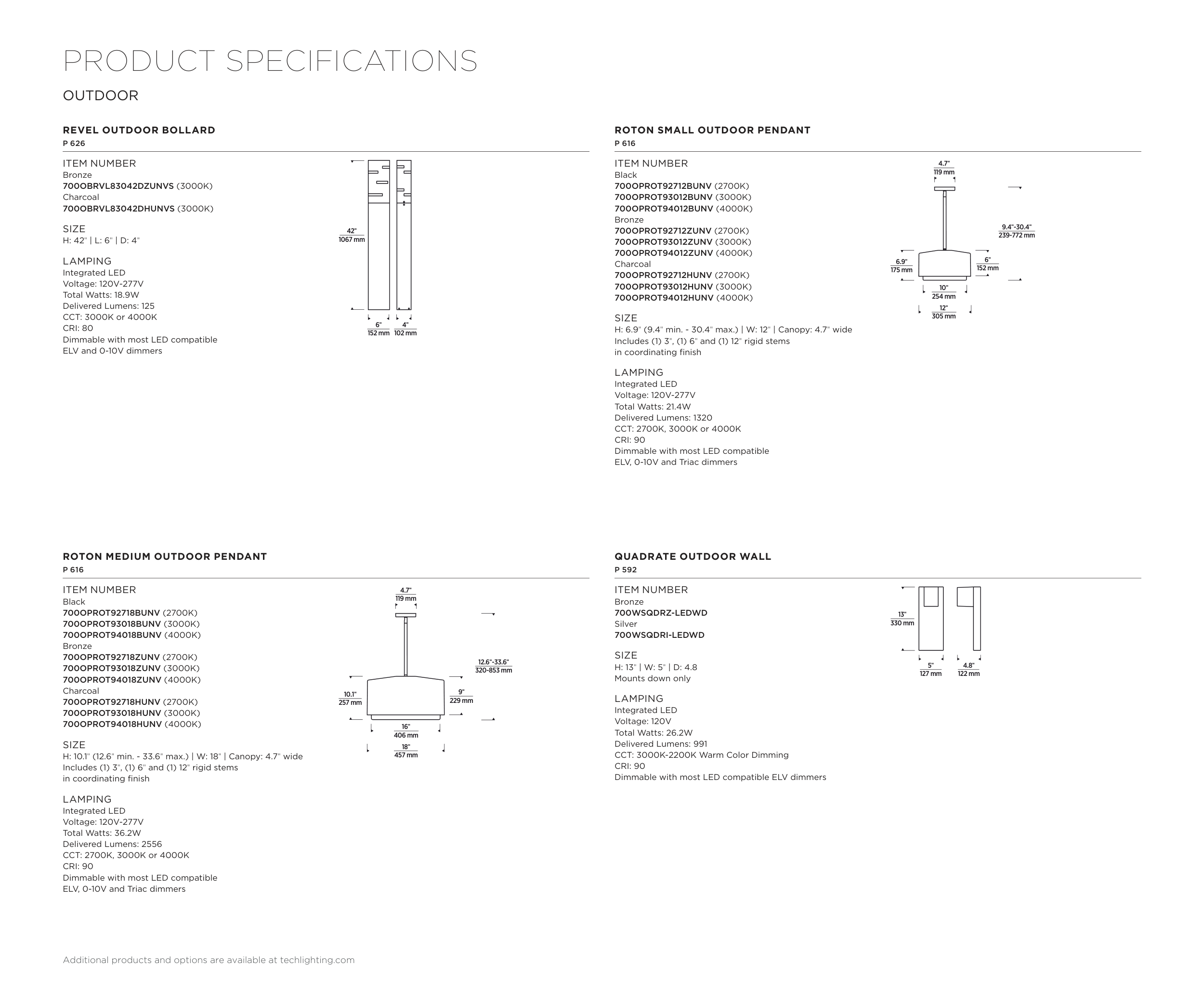

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
REVEL OUTDOOR BOLLARD
P 626
ITEM NUMBER
Bronze
700OBRVL83042DZUNVS (3000K)
Charcoal
700OBRVL83042DHUNVS (3000K)
SIZE
H: 42" | L: 6" | D: 4"
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 18.9W
Delivered Lumens: 125
CCT: 3000K or 4000K
CRI: 80
Dimmable with most LED compatible
ELV and 0-10V dimmers
6"
152 mm
4"
102 mm
42"
1067 mm
ROTON SMALL OUTDOOR PENDANT
P 616
ITEM NUMBER
Black
700OPROT92712BUNV (2700K)
700OPROT93012BUNV (3000K)
700OPROT94012BUNV (4000K)
Bronze
700OPROT92712ZUNV (2700K)
700OPROT93012ZUNV (3000K)
700OPROT94012ZUNV (4000K)
Charcoal
700OPROT92712HUNV (2700K)
700OPROT93012HUNV (3000K)
700OPROT94012HUNV (4000K)
SIZE
H: 6.9" (9.4" min. - 30.4" max.) | W: 12" | Canopy: 4.7" wide
Includes (1) 3", (1) 6" and (1) 12" rigid stems
in coordinating finish
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 21.4W
Delivered Lumens: 1320
CCT: 2700K, 3000K or 4000K
CRI: 90
Dimmable with most LED compatible
ELV, 0-10V and Triac dimmers
10"
254 mm
9.4"-30.4"
239-772 mm
12"
305 mm
6"
152 mm
6.9"
175 mm
4.7"
119 mm
ROTON MEDIUM OUTDOOR PENDANT
P 616
ITEM NUMBER
Black
700OPROT92718BUNV (2700K)
700OPROT93018BUNV (3000K)
700OPROT94018BUNV (4000K)
Bronze
700OPROT92718ZUNV (2700K)
700OPROT93018ZUNV (3000K)
700OPROT94018ZUNV (4000K)
Charcoal
700OPROT92718HUNV (2700K)
700OPROT93018HUNV (3000K)
700OPROT94018HUNV (4000K)
SIZE
H: 10.1" (12.6" min. - 33.6" max.) | W: 18" | Canopy: 4.7" wide
Includes (1) 3", (1) 6" and (1) 12" rigid stems
in coordinating finish
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 36.2W
Delivered Lumens: 2556
CCT: 2700K, 3000K or 4000K
CRI: 90
Dimmable with most LED compatible
ELV, 0-10V and Triac dimmers
16"
406 mm
12.6"-33.6"
320-853 mm
18"
457 mm
9"
229 mm
10.1"
257 mm
4.7"
119 mm
QUADRATE OUTDOOR WALL
P 592
ITEM NUMBER
Bronze
700WSQDRZ-LEDWD
Silver
700WSQDRI-LEDWD
SIZE
H: 13" | W: 5" | D: 4.8
Mounts down only
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 26.2W
Delivered Lumens: 991
CCT: 3000K-2200K Warm Color Dimming
CRI: 90
Dimmable with most LED compatible ELV dimmers
5"
127 mm
4.8"
122 mm
13"
330 mm
OUTDOOR
