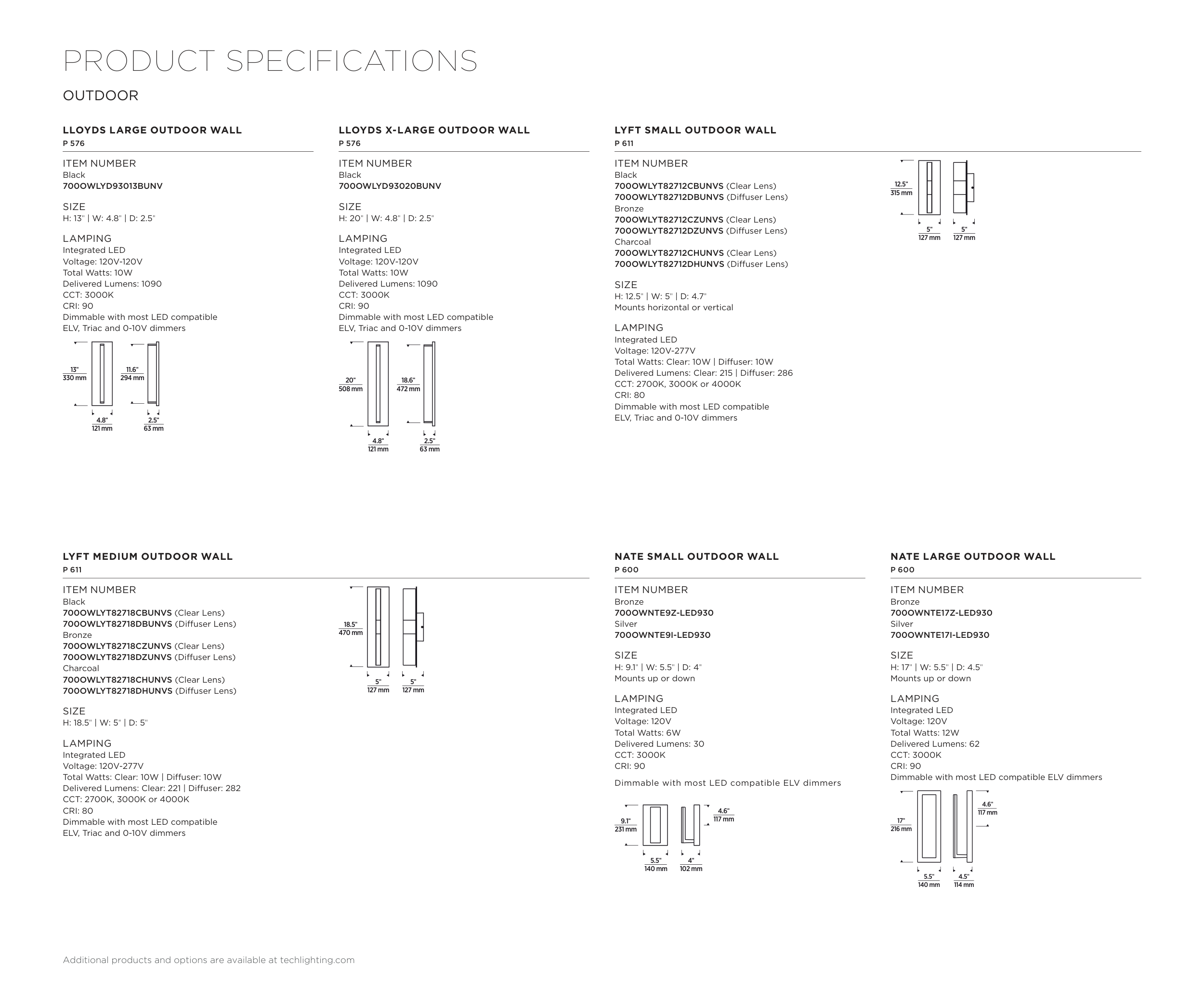

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
LLOYDS LARGE OUTDOOR WALL
P 576
ITEM NUMBER
Black
700OWLYD93013BUNV
SIZE
H: 13" | W: 4.8" | D: 2.5"
LAMPING
Integrated LED
Voltage: 120V-120V
Total Watts: 10W
Delivered Lumens: 1090
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
4.8"
121 mm
2.5"
63 mm
11.6"
294 mm
13"
330 mm
LLOYDS X-LARGE OUTDOOR WALL
P 576
ITEM NUMBER
Black
700OWLYD93020BUNV
SIZE
H: 20" | W: 4.8" | D: 2.5"
LAMPING
Integrated LED
Voltage: 120V-120V
Total Watts: 10W
Delivered Lumens: 1090
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
4.8"
121 mm
2.5"
63 mm
18.6"
472 mm
20"
508 mm
LYFT SMALL OUTDOOR WALL
P 611
ITEM NUMBER
Black
700OWLYT82712CBUNVS (Clear Lens)
700OWLYT82712DBUNVS (Diffuser Lens)
Bronze
700OWLYT82712CZUNVS (Clear Lens)
700OWLYT82712DZUNVS (Diffuser Lens)
Charcoal
700OWLYT82712CHUNVS (Clear Lens)
700OWLYT82712DHUNVS (Diffuser Lens)
SIZE
H: 12.5" | W: 5" | D: 4.7"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: Clear: 10W | Diffuser: 10W
Delivered Lumens: Clear: 215 | Diffuser: 286
CCT: 2700K, 3000K or 4000K
CRI: 80
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
5"
127 mm
5"
127 mm
12.5"
315 mm
LYFT MEDIUM OUTDOOR WALL
P 611
ITEM NUMBER
Black
700OWLYT82718CBUNVS (Clear Lens)
700OWLYT82718DBUNVS (Diffuser Lens)
Bronze
700OWLYT82718CZUNVS (Clear Lens)
700OWLYT82718DZUNVS (Diffuser Lens)
Charcoal
700OWLYT82718CHUNVS (Clear Lens)
700OWLYT82718DHUNVS (Diffuser Lens)
SIZE
H: 18.5" | W: 5" | D: 5"
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: Clear: 10W | Diffuser: 10W
Delivered Lumens: Clear: 221 | Diffuser: 282
CCT: 2700K, 3000K or 4000K
CRI: 80
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
5"
127 mm
5"
127 mm
18.5"
470 mm
NATE SMALL OUTDOOR WALL
P 600
ITEM NUMBER
Bronze
700OWNTE9Z-LED930
Silver
700OWNTE9I-LED930
SIZE
H: 9.1" | W: 5.5" | D: 4"
Mounts up or down
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 6W
Delivered Lumens: 30
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV dimmers
5.5"
140 mm
4"
102 mm
4.6"
117 mm
9.1"
231 mm
NATE LARGE OUTDOOR WALL
P 600
ITEM NUMBER
Bronze
700OWNTE17Z-LED930
Silver
700OWNTE17I-LED930
SIZE
H: 17" | W: 5.5" | D: 4.5"
Mounts up or down
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 12W
Delivered Lumens: 62
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV dimmers
5.5"
140 mm
4.5"
114 mm
4.6"
117 mm
17"
216 mm
OUTDOOR
