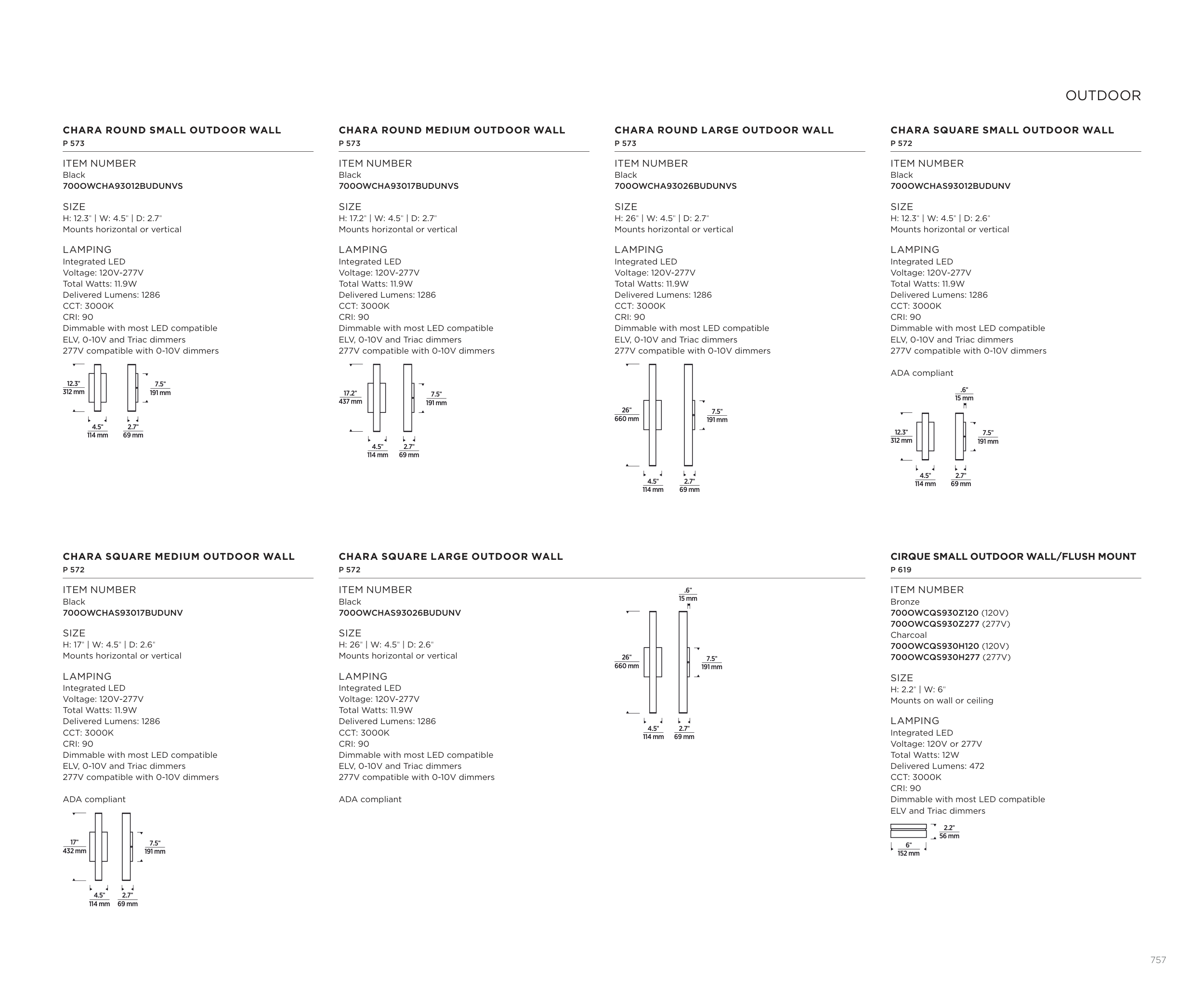

CHARA ROUND SMALL OUTDOOR WALL
P 573
ITEM NUMBER
Black
700OWCHA93012BUDUNVS
SIZE
H: 12.3" | W: 4.5" | D: 2.7"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 11.9W
Delivered Lumens: 1286
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, 0-10V and Triac dimmers
277V compatible with 0-10V dimmers
12.3"
312 mm
4.5"
114 mm
2.7"
69 mm
7.5"
191 mm
CHARA ROUND MEDIUM OUTDOOR WALL
P 573
ITEM NUMBER
Black
700OWCHA93017BUDUNVS
SIZE
H: 17.2" | W: 4.5" | D: 2.7"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 11.9W
Delivered Lumens: 1286
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, 0-10V and Triac dimmers
277V compatible with 0-10V dimmers
4.5"
114 mm
2.7"
69 mm
7.5"
191 mm
17.2"
437 mm
CHARA ROUND LARGE OUTDOOR WALL
P 573
ITEM NUMBER
Black
700OWCHA93026BUDUNVS
SIZE
H: 26" | W: 4.5" | D: 2.7"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 11.9W
Delivered Lumens: 1286
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, 0-10V and Triac dimmers
277V compatible with 0-10V dimmers
26"
660 mm
4.5"
114 mm
2.7"
69 mm
7.5"
191 mm
CHARA SQUARE SMALL OUTDOOR WALL
P 572
ITEM NUMBER
Black
700OWCHAS93012BUDUNV
SIZE
H: 12.3" | W: 4.5" | D: 2.6"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 11.9W
Delivered Lumens: 1286
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, 0-10V and Triac dimmers
277V compatible with 0-10V dimmers
ADA compliant
12.3"
312 mm
4.5"
114 mm
2.7"
69 mm
7.5"
191 mm
.6"
15 mm
CHARA SQUARE MEDIUM OUTDOOR WALL
P 572
ITEM NUMBER
Black
700OWCHAS93017BUDUNV
SIZE
H: 17" | W: 4.5" | D: 2.6"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 11.9W
Delivered Lumens: 1286
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, 0-10V and Triac dimmers
277V compatible with 0-10V dimmers
ADA compliant
17"
432 mm
4.5"
114 mm
2.7"
69 mm
7.5"
191 mm
CHARA SQUARE LARGE OUTDOOR WALL
P 572
ITEM NUMBER
Black
700OWCHAS93026BUDUNV
SIZE
H: 26" | W: 4.5" | D: 2.6"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 11.9W
Delivered Lumens: 1286
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, 0-10V and Triac dimmers
277V compatible with 0-10V dimmers
ADA compliant
26"
660 mm
4.5"
114 mm
2.7"
69 mm
7.5"
191 mm
.6"
15 mm
CIRQUE SMALL OUTDOOR WALL/FLUSH MOUNT
P 619
ITEM NUMBER
Bronze
700OWCQS930Z120 (120V)
700OWCQS930Z277 (277V)
Charcoal
700OWCQS930H120 (120V)
700OWCQS930H277 (277V)
SIZE
H: 2.2" | W: 6"
Mounts on wall or ceiling
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 12W
Delivered Lumens: 472
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
6"
152 mm
2.2"
56 mm
