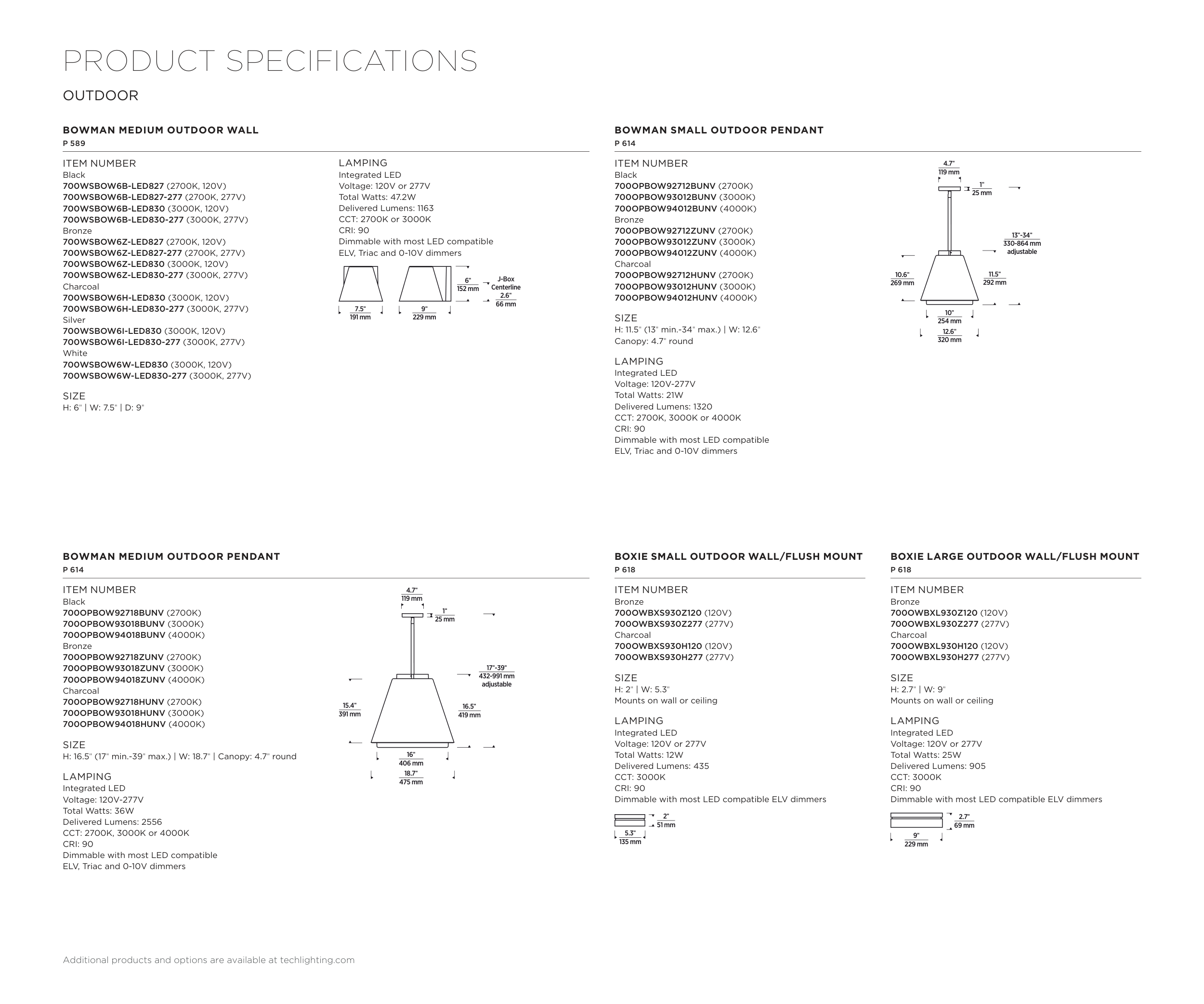

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
BOWMAN MEDIUM OUTDOOR WALL
P 589
ITEM NUMBER
Black
700WSBOW6B-LED827 (2700K, 120V)
700WSBOW6B-LED827-277 (2700K, 277V)
700WSBOW6B-LED830 (3000K, 120V)
700WSBOW6B-LED830-277 (3000K, 277V)
Bronze
700WSBOW6Z-LED827 (2700K, 120V)
700WSBOW6Z-LED827-277 (2700K, 277V)
700WSBOW6Z-LED830 (3000K, 120V)
700WSBOW6Z-LED830-277 (3000K, 277V)
Charcoal
700WSBOW6H-LED830 (3000K, 120V)
700WSBOW6H-LED830-277 (3000K, 277V)
Silver
700WSBOW6I-LED830 (3000K, 120V)
700WSBOW6I-LED830-277 (3000K, 277V)
White
700WSBOW6W-LED830 (3000K, 120V)
700WSBOW6W-LED830-277 (3000K, 277V)
SIZE
H: 6" | W: 7.5" | D: 9"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 47.2W
Delivered Lumens: 1163
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
7.5"
191 mm
9"
229 mm
6"
152 mm
J-Box
Centerline
2.6"
66 mm
BOWMAN SMALL OUTDOOR PENDANT
P 614
ITEM NUMBER
Black
700OPBOW92712BUNV (2700K)
700OPBOW93012BUNV (3000K)
700OPBOW94012BUNV (4000K)
Bronze
700OPBOW92712ZUNV (2700K)
700OPBOW93012ZUNV (3000K)
700OPBOW94012ZUNV (4000K)
Charcoal
700OPBOW92712HUNV (2700K)
700OPBOW93012HUNV (3000K)
700OPBOW94012HUNV (4000K)
SIZE
H: 11.5" (13" min.-34" max.) | W: 12.6"
Canopy: 4.7" round
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 21W
Delivered Lumens: 1320
CCT: 2700K, 3000K or 4000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
10"
254 mm
13"-34"
330-864 mm
adjustable
4.7"
119 mm
12.6"
320 mm
11.5"
292 mm
10.6"
269 mm
1"
25 mm
BOWMAN MEDIUM OUTDOOR PENDANT
P 614
ITEM NUMBER
Black
700OPBOW92718BUNV (2700K)
700OPBOW93018BUNV (3000K)
700OPBOW94018BUNV (4000K)
Bronze
700OPBOW92718ZUNV (2700K)
700OPBOW93018ZUNV (3000K)
700OPBOW94018ZUNV (4000K)
Charcoal
700OPBOW92718HUNV (2700K)
700OPBOW93018HUNV (3000K)
700OPBOW94018HUNV (4000K)
SIZE
H: 16.5" (17" min.-39" max.) | W: 18.7" | Canopy: 4.7" round
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 36W
Delivered Lumens: 2556
CCT: 2700K, 3000K or 4000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
16"
406 mm
17"-39"
432-991 mm
adjustable
4.7"
119 mm
18.7"
475 mm
16.5"
419 mm
15.4"
391 mm
1"
25 mm
BOXIE SMALL OUTDOOR WALL/FLUSH MOUNT
P 618
ITEM NUMBER
Bronze
700OWBXS930Z120 (120V)
700OWBXS930Z277 (277V)
Charcoal
700OWBXS930H120 (120V)
700OWBXS930H277 (277V)
SIZE
H: 2" | W: 5.3"
Mounts on wall or ceiling
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 12W
Delivered Lumens: 435
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV dimmers
5.3"
135 mm
2"
51 mm
BOXIE LARGE OUTDOOR WALL/FLUSH MOUNT
P 618
ITEM NUMBER
Bronze
700OWBXL930Z120 (120V)
700OWBXL930Z277 (277V)
Charcoal
700OWBXL930H120 (120V)
700OWBXL930H277 (277V)
SIZE
H: 2.7" | W: 9"
Mounts on wall or ceiling
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 25W
Delivered Lumens: 905
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV dimmers
9"
229 mm
2.7"
69 mm
OUTDOOR
