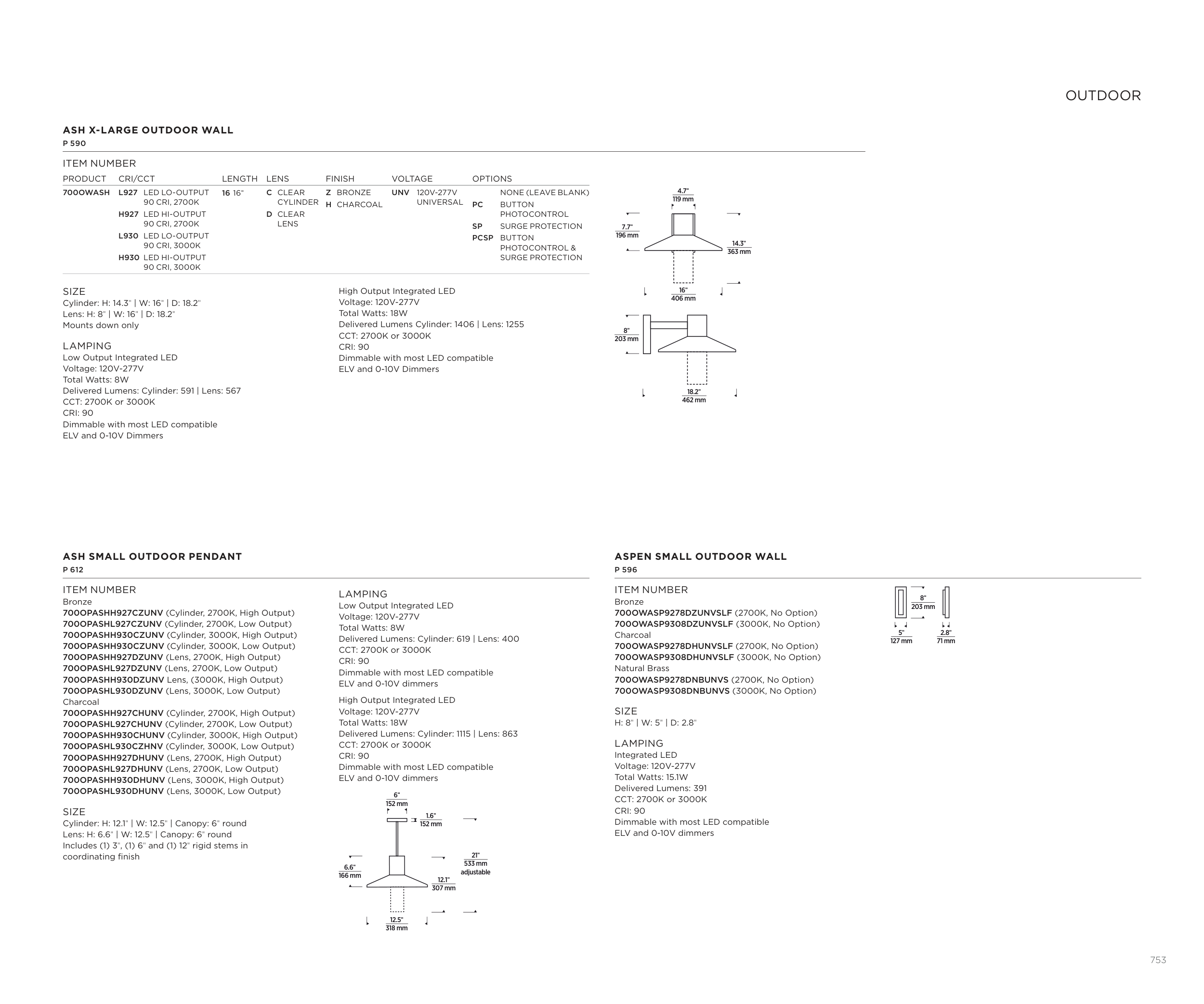

753
ASH X-LARGE OUTDOOR WALL
P 590
ITEM NUMBER
PRODUCT
CRI/CCT
LENGTH
LENS
FINISH
VOLTAGE
OPTIONS
700OWASH
L927 LED LO-OUTPUT
90 CRI, 2700K
H927 LED HI-OUTPUT
90 CRI, 2700K
L930 LED LO-OUTPUT
90 CRI, 3000K
H930 LED HI-OUTPUT
90 CRI, 3000K
16 16"
C CLEAR
CYLINDER
D CLEAR
LENS
Z BRONZE
H CHARCOAL
UNV 120V-277V
UNIVERSAL
NONE (LEAVE BLANK)
PC
BUTTON
PHOTOCONTROL
SP
SURGE PROTECTION
PCSP BUTTON
PHOTOCONTROL &
SURGE PROTECTION
SIZE
Cylinder: H: 14.3" | W: 16" | D: 18.2"
Lens: H: 8" | W: 16" | D: 18.2"
Mounts down only
LAMPING
Low Output Integrated LED
Voltage: 120V-277V
Total Watts: 8W
Delivered Lumens: Cylinder: 591 | Lens: 567
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V Dimmers
High Output Integrated LED
Voltage: 120V-277V
Total Watts: 18W
Delivered Lumens Cylinder: 1406 | Lens: 1255
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V Dimmers
18.2"
462 mm
4.7"
119 mm
16"
406 mm
14.3"
363 mm
8"
203 mm
7.7"
196 mm
ASH SMALL OUTDOOR PENDANT
P 612
ITEM NUMBER
Bronze
700OPASHH927CZUNV (Cylinder, 2700K, High Output)
700OPASHL927CZUNV (Cylinder, 2700K, Low Output)
700OPASHH930CZUNV (Cylinder, 3000K, High Output)
700OPASHH930CZUNV (Cylinder, 3000K, Low Output)
700OPASHH927DZUNV (Lens, 2700K, High Output)
700OPASHL927DZUNV (Lens, 2700K, Low Output)
700OPASHH930DZUNV Lens, (3000K, High Output)
700OPASHL930DZUNV (Lens, 3000K, Low Output)
Charcoal
700OPASHH927CHUNV (Cylinder, 2700K, High Output)
700OPASHL927CHUNV (Cylinder, 2700K, Low Output)
700OPASHH930CHUNV (Cylinder, 3000K, High Output)
700OPASHL930CZHNV (Cylinder, 3000K, Low Output)
700OPASHH927DHUNV (Lens, 2700K, High Output)
700OPASHL927DHUNV (Lens, 2700K, Low Output)
700OPASHH930DHUNV (Lens, 3000K, High Output)
700OPASHL930DHUNV (Lens, 3000K, Low Output)
SIZE
Cylinder: H: 12.1" | W: 12.5" | Canopy: 6" round
Lens: H: 6.6" | W: 12.5" | Canopy: 6" round
Includes (1) 3", (1) 6" and (1) 12" rigid stems in
coordinating finish
LAMPING
Low Output Integrated LED
Voltage: 120V-277V
Total Watts: 8W
Delivered Lumens: Cylinder: 619 | Lens: 400
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V dimmers
High Output Integrated LED
Voltage: 120V-277V
Total Watts: 18W
Delivered Lumens: Cylinder: 1115 | Lens: 863
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V dimmers
12.5"
318 mm
21"
533 mm
adjustable
1.6"
152 mm
12.1"
307 mm
6.6"
166 mm
6"
152 mm
ASPEN SMALL OUTDOOR WALL
P 596
ITEM NUMBER
Bronze
700OWASP9278DZUNVSLF (2700K, No Option)
700OWASP9308DZUNVSLF (3000K, No Option)
Charcoal
700OWASP9278DHUNVSLF (2700K, No Option)
700OWASP9308DHUNVSLF (3000K, No Option)
Natural Brass
700OWASP9278DNBUNVS (2700K, No Option)
700OWASP9308DNBUNVS (3000K, No Option)
SIZE
H: 8" | W: 5" | D: 2.8"
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 15.1W
Delivered Lumens: 391
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V dimmers
8"
203 mm
5"
127 mm
2.8"
71 mm
OUTDOOR
