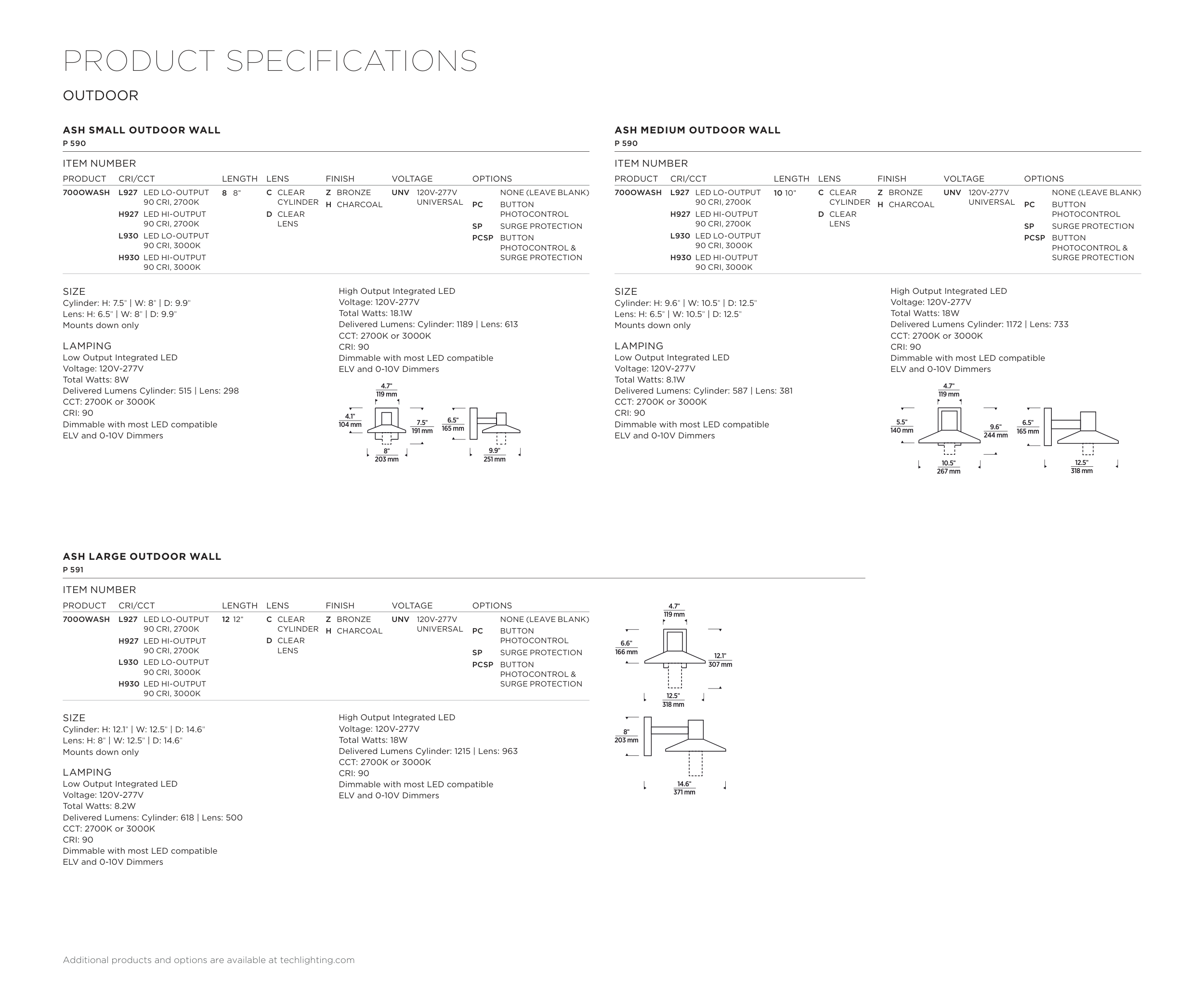

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
ASH SMALL OUTDOOR WALL
P 590
ITEM NUMBER
PRODUCT
CRI/CCT
LENGTH
LENS
FINISH
VOLTAGE
OPTIONS
700OWASH
L927 LED LO-OUTPUT
90 CRI, 2700K
H927 LED HI-OUTPUT
90 CRI, 2700K
L930 LED LO-OUTPUT
90 CRI, 3000K
H930 LED HI-OUTPUT
90 CRI, 3000K
8 8"
C CLEAR
CYLINDER
D CLEAR
LENS
Z BRONZE
H CHARCOAL
UNV 120V-277V
UNIVERSAL
NONE (LEAVE BLANK)
PC
BUTTON
PHOTOCONTROL
SP
SURGE PROTECTION
PCSP BUTTON
PHOTOCONTROL &
SURGE PROTECTION
SIZE
Cylinder: H: 7.5" | W: 8" | D: 9.9"
Lens: H: 6.5" | W: 8" | D: 9.9"
Mounts down only
LAMPING
Low Output Integrated LED
Voltage: 120V-277V
Total Watts: 8W
Delivered Lumens Cylinder: 515 | Lens: 298
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V Dimmers
High Output Integrated LED
Voltage: 120V-277V
Total Watts: 18.1W
Delivered Lumens: Cylinder: 1189 | Lens: 613
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V Dimmers
4.7"
119 mm
8"
203 mm
7.5"
191 mm
4.1"
104 mm
9.9"
251 mm
6.5"
165 mm
ASH MEDIUM OUTDOOR WALL
P 590
ITEM NUMBER
PRODUCT
CRI/CCT
LENGTH
LENS
FINISH
VOLTAGE
OPTIONS
700OWASH
L927 LED LO-OUTPUT
90 CRI, 2700K
H927 LED HI-OUTPUT
90 CRI, 2700K
L930 LED LO-OUTPUT
90 CRI, 3000K
H930 LED HI-OUTPUT
90 CRI, 3000K
10 10"
C CLEAR
CYLINDER
D CLEAR
LENS
Z BRONZE
H CHARCOAL
UNV 120V-277V
UNIVERSAL
NONE (LEAVE BLANK)
PC
BUTTON
PHOTOCONTROL
SP
SURGE PROTECTION
PCSP BUTTON
PHOTOCONTROL &
SURGE PROTECTION
SIZE
Cylinder: H: 9.6" | W: 10.5" | D: 12.5"
Lens: H: 6.5" | W: 10.5" | D: 12.5"
Mounts down only
LAMPING
Low Output Integrated LED
Voltage: 120V-277V
Total Watts: 8.1W
Delivered Lumens: Cylinder: 587 | Lens: 381
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V Dimmers
High Output Integrated LED
Voltage: 120V-277V
Total Watts: 18W
Delivered Lumens Cylinder: 1172 | Lens: 733
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V Dimmers
4.7"
119 mm
12.5"
318 mm
10.5"
267 mm
9.6"
244 mm
5.5"
140 mm
6.5"
165 mm
ASH LARGE OUTDOOR WALL
P 591
ITEM NUMBER
PRODUCT
CRI/CCT
LENGTH
LENS
FINISH
VOLTAGE
OPTIONS
700OWASH
L927 LED LO-OUTPUT
90 CRI, 2700K
H927 LED HI-OUTPUT
90 CRI, 2700K
L930 LED LO-OUTPUT
90 CRI, 3000K
H930 LED HI-OUTPUT
90 CRI, 3000K
12 12"
C CLEAR
CYLINDER
D CLEAR
LENS
Z BRONZE
H CHARCOAL
UNV 120V-277V
UNIVERSAL
NONE (LEAVE BLANK)
PC
BUTTON
PHOTOCONTROL
SP
SURGE PROTECTION
PCSP BUTTON
PHOTOCONTROL &
SURGE PROTECTION
SIZE
Cylinder: H: 12.1" | W: 12.5" | D: 14.6"
Lens: H: 8" | W: 12.5" | D: 14.6"
Mounts down only
LAMPING
Low Output Integrated LED
Voltage: 120V-277V
Total Watts: 8.2W
Delivered Lumens: Cylinder: 618 | Lens: 500
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V Dimmers
High Output Integrated LED
Voltage: 120V-277V
Total Watts: 18W
Delivered Lumens Cylinder: 1215 | Lens: 963
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and 0-10V Dimmers
4.7"
119 mm
12.5"
318 mm
14.6"
371 mm
12.1"
307 mm
6.6"
166 mm
8"
203 mm
OUTDOOR
