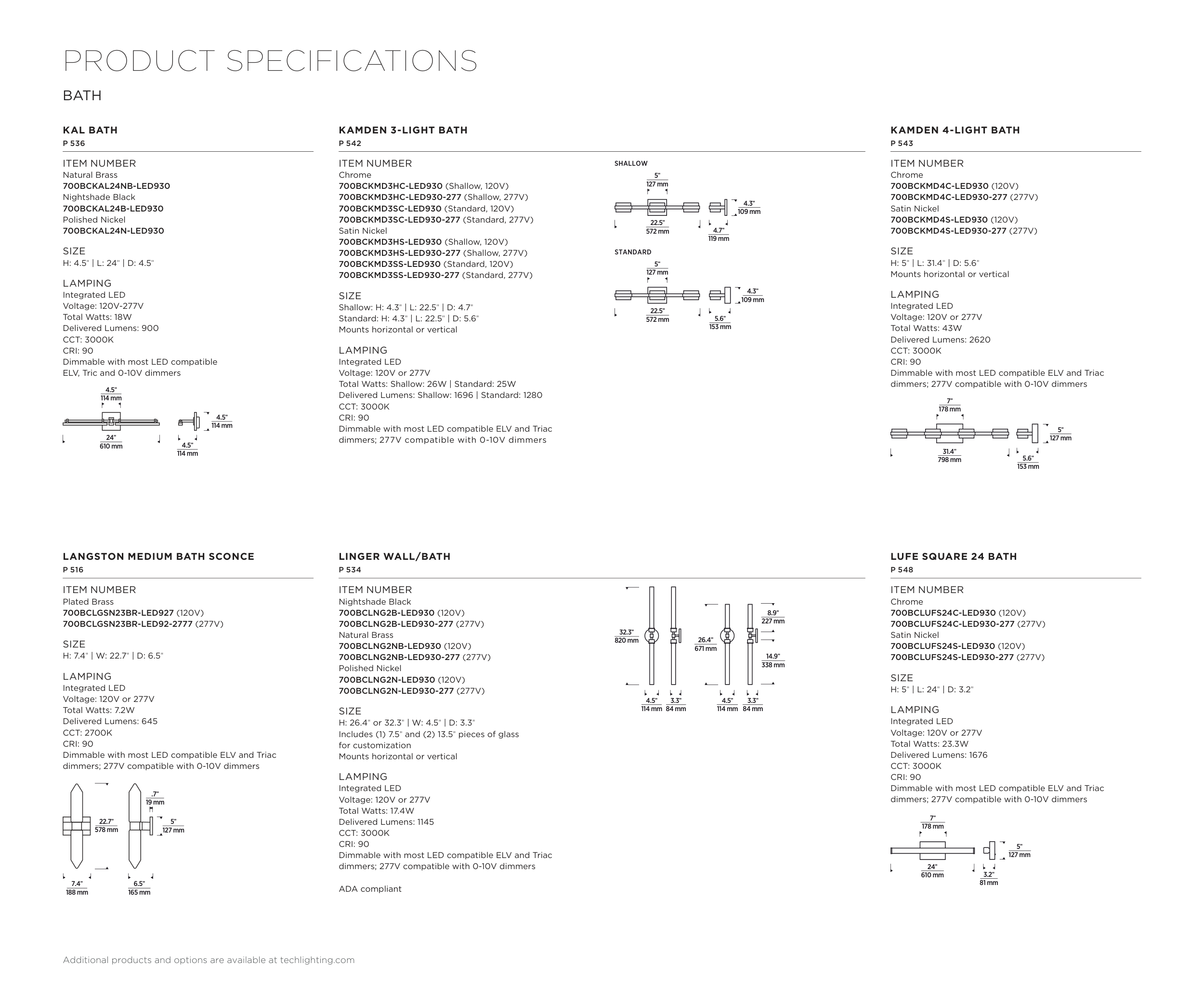

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
KAL BATH
P 536
ITEM NUMBER
Natural Brass
700BCKAL24NB-LED930
Nightshade Black
700BCKAL24B-LED930
Polished Nickel
700BCKAL24N-LED930
SIZE
H: 4.5" | L: 24" | D: 4.5"
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 18W
Delivered Lumens: 900
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Tric and 0-10V dimmers
4.5"
114 mm
4.5"
114 mm
24"
610 mm
4.5"
114 mm
KAMDEN 3-LIGHT BATH
P 542
ITEM NUMBER
Chrome
700BCKMD3HC-LED930 (Shallow, 120V)
700BCKMD3HC-LED930-277 (Shallow, 277V)
700BCKMD3SC-LED930 (Standard, 120V)
700BCKMD3SC-LED930-277 (Standard, 277V)
Satin Nickel
700BCKMD3HS-LED930 (Shallow, 120V)
700BCKMD3HS-LED930-277 (Shallow, 277V)
700BCKMD3SS-LED930 (Standard, 120V)
700BCKMD3SS-LED930-277 (Standard, 277V)
SIZE
Shallow: H: 4.3" | L: 22.5" | D: 4.7"
Standard: H: 4.3" | L: 22.5" | D: 5.6"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: Shallow: 26W | Standard: 25W
Delivered Lumens: Shallow: 1696 | Standard: 1280
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V compatible with 0-10V dimmers
22.5"
572 mm
22.5"
572 mm
SHALLOW
STANDARD
4.7"
119 mm
5.6"
153 mm
5"
127 mm
5"
127 mm
4.3"
109 mm
4.3"
109 mm
KAMDEN 4-LIGHT BATH
P 543
ITEM NUMBER
Chrome
700BCKMD4C-LED930 (120V)
700BCKMD4C-LED930-277 (277V)
Satin Nickel
700BCKMD4S-LED930 (120V)
700BCKMD4S-LED930-277 (277V)
SIZE
H: 5" | L: 31.4" | D: 5.6"
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 43W
Delivered Lumens: 2620
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V compatible with 0-10V dimmers
31.4"
798 mm
5.6"
153 mm
7"
178 mm
5"
127 mm
LANGSTON MEDIUM BATH SCONCE
P 516
ITEM NUMBER
Plated Brass
700BCLGSN23BR-LED927 (120V)
700BCLGSN23BR-LED92-2777 (277V)
SIZE
H: 7.4" | W: 22.7" | D: 6.5"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 7.2W
Delivered Lumens: 645
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V compatible with 0-10V dimmers
5"
127 mm
22.7"
578 mm
7.4"
188 mm
.7"
19 mm
6.5"
165 mm
LINGER WALL/BATH
P 534
ITEM NUMBER
Nightshade Black
700BCLNG2B-LED930 (120V)
700BCLNG2B-LED930-277 (277V)
Natural Brass
700BCLNG2NB-LED930 (120V)
700BCLNG2NB-LED930-277 (277V)
Polished Nickel
700BCLNG2N-LED930 (120V)
700BCLNG2N-LED930-277 (277V)
SIZE
H: 26.4" or 32.3" | W: 4.5" | D: 3.3"
Includes (1) 7.5" and (2) 13.5" pieces of glass
for customization
Mounts horizontal or vertical
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 17.4W
Delivered Lumens: 1145
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V compatible with 0-10V dimmers
ADA compliant
8.9"
227 mm
14.9"
338 mm
32.3"
820 mm
26.4"
671 mm
4.5"
114 mm
3.3"
84 mm
3.3"
84 mm
4.5"
114 mm
LUFE SQUARE 24 BATH
P 548
ITEM NUMBER
Chrome
700BCLUFS24C-LED930 (120V)
700BCLUFS24C-LED930-277 (277V)
Satin Nickel
700BCLUFS24S-LED930 (120V)
700BCLUFS24S-LED930-277 (277V)
SIZE
H: 5" | L: 24" | D: 3.2"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 23.3W
Delivered Lumens: 1676
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V compatible with 0-10V dimmers
7"
178 mm
24"
610 mm
5"
127 mm
3.2"
81 mm
BATH
