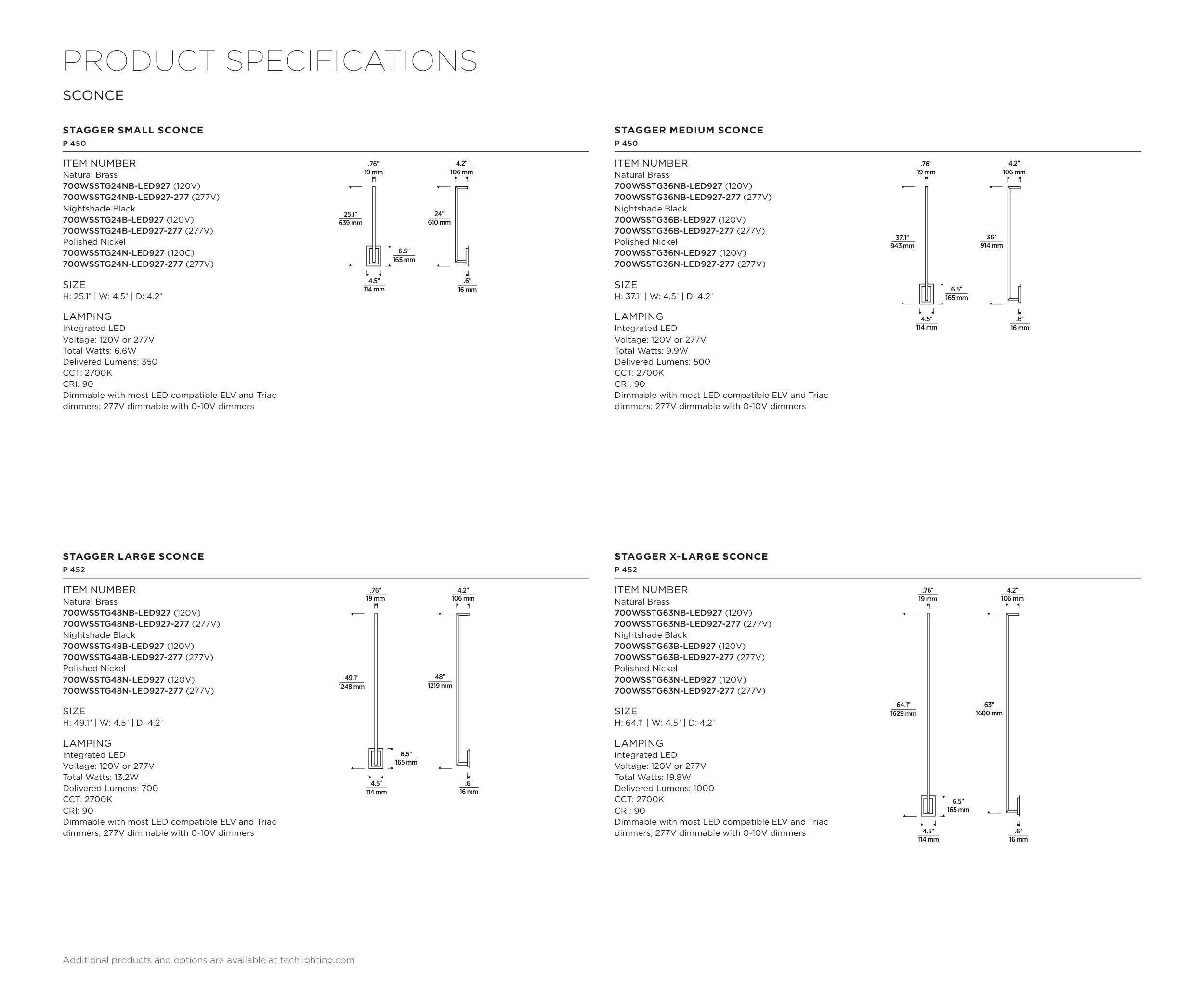

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
STAGGER SMALL SCONCE
P 450
ITEM NUMBER
Natural Brass
700WSSTG24NB-LED927 (120V)
700WSSTG24NB-LED927-277 (277V)
Nightshade Black
700WSSTG24B-LED927 (120V)
700WSSTG24B-LED927-277 (277V)
Polished Nickel
700WSSTG24N-LED927 (120C)
700WSSTG24N-LED927-277 (277V)
SIZE
H: 25.1" | W: 4.5" | D: 4.2"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 6.6W
Delivered Lumens: 350
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
24"
610 mm
25.1"
639 mm
.76"
19 mm
6.5"
165 mm
.6"
16 mm
4.2"
106 mm
4.5"
114 mm
STAGGER MEDIUM SCONCE
P 450
ITEM NUMBER
Natural Brass
700WSSTG36NB-LED927 (120V)
700WSSTG36NB-LED927-277 (277V)
Nightshade Black
700WSSTG36B-LED927 (120V)
700WSSTG36B-LED927-277 (277V)
Polished Nickel
700WSSTG36N-LED927 (120V)
700WSSTG36N-LED927-277 (277V)
SIZE
H: 37.1" | W: 4.5" | D: 4.2"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 9.9W
Delivered Lumens: 500
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
.76"
19 mm
6.5"
165 mm
.6"
16 mm
4.2"
106 mm
36"
914 mm
37.1"
943 mm
4.5"
114 mm
STAGGER LARGE SCONCE
P 452
ITEM NUMBER
Natural Brass
700WSSTG48NB-LED927 (120V)
700WSSTG48NB-LED927-277 (277V)
Nightshade Black
700WSSTG48B-LED927 (120V)
700WSSTG48B-LED927-277 (277V)
Polished Nickel
700WSSTG48N-LED927 (120V)
700WSSTG48N-LED927-277 (277V)
SIZE
H: 49.1" | W: 4.5" | D: 4.2"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 13.2W
Delivered Lumens: 700
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
48"
1219 mm
49.1"
1248 mm
.76"
19 mm
6.5"
165 mm
.6"
16 mm
4.2"
106 mm
4.5"
114 mm
STAGGER X-LARGE SCONCE
P 452
ITEM NUMBER
Natural Brass
700WSSTG63NB-LED927 (120V)
700WSSTG63NB-LED927-277 (277V)
Nightshade Black
700WSSTG63B-LED927 (120V)
700WSSTG63B-LED927-277 (277V)
Polished Nickel
700WSSTG63N-LED927 (120V)
700WSSTG63N-LED927-277 (277V)
SIZE
H: 64.1" | W: 4.5" | D: 4.2"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 19.8W
Delivered Lumens: 1000
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
63"
1600 mm
64.1"
1629 mm
.76"
19 mm
6.5"
165 mm
.6"
16 mm
4.2"
106 mm
4.5"
114 mm
SCONCE
