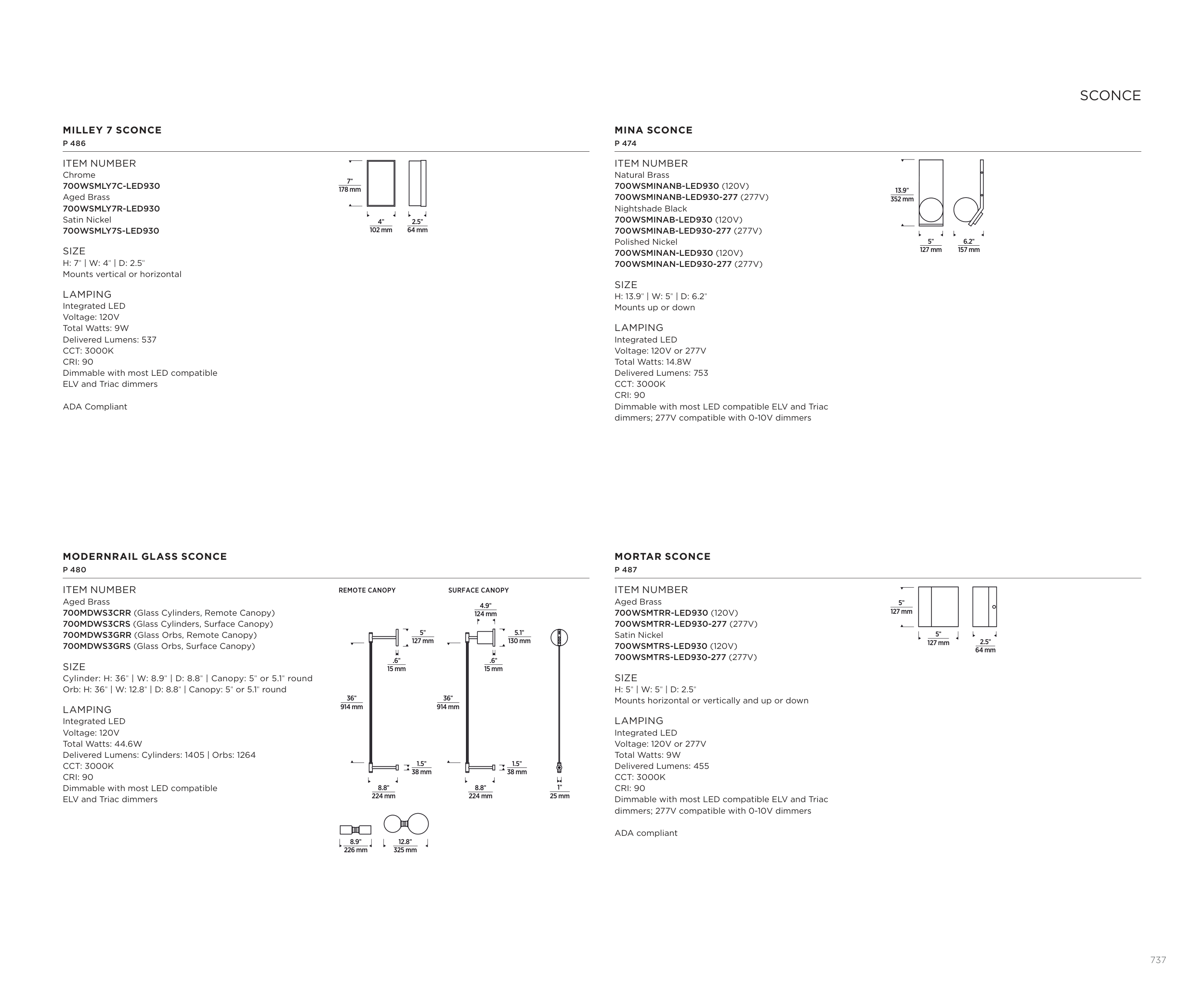

737
MILLEY 7 SCONCE
P 486
ITEM NUMBER
Chrome
700WSMLY7C-LED930
Aged Brass
700WSMLY7R-LED930
Satin Nickel
700WSMLY7S-LED930
SIZE
H: 7" | W: 4" | D: 2.5"
Mounts vertical or horizontal
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 9W
Delivered Lumens: 537
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
ADA Compliant
4"
102 mm
2.5"
64 mm
7"
178 mm
MINA SCONCE
P 474
ITEM NUMBER
Natural Brass
700WSMINANB-LED930 (120V)
700WSMINANB-LED930-277 (277V)
Nightshade Black
700WSMINAB-LED930 (120V)
700WSMINAB-LED930-277 (277V)
Polished Nickel
700WSMINAN-LED930 (120V)
700WSMINAN-LED930-277 (277V)
SIZE
H: 13.9" | W: 5" | D: 6.2"
Mounts up or down
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 14.8W
Delivered Lumens: 753
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V compatible with 0-10V dimmers
5"
127 mm
6.2"
157 mm
13.9"
352 mm
MODERNRAIL GLASS SCONCE
P 480
ITEM NUMBER
Aged Brass
700MDWS3CRR (Glass Cylinders, Remote Canopy)
700MDWS3CRS (Glass Cylinders, Surface Canopy)
700MDWS3GRR (Glass Orbs, Remote Canopy)
700MDWS3GRS (Glass Orbs, Surface Canopy)
SIZE
Cylinder: H: 36" | W: 8.9" | D: 8.8" | Canopy: 5" or 5.1" round
Orb: H: 36" | W: 12.8" | D: 8.8" | Canopy: 5" or 5.1" round
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 44.6W
Delivered Lumens: Cylinders: 1405 | Orbs: 1264
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
8.9"
226 mm
8.8"
224 mm
8.8"
224 mm
4.9"
124 mm
5.1"
130 mm
12.8"
325 mm
5"
127 mm
REMOTE CANOPY
SURFACE CANOPY
36"
914 mm
36"
914 mm
1"
25 mm
.6"
15 mm
.6"
15 mm
1.5"
38 mm
1.5"
38 mm
MORTAR SCONCE
P 487
ITEM NUMBER
Aged Brass
700WSMTRR-LED930 (120V)
700WSMTRR-LED930-277 (277V)
Satin Nickel
700WSMTRS-LED930 (120V)
700WSMTRS-LED930-277 (277V)
SIZE
H: 5" | W: 5" | D: 2.5"
Mounts horizontal or vertically and up or down
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 9W
Delivered Lumens: 455
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V compatible with 0-10V dimmers
ADA compliant
5"
127 mm
2.5"
64 mm
5"
127 mm
SCONCE
