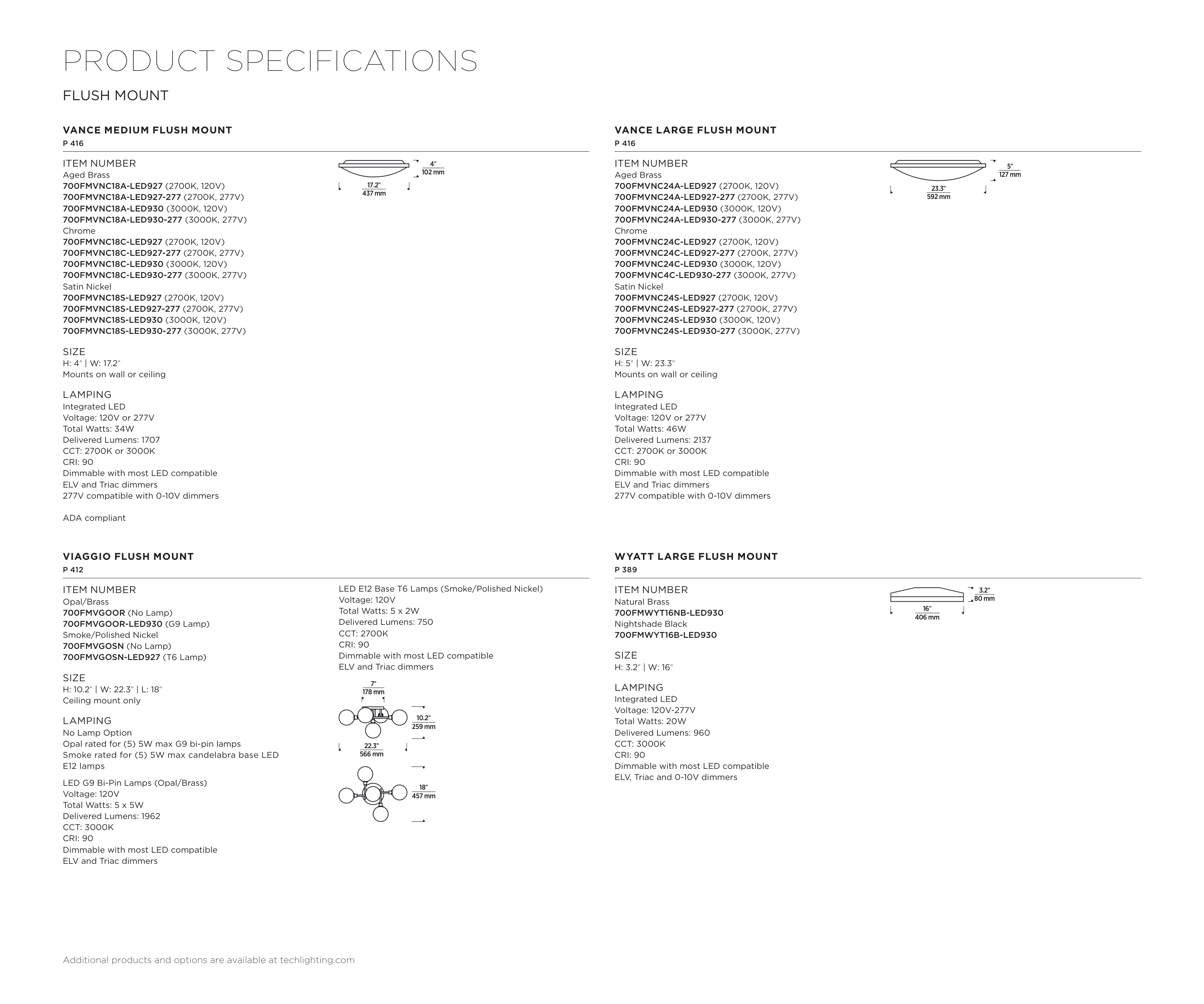

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
VANCE MEDIUM FLUSH MOUNT
P 416
ITEM NUMBER
Aged Brass
700FMVNC18A-LED927 (2700K, 120V)
700FMVNC18A-LED927-277 (2700K, 277V)
700FMVNC18A-LED930 (3000K, 120V)
700FMVNC18A-LED930-277 (3000K, 277V)
Chrome
700FMVNC18C-LED927 (2700K, 120V)
700FMVNC18C-LED927-277 (2700K, 277V)
700FMVNC18C-LED930 (3000K, 120V)
700FMVNC18C-LED930-277 (3000K, 277V)
Satin Nickel
700FMVNC18S-LED927 (2700K, 120V)
700FMVNC18S-LED927-277 (2700K, 277V)
700FMVNC18S-LED930 (3000K, 120V)
700FMVNC18S-LED930-277 (3000K, 277V)
SIZE
H: 4" | W: 17.2"
Mounts on wall or ceiling
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 34W
Delivered Lumens: 1707
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
ADA compliant
17.2"
437 mm
4"
102 mm
VANCE LARGE FLUSH MOUNT
P 416
ITEM NUMBER
Aged Brass
700FMVNC24A-LED927 (2700K, 120V)
700FMVNC24A-LED927-277 (2700K, 277V)
700FMVNC24A-LED930 (3000K, 120V)
700FMVNC24A-LED930-277 (3000K, 277V)
Chrome
700FMVNC24C-LED927 (2700K, 120V)
700FMVNC24C-LED927-277 (2700K, 277V)
700FMVNC24C-LED930 (3000K, 120V)
700FMVNC4C-LED930-277 (3000K, 277V)
Satin Nickel
700FMVNC24S-LED927 (2700K, 120V)
700FMVNC24S-LED927-277 (2700K, 277V)
700FMVNC24S-LED930 (3000K, 120V)
700FMVNC24S-LED930-277 (3000K, 277V)
SIZE
H: 5" | W: 23.3"
Mounts on wall or ceiling
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 46W
Delivered Lumens: 2137
CCT: 2700K or 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
23.3"
592 mm
5"
127 mm
FLUSH MOUNT
VIAGGIO FLUSH MOUNT
P 412
ITEM NUMBER
Opal/Brass
700FMVGOOR (No Lamp)
700FMVGOOR-LED930 (G9 Lamp)
Smoke/Polished Nickel
700FMVGOSN (No Lamp)
700FMVGOSN-LED927 (T6 Lamp)
SIZE
H: 10.2" | W: 22.3" | L: 18"
Ceiling mount only
LAMPING
No Lamp Option
Opal rated for (5) 5W max G9 bi-pin lamps
Smoke rated for (5) 5W max candelabra base LED
E12 lamps
LED G9 Bi-Pin Lamps (Opal/Brass)
Voltage: 120V
Total Watts: 5 x 5W
Delivered Lumens: 1962
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
LED E12 Base T6 Lamps (Smoke/Polished Nickel)
Voltage: 120V
Total Watts: 5 x 2W
Delivered Lumens: 750
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
22.3"
566 mm
7"
178 mm
18"
457 mm
10.2"
259 mm
WYATT LARGE FLUSH MOUNT
P 389
ITEM NUMBER
Natural Brass
700FMWYT16NB-LED930
Nightshade Black
700FMWYT16B-LED930
SIZE
H: 3.2" | W: 16"
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 20W
Delivered Lumens: 960
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
16"
406 mm
3.2"
80 mm
