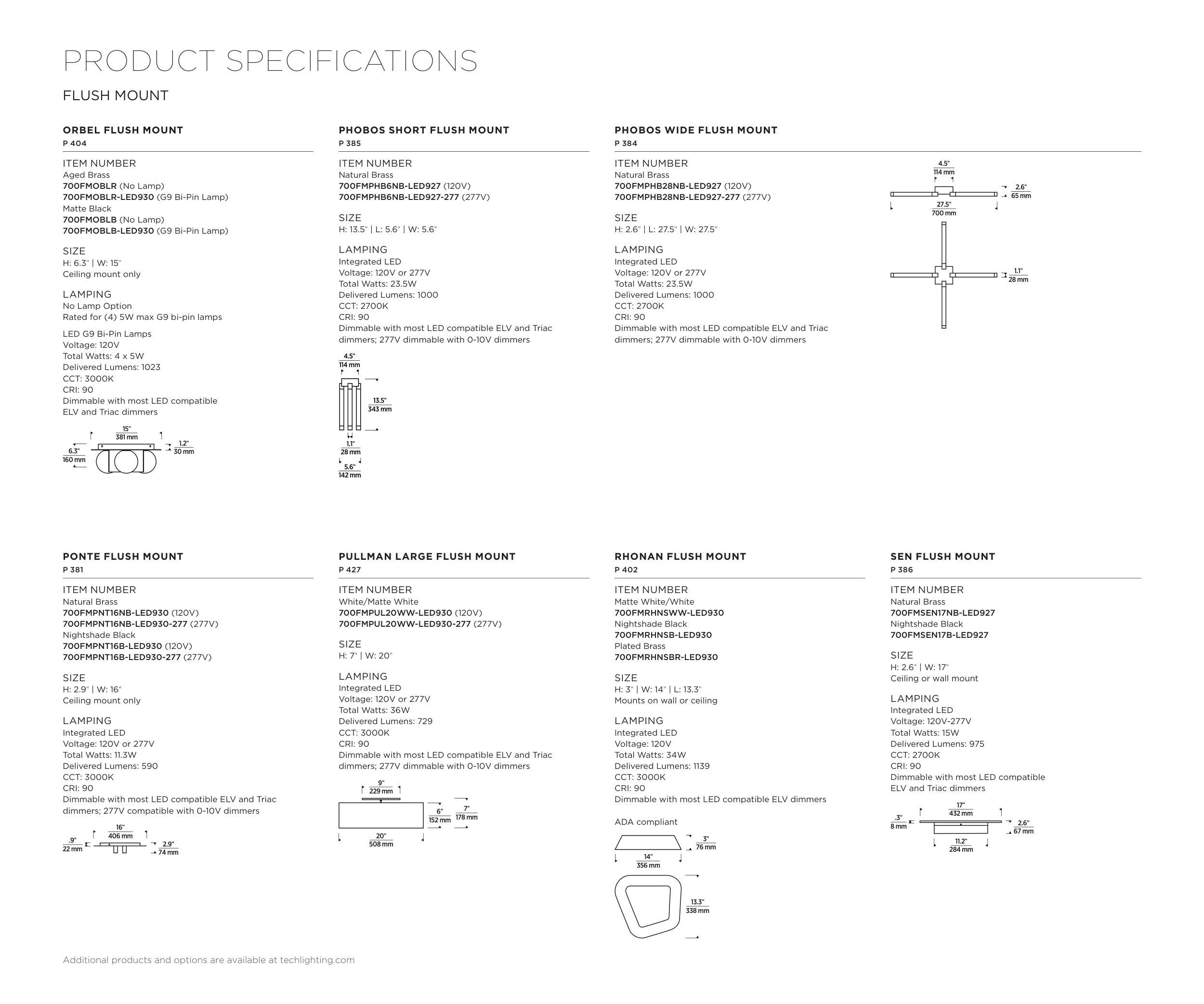

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
ORBEL FLUSH MOUNT
P 404
ITEM NUMBER
Aged Brass
700FMOBLR (No Lamp)
700FMOBLR-LED930 (G9 Bi-Pin Lamp)
Matte Black
700FMOBLB (No Lamp)
700FMOBLB-LED930 (G9 Bi-Pin Lamp)
SIZE
H: 6.3" | W: 15"
Ceiling mount only
LAMPING
No Lamp Option
Rated for (4) 5W max G9 bi-pin lamps
LED G9 Bi-Pin Lamps
Voltage: 120V
Total Watts: 4 x 5W
Delivered Lumens: 1023
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
15"
381 mm
1.2"
30 mm
6.3"
160 mm
PHOBOS SHORT FLUSH MOUNT
P 385
ITEM NUMBER
Natural Brass
700FMPHB6NB-LED927 (120V)
700FMPHB6NB-LED927-277 (277V)
SIZE
H: 13.5" | L: 5.6" | W: 5.6"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 23.5W
Delivered Lumens: 1000
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
1.1"
28 mm
4.5"
114 mm
5.6"
142 mm
13.5"
343 mm
PHOBOS WIDE FLUSH MOUNT
P 384
ITEM NUMBER
Natural Brass
700FMPHB28NB-LED927 (120V)
700FMPHB28NB-LED927-277 (277V)
SIZE
H: 2.6" | L: 27.5" | W: 27.5"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 23.5W
Delivered Lumens: 1000
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
4.5"
114 mm
27.5"
700 mm
1.1"
28 mm
2.6"
65 mm
PONTE FLUSH MOUNT
P 381
ITEM NUMBER
Natural Brass
700FMPNT16NB-LED930 (120V)
700FMPNT16NB-LED930-277 (277V)
Nightshade Black
700FMPNT16B-LED930 (120V)
700FMPNT16B-LED930-277 (277V)
SIZE
H: 2.9" | W: 16"
Ceiling mount only
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 11.3W
Delivered Lumens: 590
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V compatible with 0-10V dimmers
16"
406 mm
2.9"
74 mm
.9"
22 mm
PULLMAN LARGE FLUSH MOUNT
P 427
ITEM NUMBER
White/Matte White
700FMPUL20WW-LED930 (120V)
700FMPUL20WW-LED930-277 (277V)
SIZE
H: 7" | W: 20"
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 36W
Delivered Lumens: 729
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
20"
508 mm
9"
229 mm
6"
152 mm
7"
178 mm
RHONAN FLUSH MOUNT
P 402
ITEM NUMBER
Matte White/White
700FMRHNSWW-LED930
Nightshade Black
700FMRHNSB-LED930
Plated Brass
700FMRHNSBR-LED930
SIZE
H: 3" | W: 14" | L: 13.3"
Mounts on wall or ceiling
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 34W
Delivered Lumens: 1139
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV dimmers
ADA compliant
14"
356 mm
3"
76 mm
13.3"
338 mm
SEN FLUSH MOUNT
P 386
ITEM NUMBER
Natural Brass
700FMSEN17NB-LED927
Nightshade Black
700FMSEN17B-LED927
SIZE
H: 2.6" | W: 17"
Ceiling or wall mount
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 15W
Delivered Lumens: 975
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
17"
432 mm
11.2"
284 mm
2.6"
67 mm
.3"
8 mm
FLUSH MOUNT
