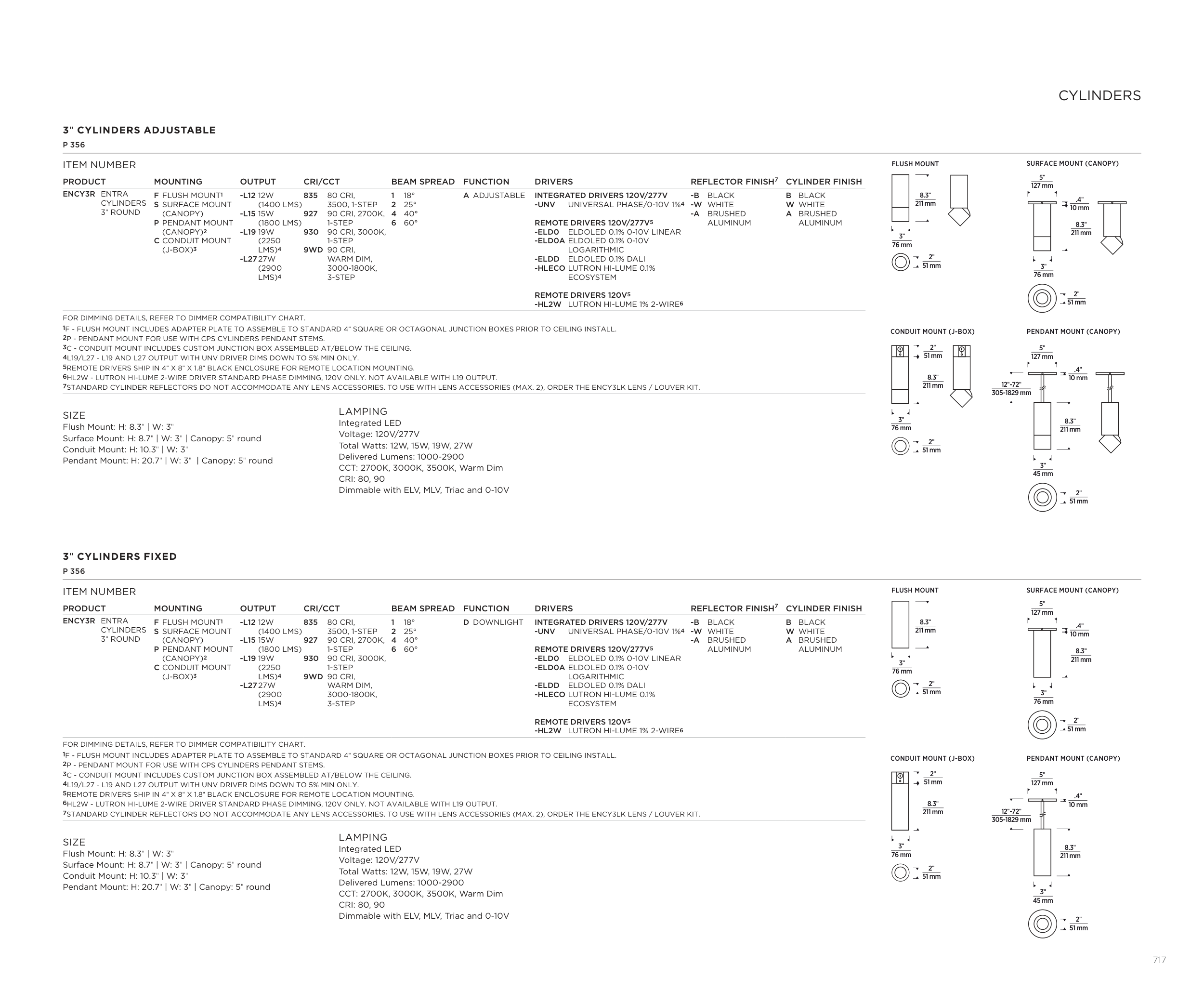

717
3" CYLINDERS ADJUSTABLE
P 356
ITEM NUMBER
PRODUCT
MOUNTING
OUTPUT
CRI/CCT
BEAM SPREAD
FUNCTION
DRIVERS
REFLECTOR FINISH7
CYLINDER FINISH
ENCY3R ENTRA
CYLINDERS
3" ROUND
F FLUSH MOUNT1
S SURFACE MOUNT
(CANOPY)
P PENDANT MOUNT
(CANOPY)2
C CONDUIT MOUNT
(J-BOX)3
-L12 12W
(1400 LMS)
-L15 15W
(1800 LMS)
-L19 19W
(2250
LMS)4
-L27 27W
(2900
LMS)4
835
80 CRI,
3500, 1-STEP
927
90 CRI, 2700K,
1-STEP
930
90 CRI, 3000K,
1-STEP
9WD 90 CRI,
WARM DIM,
3000-1800K,
3-STEP
1
18°
2 25°
4 40°
6 60°
A ADJUSTABLE
INTEGRATED DRIVERS 120V/277V
-UNV
UNIVERSAL PHASE/0-10V 1%4
REMOTE DRIVERS 120V/277V5
-ELD0
ELDOLED 0.1% 0-10V LINEAR
-ELD0A ELDOLED 0.1% 0-10V
LOGARITHMIC
-ELDD
ELDOLED 0.1% DALI
-HLECO LUTRON HI-LUME 0.1%
ECOSYSTEM
REMOTE DRIVERS 120V5
-HL2W LUTRON HI-LUME 1% 2-WIRE6
-B BLACK
-W WHITE
-A BRUSHED
ALUMINUM
B BLACK
W WHITE
A BRUSHED
ALUMINUM
FOR DIMMING DETAILS, REFER TO DIMMER COMPATIBILITY CHART.
1F - FLUSH MOUNT INCLUDES ADAPTER PLATE TO ASSEMBLE TO STANDARD 4" SQUARE OR OCTAGONAL JUNCTION BOXES PRIOR TO CEILING INSTALL.
2P - PENDANT MOUNT FOR USE WITH CPS CYLINDERS PENDANT STEMS.
3C - CONDUIT MOUNT INCLUDES CUSTOM JUNCTION BOX ASSEMBLED AT/BELOW THE CEILING.
4L19/L27 - L19 AND L27 OUTPUT WITH UNV DRIVER DIMS DOWN TO 5% MIN ONLY.
5REMOTE DRIVERS SHIP IN 4" X 8" X 1.8" BLACK ENCLOSURE FOR REMOTE LOCATION MOUNTING.
6HL2W - LUTRON HI-LUME 2-WIRE DRIVER STANDARD PHASE DIMMING, 120V ONLY. NOT AVAILABLE WITH L19 OUTPUT.
7STANDARD CYLINDER REFLECTORS DO NOT ACCOMMODATE ANY LENS ACCESSORIES. TO USE WITH LENS ACCESSORIES (MAX. 2), ORDER THE ENCY3LK LENS / LOUVER KIT.
SIZE
Flush Mount: H: 8.3" | W: 3"
Surface Mount: H: 8.7" | W: 3" | Canopy: 5" round
Conduit Mount: H: 10.3" | W: 3"
Pendant Mount: H: 20.7" | W: 3" | Canopy: 5" round
LAMPING
Integrated LED
Voltage: 120V/277V
Total Watts: 12W, 15W, 19W, 27W
Delivered Lumens: 1000-2900
CCT: 2700K, 3000K, 3500K, Warm Dim
CRI: 80, 90
Dimmable with ELV, MLV, Triac and 0-10V
FLUSH MOUNT
SURFACE MOUNT (CANOPY)
PENDANT MOUNT (CANOPY)
CONDUIT MOUNT (J-BOX)
5"
127 mm
2"
51 mm
.4"
10 mm
8.3"
211 mm
3"
76 mm
3"
76 mm
5"
127 mm
2"
51 mm
2"
51 mm
2"
51 mm
8.3"
211 mm
12"-72"
305-1829 mm
3"
45 mm
.4"
10 mm
8.3"
211 mm
3"
76 mm
2"
51 mm
8.3"
211 mm
CYLINDERS
3" CYLINDERS FIXED
P 356
ITEM NUMBER
PRODUCT
MOUNTING
OUTPUT
CRI/CCT
BEAM SPREAD
FUNCTION
DRIVERS
REFLECTOR FINISH7
CYLINDER FINISH
ENCY3R ENTRA
CYLINDERS
3" ROUND
F FLUSH MOUNT1
S SURFACE MOUNT
(CANOPY)
P PENDANT MOUNT
(CANOPY)2
C CONDUIT MOUNT
(J-BOX)3
-L12 12W
(1400 LMS)
-L15 15W
(1800 LMS)
-L19 19W
(2250
LMS)4
-L27 27W
(2900
LMS)4
835
80 CRI,
3500, 1-STEP
927
90 CRI, 2700K,
1-STEP
930
90 CRI, 3000K,
1-STEP
9WD 90 CRI,
WARM DIM,
3000-1800K,
3-STEP
1
18°
2 25°
4 40°
6 60°
D DOWNLIGHT
INTEGRATED DRIVERS 120V/277V
-UNV
UNIVERSAL PHASE/0-10V 1%4
REMOTE DRIVERS 120V/277V5
-ELD0
ELDOLED 0.1% 0-10V LINEAR
-ELD0A ELDOLED 0.1% 0-10V
LOGARITHMIC
-ELDD
ELDOLED 0.1% DALI
-HLECO LUTRON HI-LUME 0.1%
ECOSYSTEM
REMOTE DRIVERS 120V5
-HL2W LUTRON HI-LUME 1% 2-WIRE6
-B BLACK
-W WHITE
-A BRUSHED
ALUMINUM
B BLACK
W WHITE
A BRUSHED
ALUMINUM
FOR DIMMING DETAILS, REFER TO DIMMER COMPATIBILITY CHART.
1F - FLUSH MOUNT INCLUDES ADAPTER PLATE TO ASSEMBLE TO STANDARD 4" SQUARE OR OCTAGONAL JUNCTION BOXES PRIOR TO CEILING INSTALL.
2P - PENDANT MOUNT FOR USE WITH CPS CYLINDERS PENDANT STEMS.
3C - CONDUIT MOUNT INCLUDES CUSTOM JUNCTION BOX ASSEMBLED AT/BELOW THE CEILING.
4L19/L27 - L19 AND L27 OUTPUT WITH UNV DRIVER DIMS DOWN TO 5% MIN ONLY.
5REMOTE DRIVERS SHIP IN 4" X 8" X 1.8" BLACK ENCLOSURE FOR REMOTE LOCATION MOUNTING.
6HL2W - LUTRON HI-LUME 2-WIRE DRIVER STANDARD PHASE DIMMING, 120V ONLY. NOT AVAILABLE WITH L19 OUTPUT.
7STANDARD CYLINDER REFLECTORS DO NOT ACCOMMODATE ANY LENS ACCESSORIES. TO USE WITH LENS ACCESSORIES (MAX. 2), ORDER THE ENCY3LK LENS / LOUVER KIT.
SIZE
Flush Mount: H: 8.3" | W: 3"
Surface Mount: H: 8.7" | W: 3" | Canopy: 5" round
Conduit Mount: H: 10.3" | W: 3"
Pendant Mount: H: 20.7" | W: 3" | Canopy: 5" round
LAMPING
Integrated LED
Voltage: 120V/277V
Total Watts: 12W, 15W, 19W, 27W
Delivered Lumens: 1000-2900
CCT: 2700K, 3000K, 3500K, Warm Dim
CRI: 80, 90
Dimmable with ELV, MLV, Triac and 0-10V
FLUSH MOUNT
SURFACE MOUNT (CANOPY)
PENDANT MOUNT (CANOPY)
CONDUIT MOUNT (J-BOX)
5"
127 mm
2"
51 mm
.4"
10 mm
8.3"
211 mm
3"
76 mm
3"
76 mm
5"
127 mm
2"
51 mm
2"
51 mm
2"
51 mm
8.3"
211 mm
12"-72"
305-1829 mm
3"
45 mm
.4"
10 mm
8.3"
211 mm
3"
76 mm
2"
51 mm
8.3"
211 mm
