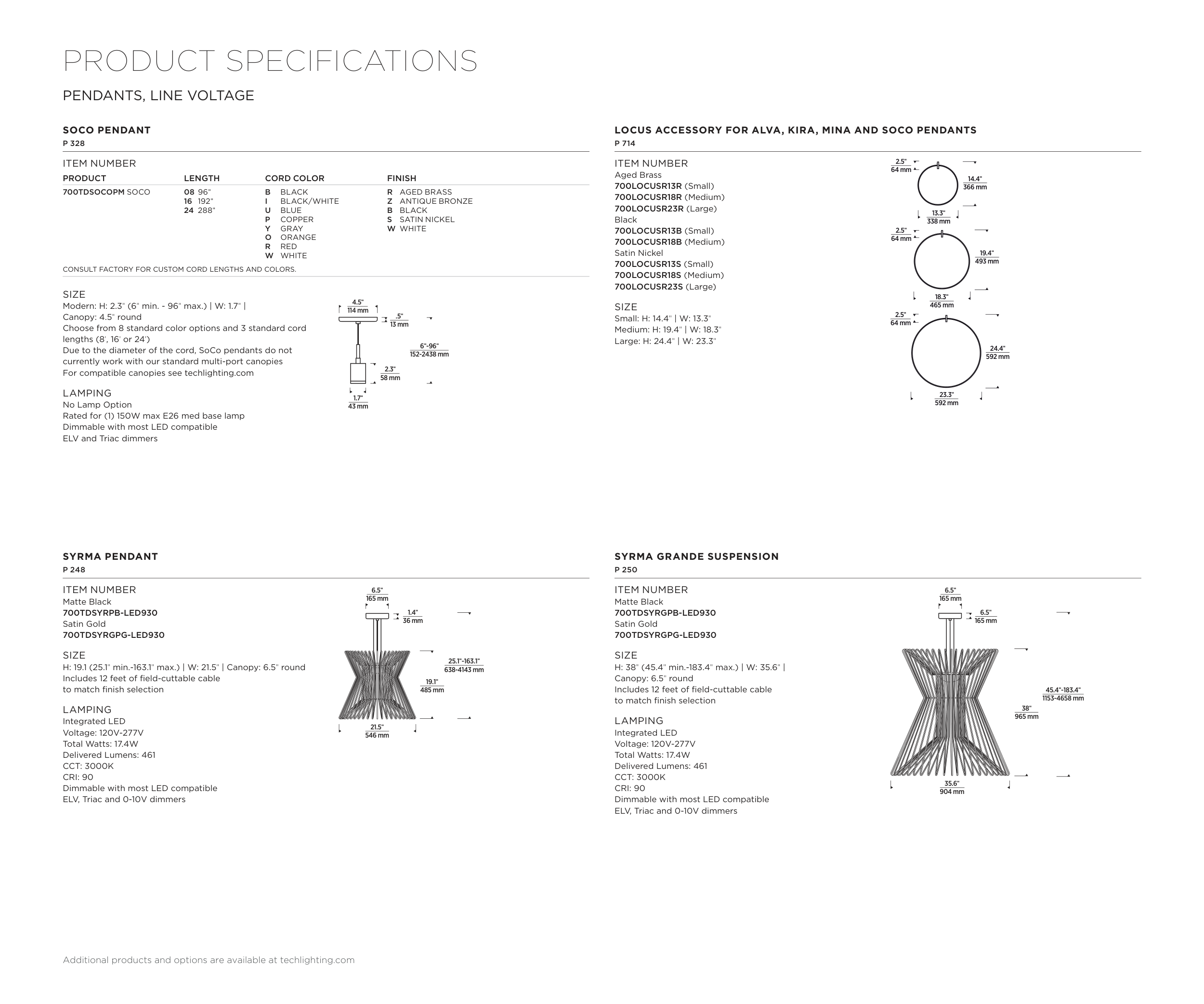

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
SOCO PENDANT
P 328
ITEM NUMBER
PRODUCT
LENGTH
CORD COLOR
FINISH
700TDSOCOPM SOCO
08 96"
16 192"
24 288"
B
BLACK
I
BLACK/WHITE
U
BLUE
P
COPPER
Y
GRAY
O
ORANGE
R
RED
W WHITE
R AGED BRASS
Z ANTIQUE BRONZE
B BLACK
S SATIN NICKEL
W WHITE
CONSULT FACTORY FOR CUSTOM CORD LENGTHS AND COLORS.
SIZE
Modern: H: 2.3" (6" min. - 96" max.) | W: 1.7" |
Canopy: 4.5" round
Choose from 8 standard color options and 3 standard cord
lengths (8', 16' or 24')
Due to the diameter of the cord, SoCo pendants do not
currently work with our standard multi-port canopies
For compatible canopies see techlighting.com
LAMPING
No Lamp Option
Rated for (1) 150W max E26 med base lamp
Dimmable with most LED compatible
ELV and Triac dimmers
4.5"
114 mm
1.7"
43 mm
2.3"
58 mm
.5"
13 mm
6"-96"
152-2438 mm
LOCUS ACCESSORY FOR ALVA, KIRA, MINA AND SOCO PENDANTS
P 714
ITEM NUMBER
Aged Brass
700LOCUSR13R (Small)
700LOCUSR18R (Medium)
700LOCUSR23R (Large)
Black
700LOCUSR13B (Small)
700LOCUSR18B (Medium)
Satin Nickel
700LOCUSR13S (Small)
700LOCUSR18S (Medium)
700LOCUSR23S (Large)
SIZE
Small: H: 14.4" | W: 13.3"
Medium: H: 19.4" | W: 18.3"
Large: H: 24.4" | W: 23.3"
23.3"
592 mm
18.3"
465 mm
13.3"
338 mm
14.4"
366 mm
19.4"
493 mm
24.4"
592 mm
2.5"
64 mm
2.5"
64 mm
2.5"
64 mm
SYRMA PENDANT
P 248
ITEM NUMBER
Matte Black
700TDSYRPB-LED930
Satin Gold
700TDSYRGPG-LED930
SIZE
H: 19.1 (25.1" min.-163.1" max.) | W: 21.5" | Canopy: 6.5" round
Includes 12 feet of field-cuttable cable
to match finish selection
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 17.4W
Delivered Lumens: 461
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
21.5"
546 mm
19.1"
485 mm
6.5"
165 mm
1.4"
36 mm
25.1"-163.1"
638-4143 mm
SYRMA GRANDE SUSPENSION
P 250
ITEM NUMBER
Matte Black
700TDSYRGPB-LED930
Satin Gold
700TDSYRGPG-LED930
SIZE
H: 38" (45.4" min.-183.4" max.) | W: 35.6" |
Canopy: 6.5" round
Includes 12 feet of field-cuttable cable
to match finish selection
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 17.4W
Delivered Lumens: 461
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
35.6"
904 mm
38"
965 mm
6.5"
165 mm
6.5"
165 mm
45.4"-183.4"
1153-4658 mm
PENDANTS, LINE VOLTAGE
