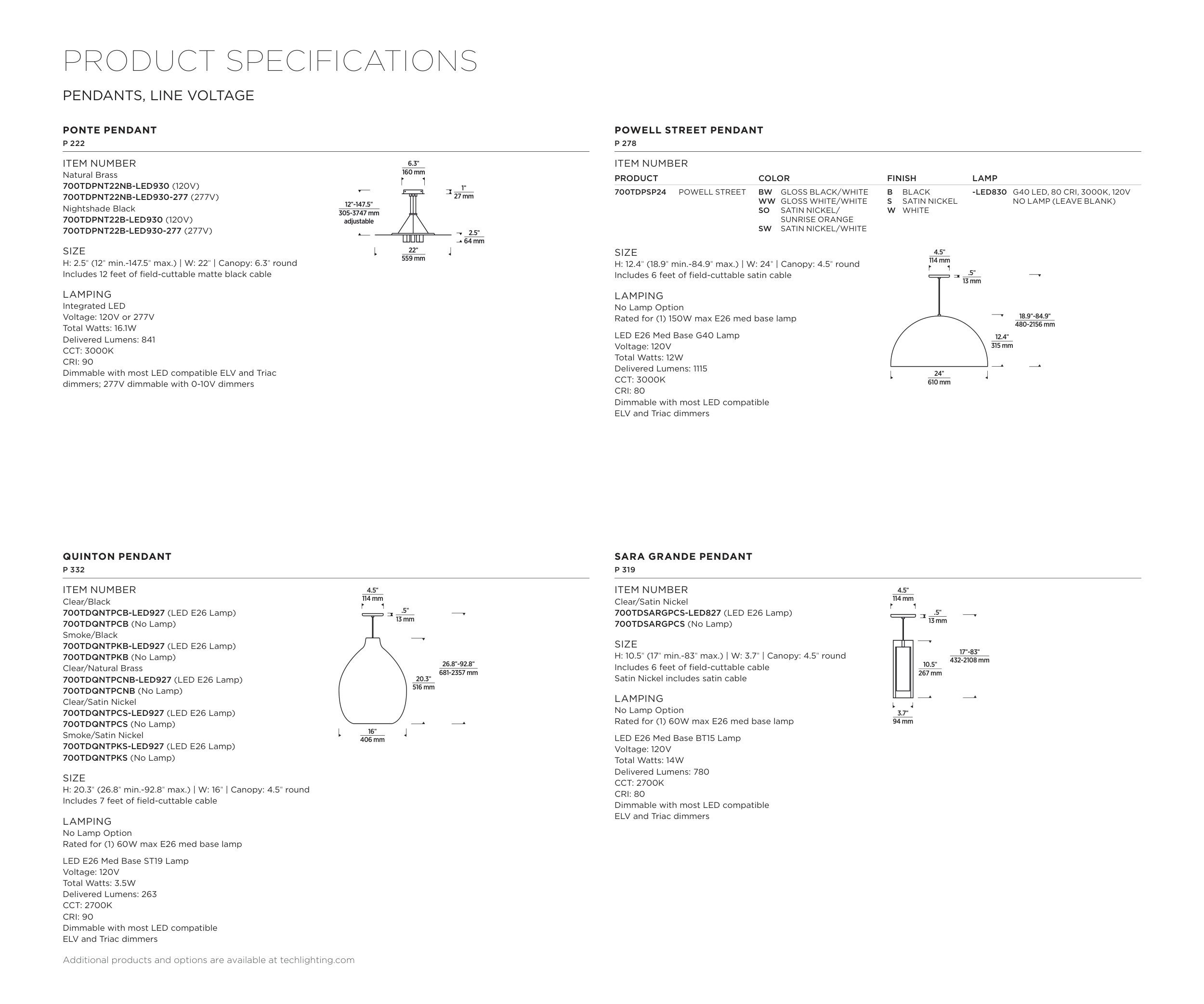

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
PONTE PENDANT
P 222
ITEM NUMBER
Natural Brass
700TDPNT22NB-LED930 (120V)
700TDPNT22NB-LED930-277 (277V)
Nightshade Black
700TDPNT22B-LED930 (120V)
700TDPNT22B-LED930-277 (277V)
SIZE
H: 2.5" (12" min.-147.5" max.) | W: 22" | Canopy: 6.3" round
Includes 12 feet of field-cuttable matte black cable
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 16.1W
Delivered Lumens: 841
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
22"
559 mm
6.3"
160 mm
12"-147.5"
305-3747 mm
adjustable
1"
27 mm
2.5"
64 mm
POWELL STREET PENDANT
P 278
ITEM NUMBER
PRODUCT
COLOR
FINISH
LAMP
700TDPSP24
POWELL STREET
BW
GLOSS BLACK/WHITE
WW GLOSS WHITE/WHITE
SO
SATIN NICKEL/
SUNRISE ORANGE
SW
SATIN NICKEL/WHITE
B
BLACK
S
SATIN NICKEL
W WHITE
-LED830 G40 LED, 80 CRI, 3000K, 120V
NO LAMP (LEAVE BLANK)
SIZE
H: 12.4" (18.9" min.-84.9" max.) | W: 24" | Canopy: 4.5" round
Includes 6 feet of field-cuttable satin cable
LAMPING
No Lamp Option
Rated for (1) 150W max E26 med base lamp
LED E26 Med Base G40 Lamp
Voltage: 120V
Total Watts: 12W
Delivered Lumens: 1115
CCT: 3000K
CRI: 80
Dimmable with most LED compatible
ELV and Triac dimmers
24"
610 mm
4.5"
114 mm
.5"
13 mm
12.4"
315 mm
18.9"-84.9"
480-2156 mm
QUINTON PENDANT
P 332
ITEM NUMBER
Clear/Black
700TDQNTPCB-LED927 (LED E26 Lamp)
700TDQNTPCB (No Lamp)
Smoke/Black
700TDQNTPKB-LED927 (LED E26 Lamp)
700TDQNTPKB (No Lamp)
Clear/Natural Brass
700TDQNTPCNB-LED927 (LED E26 Lamp)
700TDQNTPCNB (No Lamp)
Clear/Satin Nickel
700TDQNTPCS-LED927 (LED E26 Lamp)
700TDQNTPCS (No Lamp)
Smoke/Satin Nickel
700TDQNTPKS-LED927 (LED E26 Lamp)
700TDQNTPKS (No Lamp)
SIZE
H: 20.3" (26.8" min.-92.8" max.) | W: 16" | Canopy: 4.5" round
Includes 7 feet of field-cuttable cable
LAMPING
No Lamp Option
Rated for (1) 60W max E26 med base lamp
LED E26 Med Base ST19 Lamp
Voltage: 120V
Total Watts: 3.5W
Delivered Lumens: 263
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
16"
406 mm
20.3"
516 mm
4.5"
114 mm
.5"
13 mm
26.8"-92.8"
681-2357 mm
SARA GRANDE PENDANT
P 319
ITEM NUMBER
Clear/Satin Nickel
700TDSARGPCS-LED827 (LED E26 Lamp)
700TDSARGPCS (No Lamp)
SIZE
H: 10.5" (17" min.-83" max.) | W: 3.7" | Canopy: 4.5" round
Includes 6 feet of field-cuttable cable
Satin Nickel includes satin cable
LAMPING
No Lamp Option
Rated for (1) 60W max E26 med base lamp
LED E26 Med Base BT15 Lamp
Voltage: 120V
Total Watts: 14W
Delivered Lumens: 780
CCT: 2700K
CRI: 80
Dimmable with most LED compatible
ELV and Triac dimmers
3.7"
94 mm
10.5"
267 mm
.5"
13 mm
4.5"
114 mm
17"-83"
432-2108 mm
PENDANTS, LINE VOLTAGE
