703

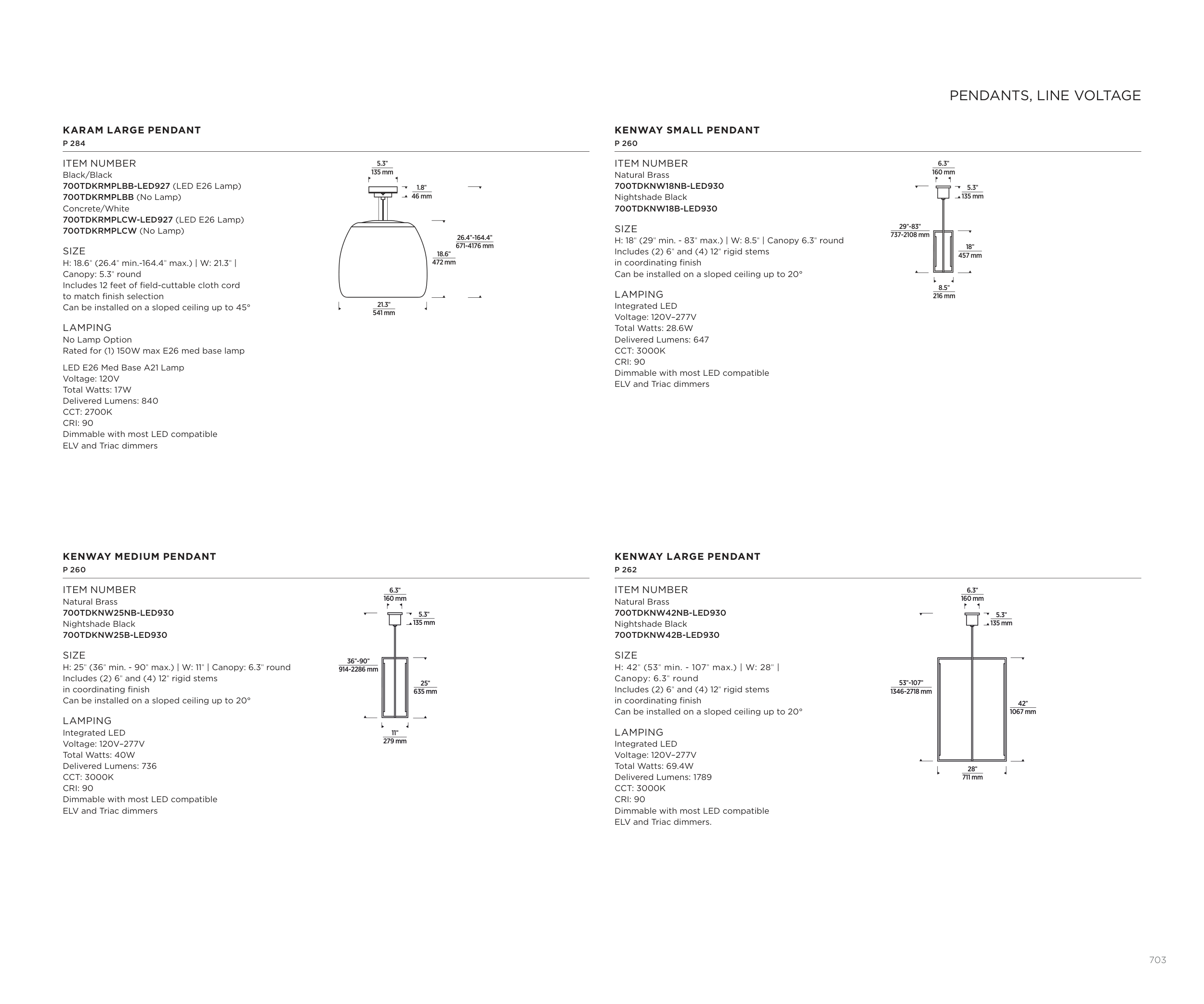

KARAM LARGE PENDANT
P 284
ITEM NUMBER
Black/Black
700TDKRMPLBB-LED927 (LED E26 Lamp)
700TDKRMPLBB (No Lamp)
Concrete/White
700TDKRMPLCW-LED927 (LED E26 Lamp)
700TDKRMPLCW (No Lamp)
SIZE
H: 18.6" (26.4" min.-164.4" max.) | W: 21.3" |
Canopy: 5.3" round
Includes 12 feet of field-cuttable cloth cord
to match finish selection
Can be installed on a sloped ceiling up to 45°
LAMPING
No Lamp Option
Rated for (1) 150W max E26 med base lamp
LED E26 Med Base A21 Lamp
Voltage: 120V
Total Watts: 17W
Delivered Lumens: 840
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
21.3"
541 mm
5.3"
135 mm
1.8"
46 mm
18.6"
472 mm
26.4"-164.4"
671-4176 mm
KENWAY SMALL PENDANT
P 260
ITEM NUMBER
Natural Brass
700TDKNW18NB-LED930
Nightshade Black
700TDKNW18B-LED930
SIZE
H: 18" (29" min. - 83" max.) | W: 8.5" | Canopy 6.3" round
Includes (2) 6" and (4) 12" rigid stems
in coordinating finish
Can be installed on a sloped ceiling up to 20°
LAMPING
Integrated LED
Voltage: 120V–277V
Total Watts: 28.6W
Delivered Lumens: 647
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
29"-83"
737-2108 mm
18"
457 mm
8.5"
216 mm
6.3"
160 mm
5.3"
135 mm
KENWAY MEDIUM PENDANT
P 260
ITEM NUMBER
Natural Brass
700TDKNW25NB-LED930
Nightshade Black
700TDKNW25B-LED930
SIZE
H: 25" (36" min. - 90" max.) | W: 11" | Canopy: 6.3" round
Includes (2) 6" and (4) 12" rigid stems
in coordinating finish
Can be installed on a sloped ceiling up to 20°
LAMPING
Integrated LED
Voltage: 120V–277V
Total Watts: 40W
Delivered Lumens: 736
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
36"-90"
914-2286 mm
11"
279 mm
25"
635 mm
6.3"
160 mm
5.3"
135 mm
KENWAY LARGE PENDANT
P 262
ITEM NUMBER
Natural Brass
700TDKNW42NB-LED930
Nightshade Black
700TDKNW42B-LED930
SIZE
H: 42" (53" min. - 107" max.) | W: 28" |
Canopy: 6.3" round
Includes (2) 6" and (4) 12" rigid stems
in coordinating finish
Can be installed on a sloped ceiling up to 20°
LAMPING
Integrated LED
Voltage: 120V–277V
Total Watts: 69.4W
Delivered Lumens: 1789
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers.
28"
711 mm
53"-107"
1346-2718 mm
42"
1067 mm
6.3"
160 mm
5.3"
135 mm
PENDANTS, LINE VOLTAGE
