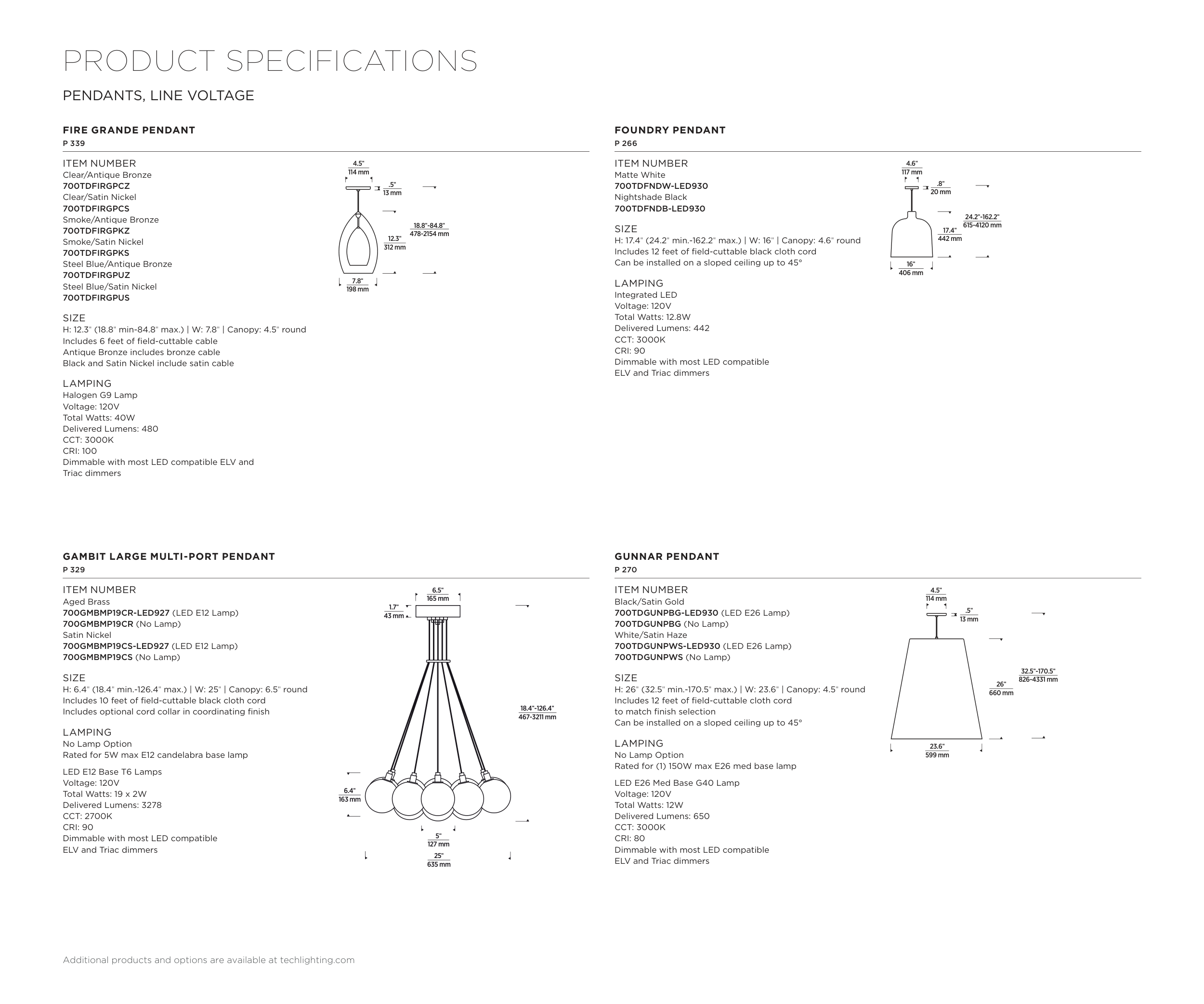

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
FIRE GRANDE PENDANT
P 339
ITEM NUMBER
Clear/Antique Bronze
700TDFIRGPCZ
Clear/Satin Nickel
700TDFIRGPCS
Smoke/Antique Bronze
700TDFIRGPKZ
Smoke/Satin Nickel
700TDFIRGPKS
Steel Blue/Antique Bronze
700TDFIRGPUZ
Steel Blue/Satin Nickel
700TDFIRGPUS
SIZE
H: 12.3" (18.8" min-84.8" max.) | W: 7.8" | Canopy: 4.5" round
Includes 6 feet of field-cuttable cable
Antique Bronze includes bronze cable
Black and Satin Nickel include satin cable
LAMPING
Halogen G9 Lamp
Voltage: 120V
Total Watts: 40W
Delivered Lumens: 480
CCT: 3000K
CRI: 100
Dimmable with most LED compatible ELV and
Triac dimmers
4.5"
114 mm
12.3"
312 mm
7.8"
198 mm
.5"
13 mm
18.8"-84.8"
478-2154 mm
FOUNDRY PENDANT
P 266
ITEM NUMBER
Matte White
700TDFNDW-LED930
Nightshade Black
700TDFNDB-LED930
SIZE
H: 17.4" (24.2" min.-162.2" max.) | W: 16" | Canopy: 4.6" round
Includes 12 feet of field-cuttable black cloth cord
Can be installed on a sloped ceiling up to 45°
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 12.8W
Delivered Lumens: 442
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
16"
406 mm
17.4"
442 mm
4.6"
117 mm
.8"
20 mm
24.2"-162.2"
615-4120 mm
GAMBIT LARGE MULTI-PORT PENDANT
P 329
ITEM NUMBER
Aged Brass
700GMBMP19CR-LED927 (LED E12 Lamp)
700GMBMP19CR (No Lamp)
Satin Nickel
700GMBMP19CS-LED927 (LED E12 Lamp)
700GMBMP19CS (No Lamp)
SIZE
H: 6.4" (18.4" min.-126.4" max.) | W: 25" | Canopy: 6.5" round
Includes 10 feet of field-cuttable black cloth cord
Includes optional cord collar in coordinating finish
LAMPING
No Lamp Option
Rated for 5W max E12 candelabra base lamp
LED E12 Base T6 Lamps
Voltage: 120V
Total Watts: 19 x 2W
Delivered Lumens: 3278
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
25"
635 mm
18.4"-126.4"
467-3211 mm
6.4"
163 mm
5"
127 mm
6.5"
165 mm
1.7"
43 mm
GUNNAR PENDANT
P 270
ITEM NUMBER
Black/Satin Gold
700TDGUNPBG-LED930 (LED E26 Lamp)
700TDGUNPBG (No Lamp)
White/Satin Haze
700TDGUNPWS-LED930 (LED E26 Lamp)
700TDGUNPWS (No Lamp)
SIZE
H: 26" (32.5" min.-170.5" max.) | W: 23.6" | Canopy: 4.5" round
Includes 12 feet of field-cuttable cloth cord
to match finish selection
Can be installed on a sloped ceiling up to 45°
LAMPING
No Lamp Option
Rated for (1) 150W max E26 med base lamp
LED E26 Med Base G40 Lamp
Voltage: 120V
Total Watts: 12W
Delivered Lumens: 650
CCT: 3000K
CRI: 80
Dimmable with most LED compatible
ELV and Triac dimmers
23.6"
599 mm
26"
660 mm
4.5"
114 mm
.5"
13 mm
32.5"-170.5"
826-4331 mm
PENDANTS, LINE VOLTAGE
