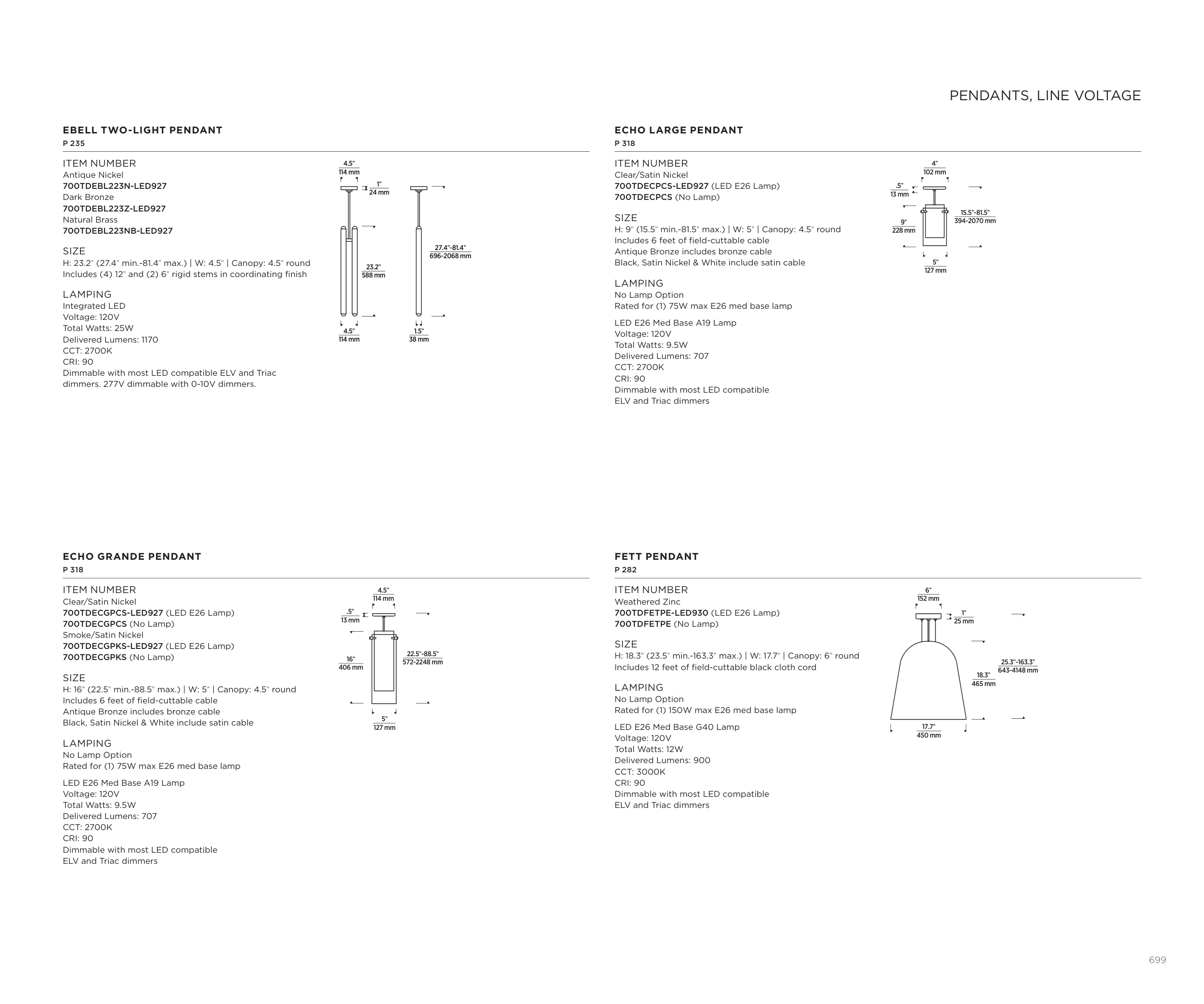

699
EBELL TWO-LIGHT PENDANT
P 235
ITEM NUMBER
Antique Nickel
700TDEBL223N-LED927
Dark Bronze
700TDEBL223Z-LED927
Natural Brass
700TDEBL223NB-LED927
SIZE
H: 23.2" (27.4" min.-81.4" max.) | W: 4.5" | Canopy: 4.5" round
Includes (4) 12" and (2) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 25W
Delivered Lumens: 1170
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers. 277V dimmable with 0-10V dimmers.
23.2"
588 mm
1"
24 mm
4.5"
114 mm
4.5"
114 mm
1.5"
38 mm
27.4"-81.4"
696-2068 mm
ECHO LARGE PENDANT
P 318
ITEM NUMBER
Clear/Satin Nickel
700TDECPCS-LED927 (LED E26 Lamp)
700TDECPCS (No Lamp)
SIZE
H: 9" (15.5" min.-81.5" max.) | W: 5" | Canopy: 4.5" round
Includes 6 feet of field-cuttable cable
Antique Bronze includes bronze cable
Black, Satin Nickel & White include satin cable
LAMPING
No Lamp Option
Rated for (1) 75W max E26 med base lamp
LED E26 Med Base A19 Lamp
Voltage: 120V
Total Watts: 9.5W
Delivered Lumens: 707
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
5"
127 mm
9"
228 mm
4"
102 mm
.5"
13 mm
15.5"-81.5"
394-2070 mm
ECHO GRANDE PENDANT
P 318
ITEM NUMBER
Clear/Satin Nickel
700TDECGPCS-LED927 (LED E26 Lamp)
700TDECGPCS (No Lamp)
Smoke/Satin Nickel
700TDECGPKS-LED927 (LED E26 Lamp)
700TDECGPKS (No Lamp)
SIZE
H: 16" (22.5" min.-88.5" max.) | W: 5" | Canopy: 4.5" round
Includes 6 feet of field-cuttable cable
Antique Bronze includes bronze cable
Black, Satin Nickel & White include satin cable
LAMPING
No Lamp Option
Rated for (1) 75W max E26 med base lamp
LED E26 Med Base A19 Lamp
Voltage: 120V
Total Watts: 9.5W
Delivered Lumens: 707
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
5"
127 mm
4.5"
114 mm
16"
406 mm
.5"
13 mm
22.5"-88.5"
572-2248 mm
FETT PENDANT
P 282
ITEM NUMBER
Weathered Zinc
700TDFETPE-LED930 (LED E26 Lamp)
700TDFETPE (No Lamp)
SIZE
H: 18.3" (23.5" min.-163.3" max.) | W: 17.7" | Canopy: 6" round
Includes 12 feet of field-cuttable black cloth cord
LAMPING
No Lamp Option
Rated for (1) 150W max E26 med base lamp
LED E26 Med Base G40 Lamp
Voltage: 120V
Total Watts: 12W
Delivered Lumens: 900
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
17.7"
450 mm
18.3"
465 mm
6"
152 mm
1"
25 mm
25.3"-163.3"
643-4148 mm
PENDANTS, LINE VOLTAGE
