697

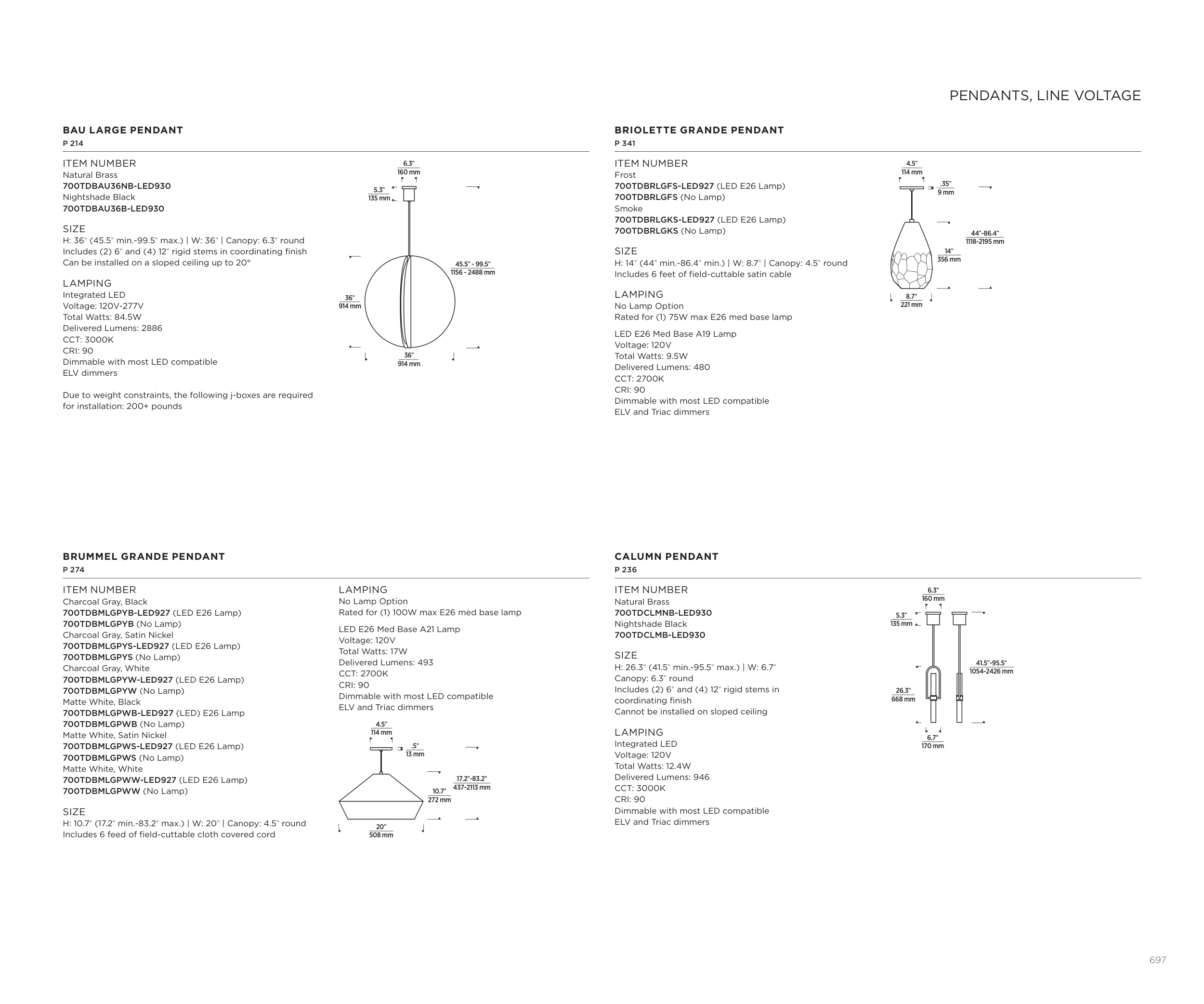

BAU LARGE PENDANT
P 214
ITEM NUMBER
Natural Brass
700TDBAU36NB-LED930
Nightshade Black
700TDBAU36B-LED930
SIZE
H: 36" (45.5" min.-99.5" max.) | W: 36" | Canopy: 6.3" round
Includes (2) 6" and (4) 12" rigid stems in coordinating finish
Can be installed on a sloped ceiling up to 20°
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 84.5W
Delivered Lumens: 2886
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV dimmers
Due to weight constraints, the following j-boxes are required
for installation: 200+ pounds
6.3"
160 mm
5.3"
135 mm
36"
914 mm
36"
914 mm
45.5" - 99.5"
1156 - 2488 mm
BRIOLETTE GRANDE PENDANT
P 341
ITEM NUMBER
Frost
700TDBRLGFS-LED927 (LED E26 Lamp)
700TDBRLGFS (No Lamp)
Smoke
700TDBRLGKS-LED927 (LED E26 Lamp)
700TDBRLGKS (No Lamp)
SIZE
H: 14" (44" min.-86.4" min.) | W: 8.7" | Canopy: 4.5" round
Includes 6 feet of field-cuttable satin cable
LAMPING
No Lamp Option
Rated for (1) 75W max E26 med base lamp
LED E26 Med Base A19 Lamp
Voltage: 120V
Total Watts: 9.5W
Delivered Lumens: 480
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
8.7"
221 mm
14"
356 mm
4.5"
114 mm
.35"
9 mm
44"-86.4"
1118-2195 mm
BRUMMEL GRANDE PENDANT
P 274
ITEM NUMBER
Charcoal Gray, Black
700TDBMLGPYB-LED927 (LED E26 Lamp)
700TDBMLGPYB (No Lamp)
Charcoal Gray, Satin Nickel
700TDBMLGPYS-LED927 (LED E26 Lamp)
700TDBMLGPYS (No Lamp)
Charcoal Gray, White
700TDBMLGPYW-LED927 (LED E26 Lamp)
700TDBMLGPYW (No Lamp)
Matte White, Black
700TDBMLGPWB-LED927 (LED) E26 Lamp
700TDBMLGPWB (No Lamp)
Matte White, Satin Nickel
700TDBMLGPWS-LED927 (LED E26 Lamp)
700TDBMLGPWS (No Lamp)
Matte White, White
700TDBMLGPWW-LED927 (LED E26 Lamp)
700TDBMLGPWW (No Lamp)
SIZE
H: 10.7" (17.2" min.-83.2" max.) | W: 20" | Canopy: 4.5" round
Includes 6 feed of field-cuttable cloth covered cord
LAMPING
No Lamp Option
Rated for (1) 100W max E26 med base lamp
LED E26 Med Base A21 Lamp
Voltage: 120V
Total Watts: 17W
Delivered Lumens: 493
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
20"
508 mm
10.7"
272 mm
4.5"
114 mm
.5"
13 mm
17.2"-83.2"
437-2113 mm
CALUMN PENDANT
P 236
ITEM NUMBER
Natural Brass
700TDCLMNB-LED930
Nightshade Black
700TDCLMB-LED930
SIZE
H: 26.3" (41.5" min.-95.5" max.) | W: 6.7"
Canopy: 6.3" round
Includes (2) 6" and (4) 12" rigid stems in
coordinating finish
Cannot be installed on sloped ceiling
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 12.4W
Delivered Lumens: 946
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
41.5"-95.5"
1054-2426 mm
6.7"
170 mm
26.3"
668 mm
6.3"
160 mm
5.3"
135 mm
PENDANTS, LINE VOLTAGE
