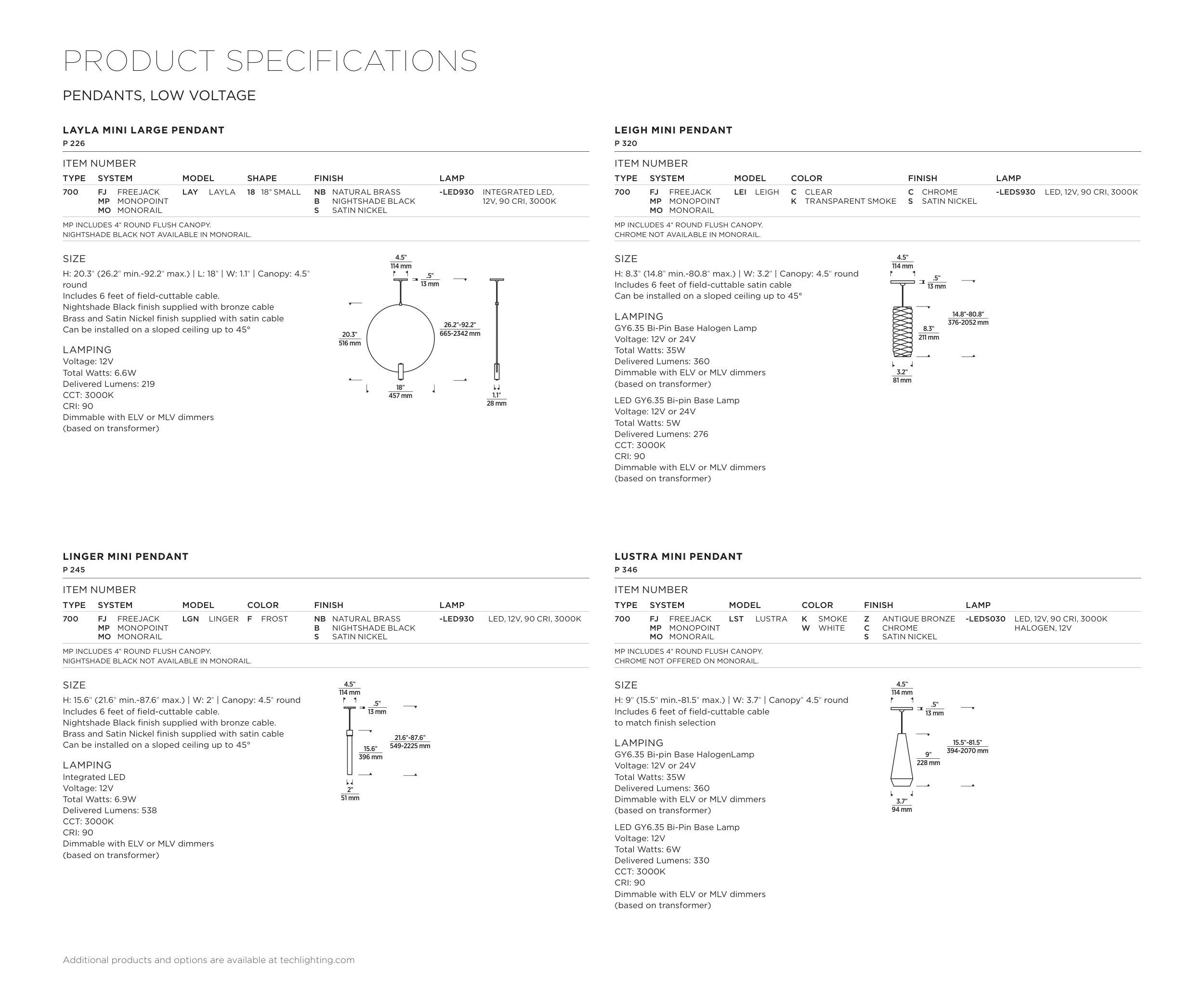

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
LAYLA MINI LARGE PENDANT
P 226
ITEM NUMBER
TYPE
SYSTEM
MODEL
SHAPE
FINISH
LAMP
700
FJ
FREEJACK
MP MONOPOINT
MO MONORAIL
LAY
LAYLA
18 18" SMALL
NB NATURAL BRASS
B
NIGHTSHADE BLACK
S
SATIN NICKEL
-LED930
INTEGRATED LED,
12V, 90 CRI, 3000K
MP INCLUDES 4" ROUND FLUSH CANOPY.
NIGHTSHADE BLACK NOT AVAILABLE IN MONORAIL.
SIZE
H: 20.3" (26.2" min.-92.2" max.) | L: 18" | W: 1.1" | Canopy: 4.5"
round
Includes 6 feet of field-cuttable cable.
Nightshade Black finish supplied with bronze cable
Brass and Satin Nickel finish supplied with satin cable
Can be installed on a sloped ceiling up to 45°
LAMPING
Voltage: 12V
Total Watts: 6.6W
Delivered Lumens: 219
CCT: 3000K
CRI: 90
Dimmable with ELV or MLV dimmers
(based on transformer)
18"
457 mm
20.3"
516 mm
1.1"
28 mm
4.5"
114 mm
.5"
13 mm
26.2"-92.2"
665-2342 mm
LEIGH MINI PENDANT
P 320
ITEM NUMBER
TYPE
SYSTEM
MODEL
COLOR
FINISH
LAMP
700
FJ
FREEJACK
MP MONOPOINT
MO MONORAIL
LEI
LEIGH
C
CLEAR
K
TRANSPARENT SMOKE
C
CHROME
S
SATIN NICKEL
-LEDS930 LED, 12V, 90 CRI, 3000K
MP INCLUDES 4" ROUND FLUSH CANOPY.
CHROME NOT AVAILABLE IN MONORAIL.
SIZE
H: 8.3" (14.8" min.-80.8" max.) | W: 3.2" | Canopy: 4.5" round
Includes 6 feet of field-cuttable satin cable
Can be installed on a sloped ceiling up to 45°
LAMPING
GY6.35 Bi-Pin Base Halogen Lamp
Voltage: 12V or 24V
Total Watts: 35W
Delivered Lumens: 360
Dimmable with ELV or MLV dimmers
(based on transformer)
LED GY6.35 Bi-pin Base Lamp
Voltage: 12V or 24V
Total Watts: 5W
Delivered Lumens: 276
CCT: 3000K
CRI: 90
Dimmable with ELV or MLV dimmers
(based on transformer)
8.3"
211 mm
3.2"
81 mm
4.5"
114 mm
.5"
13 mm
14.8"-80.8"
376-2052 mm
LINGER MINI PENDANT
P 245
ITEM NUMBER
TYPE
SYSTEM
MODEL
COLOR
FINISH
LAMP
700
FJ
FREEJACK
MP MONOPOINT
MO MONORAIL
LGN
LINGER
F
FROST
NB NATURAL BRASS
B
NIGHTSHADE BLACK
S
SATIN NICKEL
-LED930
LED, 12V, 90 CRI, 3000K
MP INCLUDES 4" ROUND FLUSH CANOPY.
NIGHTSHADE BLACK NOT AVAILABLE IN MONORAIL.
SIZE
H: 15.6" (21.6" min.-87.6" max.) | W: 2" | Canopy: 4.5" round
Includes 6 feet of field-cuttable cable.
Nightshade Black finish supplied with bronze cable.
Brass and Satin Nickel finish supplied with satin cable
Can be installed on a sloped ceiling up to 45°
LAMPING
Integrated LED
Voltage: 12V
Total Watts: 6.9W
Delivered Lumens: 538
CCT: 3000K
CRI: 90
Dimmable with ELV or MLV dimmers
(based on transformer)
15.6"
396 mm
2"
51 mm
4.5"
114 mm
.5"
13 mm
21.6"-87.6"
549-2225 mm
LUSTRA MINI PENDANT
P 346
ITEM NUMBER
TYPE
SYSTEM
MODEL
COLOR
FINISH
LAMP
700
FJ
FREEJACK
MP MONOPOINT
MO MONORAIL
LST
LUSTRA
K
SMOKE
W WHITE
Z
ANTIQUE BRONZE
C
CHROME
S
SATIN NICKEL
-LEDS030 LED, 12V, 90 CRI, 3000K
HALOGEN, 12V
MP INCLUDES 4" ROUND FLUSH CANOPY.
CHROME NOT OFFERED ON MONORAIL.
SIZE
H: 9" (15.5" min.-81.5" max.) | W: 3.7" | Canopy" 4.5" round
Includes 6 feet of field-cuttable cable
to match finish selection
LAMPING
GY6.35 Bi-pin Base HalogenLamp
Voltage: 12V or 24V
Total Watts: 35W
Delivered Lumens: 360
Dimmable with ELV or MLV dimmers
(based on transformer)
LED GY6.35 Bi-Pin Base Lamp
Voltage: 12V
Total Watts: 6W
Delivered Lumens: 330
CCT: 3000K
CRI: 90
Dimmable with ELV or MLV dimmers
(based on transformer)
9"
228 mm
3.7"
94 mm
4.5"
114 mm
.5"
13 mm
15.5"-81.5"
394-2070 mm
PENDANTS, LOW VOLTAGE
