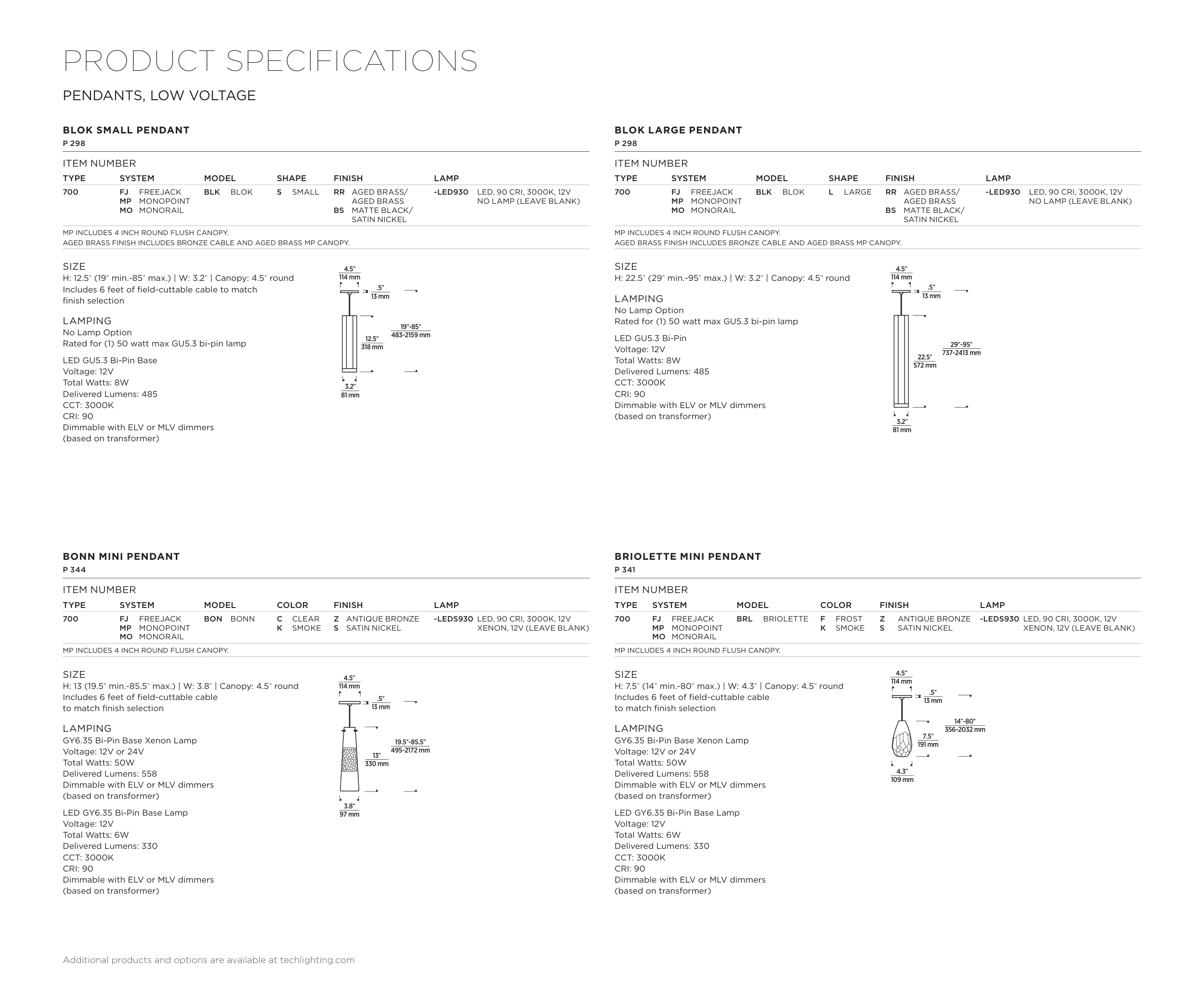

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
BLOK SMALL PENDANT
P 298
ITEM NUMBER
TYPE
SYSTEM
MODEL
SHAPE
FINISH
LAMP
700
FJ
FREEJACK
MP MONOPOINT
MO MONORAIL
BLK
BLOK
S
SMALL
RR AGED BRASS/
AGED BRASS
BS MATTE BLACK/
SATIN NICKEL
-LED930
LED, 90 CRI, 3000K, 12V
NO LAMP (LEAVE BLANK)
MP INCLUDES 4 INCH ROUND FLUSH CANOPY.
AGED BRASS FINISH INCLUDES BRONZE CABLE AND AGED BRASS MP CANOPY.
SIZE
H: 12.5" (19" min.-85" max.) | W: 3.2" | Canopy: 4.5" round
Includes 6 feet of field-cuttable cable to match
finish selection
LAMPING
No Lamp Option
Rated for (1) 50 watt max GU5.3 bi-pin lamp
LED GU5.3 Bi-Pin Base
Voltage: 12V
Total Watts: 8W
Delivered Lumens: 485
CCT: 3000K
CRI: 90
Dimmable with ELV or MLV dimmers
(based on transformer)
3.2"
81 mm
12.5"
318 mm
4.5"
114 mm
.5"
13 mm
19"-85"
483-2159 mm
BLOK LARGE PENDANT
P 298
ITEM NUMBER
TYPE
SYSTEM
MODEL
SHAPE
FINISH
LAMP
700
FJ
FREEJACK
MP MONOPOINT
MO MONORAIL
BLK
BLOK
L
LARGE
RR AGED BRASS/
AGED BRASS
BS MATTE BLACK/
SATIN NICKEL
-LED930
LED, 90 CRI, 3000K, 12V
NO LAMP (LEAVE BLANK)
MP INCLUDES 4 INCH ROUND FLUSH CANOPY.
AGED BRASS FINISH INCLUDES BRONZE CABLE AND AGED BRASS MP CANOPY.
SIZE
H: 22.5" (29" min.-95" max.) | W: 3.2" | Canopy: 4.5" round
LAMPING
No Lamp Option
Rated for (1) 50 watt max GU5.3 bi-pin lamp
LED GU5.3 Bi-Pin
Voltage: 12V
Total Watts: 8W
Delivered Lumens: 485
CCT: 3000K
CRI: 90
Dimmable with ELV or MLV dimmers
(based on transformer)
3.2"
81 mm
22.5"
572 mm
4.5"
114 mm
.5"
13 mm
29"-95"
737-2413 mm
BONN MINI PENDANT
P 344
ITEM NUMBER
TYPE
SYSTEM
MODEL
COLOR
FINISH
LAMP
700
FJ
FREEJACK
MP MONOPOINT
MO MONORAIL
BON
BONN
C
CLEAR
K
SMOKE
Z ANTIQUE BRONZE
S SATIN NICKEL
-LEDS930 LED, 90 CRI, 3000K, 12V
XENON, 12V (LEAVE BLANK)
MP INCLUDES 4 INCH ROUND FLUSH CANOPY.
SIZE
H: 13 (19.5" min.-85.5" max.) | W: 3.8" | Canopy: 4.5" round
Includes 6 feet of field-cuttable cable
to match finish selection
LAMPING
GY6.35 Bi-Pin Base Xenon Lamp
Voltage: 12V or 24V
Total Watts: 50W
Delivered Lumens: 558
Dimmable with ELV or MLV dimmers
(based on transformer)
LED GY6.35 Bi-Pin Base Lamp
Voltage: 12V
Total Watts: 6W
Delivered Lumens: 330
CCT: 3000K
CRI: 90
Dimmable with ELV or MLV dimmers
(based on transformer)
3.8"
97 mm
13"
330 mm
4.5"
114 mm
19.5"-85.5"
495-2172 mm
.5"
13 mm
BRIOLETTE MINI PENDANT
P 341
ITEM NUMBER
TYPE
SYSTEM
MODEL
COLOR
FINISH
LAMP
700
FJ
FREEJACK
MP MONOPOINT
MO MONORAIL
BRL
BRIOLETTE
F
FROST
K
SMOKE
Z
ANTIQUE BRONZE
S
SATIN NICKEL
-LEDS930 LED, 90 CRI, 3000K, 12V
XENON, 12V (LEAVE BLANK)
MP INCLUDES 4 INCH ROUND FLUSH CANOPY.
SIZE
H: 7.5" (14" min.-80" max.) | W: 4.3" | Canopy: 4.5" round
Includes 6 feet of field-cuttable cable
to match finish selection
LAMPING
GY6.35 Bi-Pin Base Xenon Lamp
Voltage: 12V or 24V
Total Watts: 50W
Delivered Lumens: 558
Dimmable with ELV or MLV dimmers
(based on transformer)
LED GY6.35 Bi-Pin Base Lamp
Voltage: 12V
Total Watts: 6W
Delivered Lumens: 330
CCT: 3000K
CRI: 90
Dimmable with ELV or MLV dimmers
(based on transformer)
4.3"
109 mm
7.5"
191 mm
4.5"
114 mm
.5"
13 mm
14"-80"
356-2032 mm
PENDANTS, LOW VOLTAGE
