681

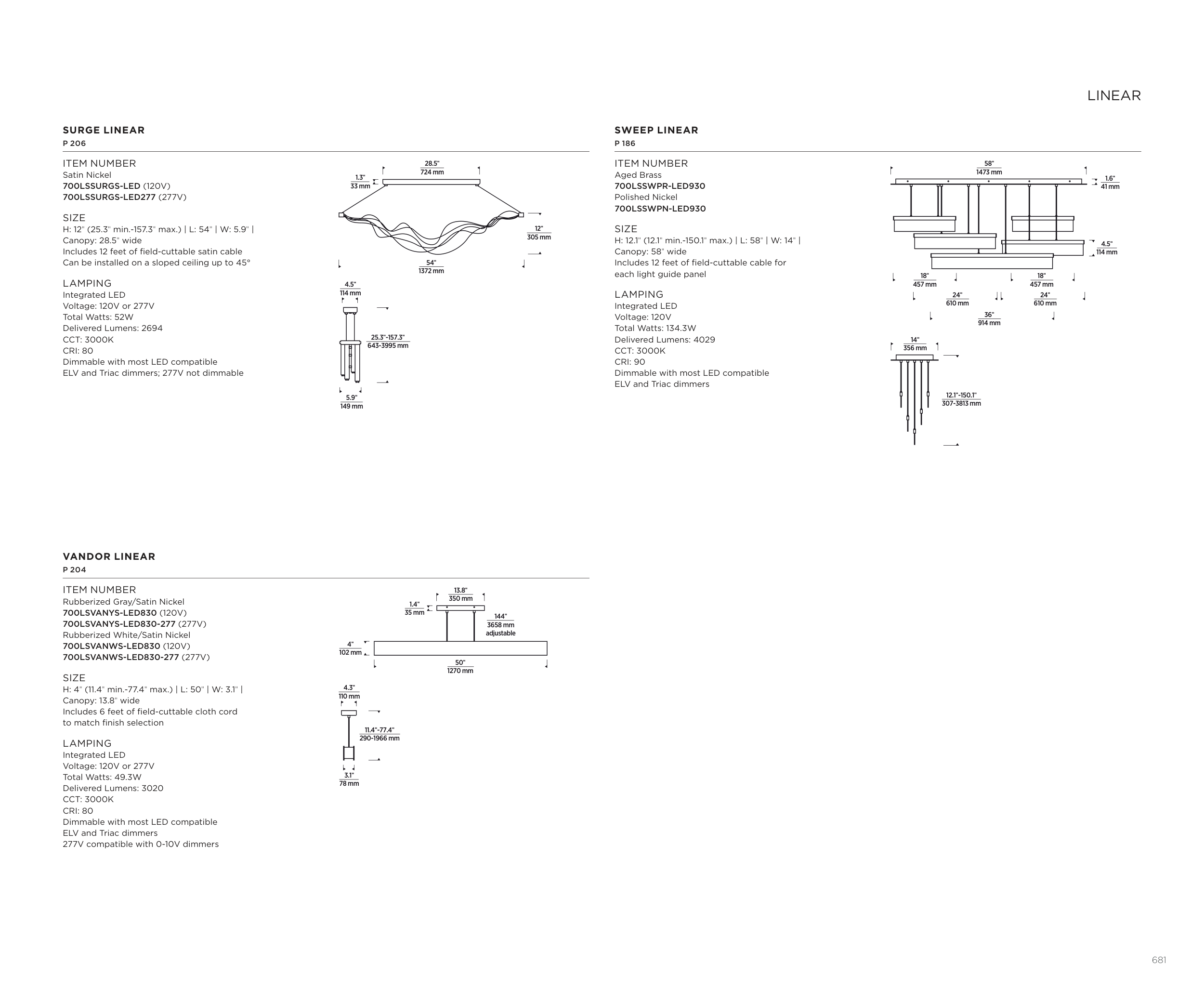

SURGE LINEAR
P 206
ITEM NUMBER
Satin Nickel
700LSSURGS-LED (120V)
700LSSURGS-LED277 (277V)
SIZE
H: 12" (25.3" min.-157.3" max.) | L: 54" | W: 5.9" |
Canopy: 28.5" wide
Includes 12 feet of field-cuttable satin cable
Can be installed on a sloped ceiling up to 45°
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 52W
Delivered Lumens: 2694
CCT: 3000K
CRI: 80
Dimmable with most LED compatible
ELV and Triac dimmers; 277V not dimmable
54"
1372 mm
28.5"
724 mm
12"
305 mm
5.9"
149 mm
4.5"
114 mm
1.3"
33 mm
25.3"-157.3"
643-3995 mm
SWEEP LINEAR
P 186
ITEM NUMBER
Aged Brass
700LSSWPR-LED930
Polished Nickel
700LSSWPN-LED930
SIZE
H: 12.1" (12.1" min.-150.1" max.) | L: 58" | W: 14" |
Canopy: 58" wide
Includes 12 feet of field-cuttable cable for
each light guide panel
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 134.3W
Delivered Lumens: 4029
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
36"
914 mm
24"
610 mm
58"
1473 mm
1.6"
41 mm
14"
356 mm
4.5"
114 mm
24"
610 mm
18"
457 mm
18"
457 mm
12.1"-150.1"
307-3813 mm
VANDOR LINEAR
P 204
ITEM NUMBER
Rubberized Gray/Satin Nickel
700LSVANYS-LED830 (120V)
700LSVANYS-LED830-277 (277V)
Rubberized White/Satin Nickel
700LSVANWS-LED830 (120V)
700LSVANWS-LED830-277 (277V)
SIZE
H: 4" (11.4" min.-77.4" max.) | L: 50" | W: 3.1" |
Canopy: 13.8" wide
Includes 6 feet of field-cuttable cloth cord
to match finish selection
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 49.3W
Delivered Lumens: 3020
CCT: 3000K
CRI: 80
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
50"
1270 mm
13.8"
350 mm
144"
3658 mm
adjustable
3.1"
78 mm
4.3"
110 mm
4"
102 mm
1.4"
35 mm
11.4"-77.4"
290-1966 mm
LINEAR
