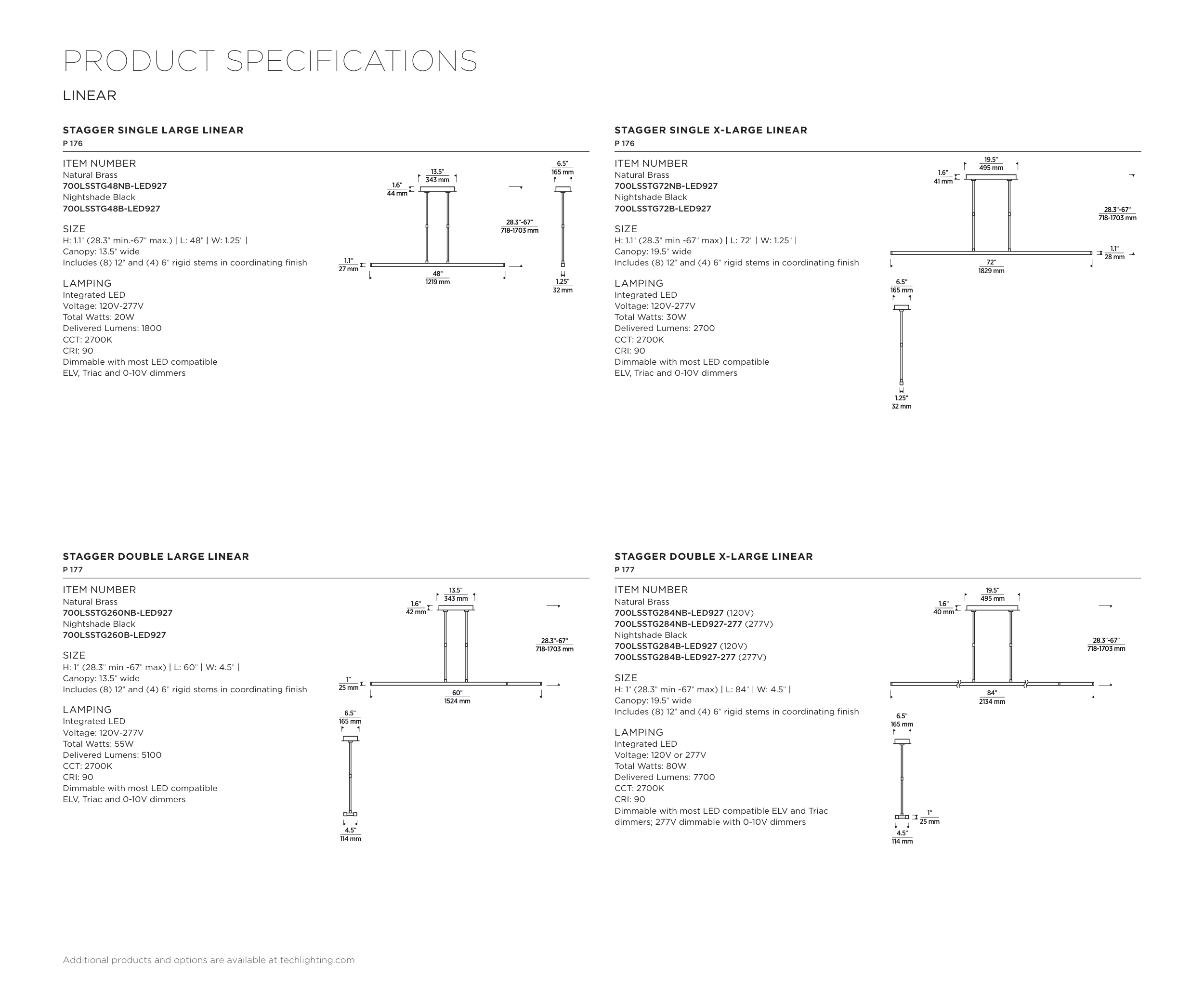

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
STAGGER SINGLE LARGE LINEAR
P 176
ITEM NUMBER
Natural Brass
700LSSTG48NB-LED927
Nightshade Black
700LSSTG48B-LED927
SIZE
H: 1.1" (28.3" min.-67" max.) | L: 48" | W: 1.25" |
Canopy: 13.5" wide
Includes (8) 12" and (4) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 20W
Delivered Lumens: 1800
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
28.3"-67"
718-1703 mm
48"
1219 mm
1.25"
32 mm
6.5"
165 mm
13.5"
343 mm
1.6"
44 mm
1.1"
27 mm
STAGGER SINGLE X-LARGE LINEAR
P 176
ITEM NUMBER
Natural Brass
700LSSTG72NB-LED927
Nightshade Black
700LSSTG72B-LED927
SIZE
H: 1.1" (28.3" min -67" max) | L: 72" | W: 1.25" |
Canopy: 19.5" wide
Includes (8) 12" and (4) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 30W
Delivered Lumens: 2700
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
28.3"-67"
718-1703 mm
1.25"
32 mm
6.5"
165 mm
19.5"
495 mm
1.6"
41 mm
1.1"
28 mm
72"
1829 mm
STAGGER DOUBLE LARGE LINEAR
P 177
ITEM NUMBER
Natural Brass
700LSSTG260NB-LED927
Nightshade Black
700LSSTG260B-LED927
SIZE
H: 1" (28.3" min -67" max) | L: 60" | W: 4.5" |
Canopy: 13.5" wide
Includes (8) 12" and (4) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 55W
Delivered Lumens: 5100
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
28.3"-67"
718-1703 mm
60"
1524 mm
13.5"
343 mm
1.6"
42 mm
1"
25 mm
4.5"
114 mm
6.5"
165 mm
STAGGER DOUBLE X-LARGE LINEAR
P 177
ITEM NUMBER
Natural Brass
700LSSTG284NB-LED927 (120V)
700LSSTG284NB-LED927-277 (277V)
Nightshade Black
700LSSTG284B-LED927 (120V)
700LSSTG284B-LED927-277 (277V)
SIZE
H: 1" (28.3" min -67" max) | L: 84" | W: 4.5" |
Canopy: 19.5" wide
Includes (8) 12" and (4) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 80W
Delivered Lumens: 7700
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
4.5"
114 mm
84"
2134 mm
19.5"
495 mm
1.6"
40 mm
1"
25 mm
6.5"
165 mm
28.3"-67"
718-1703 mm
LINEAR
