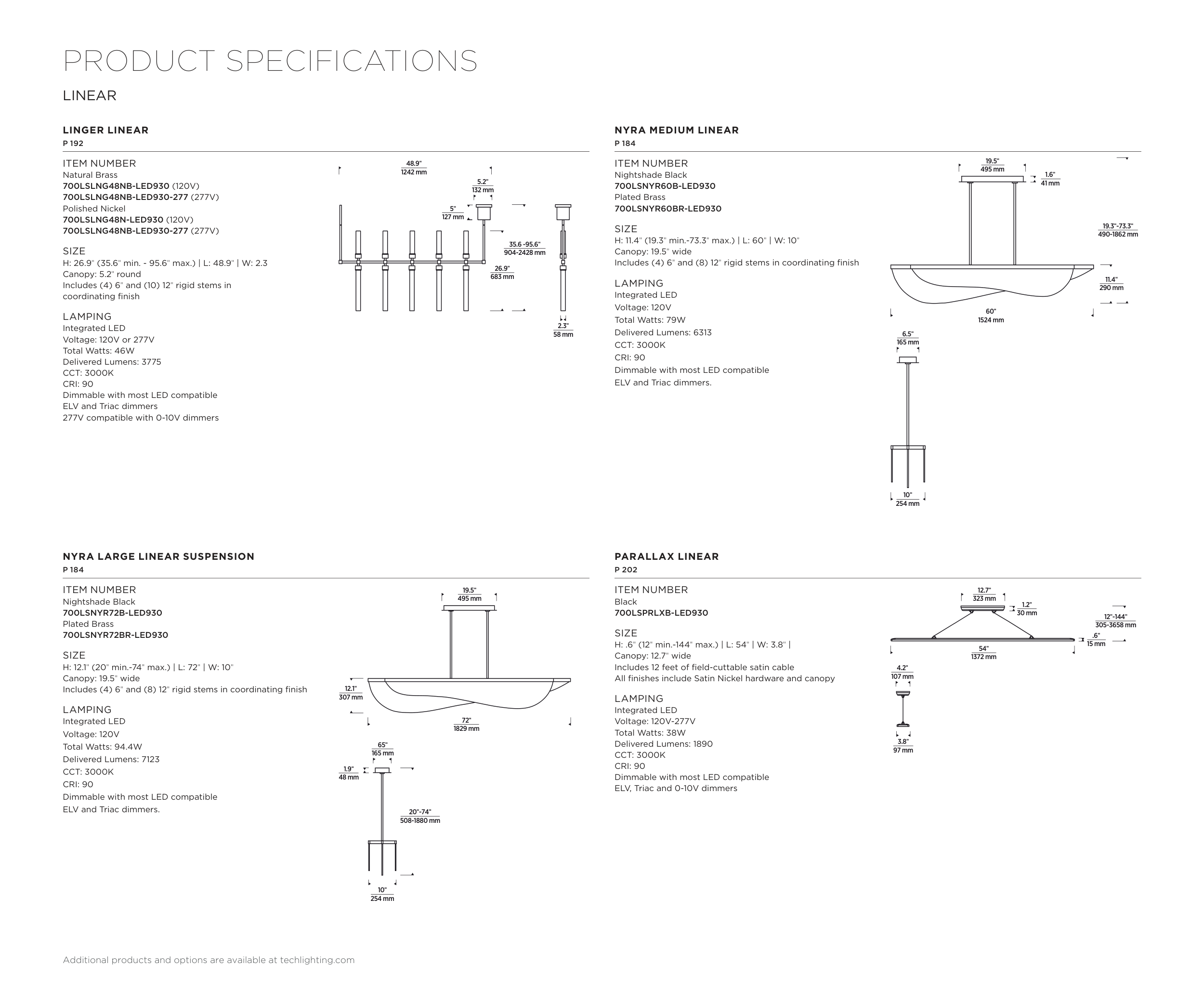

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
LINGER LINEAR
P 192
ITEM NUMBER
Natural Brass
700LSLNG48NB-LED930 (120V)
700LSLNG48NB-LED930-277 (277V)
Polished Nickel
700LSLNG48N-LED930 (120V)
700LSLNG48NB-LED930-277 (277V)
SIZE
H: 26.9" (35.6" min. - 95.6" max.) | L: 48.9" | W: 2.3
Canopy: 5.2" round
Includes (4) 6" and (10) 12" rigid stems in
coordinating finish
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 46W
Delivered Lumens: 3775
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
35.6 -95.6"
904-2428 mm
26.9"
683 mm
5"
127 mm
48.9"
1242 mm
2.3"
58 mm
5.2"
132 mm
NYRA MEDIUM LINEAR
P 184
ITEM NUMBER
Nightshade Black
700LSNYR60B-LED930
Plated Brass
700LSNYR60BR-LED930
SIZE
H: 11.4" (19.3" min.-73.3" max.) | L: 60" | W: 10"
Canopy: 19.5" wide
Includes (4) 6" and (8) 12" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 79W
Delivered Lumens: 6313
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers.
60"
1524 mm
19.3"-73.3"
490-1862 mm
10"
254 mm
19.5"
495 mm
6.5"
165 mm
11.4"
290 mm
1.6"
41 mm
NYRA LARGE LINEAR SUSPENSION
P 184
ITEM NUMBER
Nightshade Black
700LSNYR72B-LED930
Plated Brass
700LSNYR72BR-LED930
SIZE
H: 12.1" (20" min.-74" max.) | L: 72" | W: 10"
Canopy: 19.5" wide
Includes (4) 6" and (8) 12" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 94.4W
Delivered Lumens: 7123
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers.
10"
254 mm
65"
165 mm
72"
1829 mm
19.5"
495 mm
1.9"
48 mm
12.1"
307 mm
20"-74"
508-1880 mm
PARALLAX LINEAR
P 202
ITEM NUMBER
Black
700LSPRLXB-LED930
SIZE
H: .6" (12" min.-144" max.) | L: 54" | W: 3.8" |
Canopy: 12.7" wide
Includes 12 feet of field-cuttable satin cable
All finishes include Satin Nickel hardware and canopy
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 38W
Delivered Lumens: 1890
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
54"
1372 mm
12.7"
323 mm
12"-144"
305-3658 mm
3.8"
97 mm
4.2"
107 mm
1.2"
30 mm
.6"
15 mm
LINEAR
