677

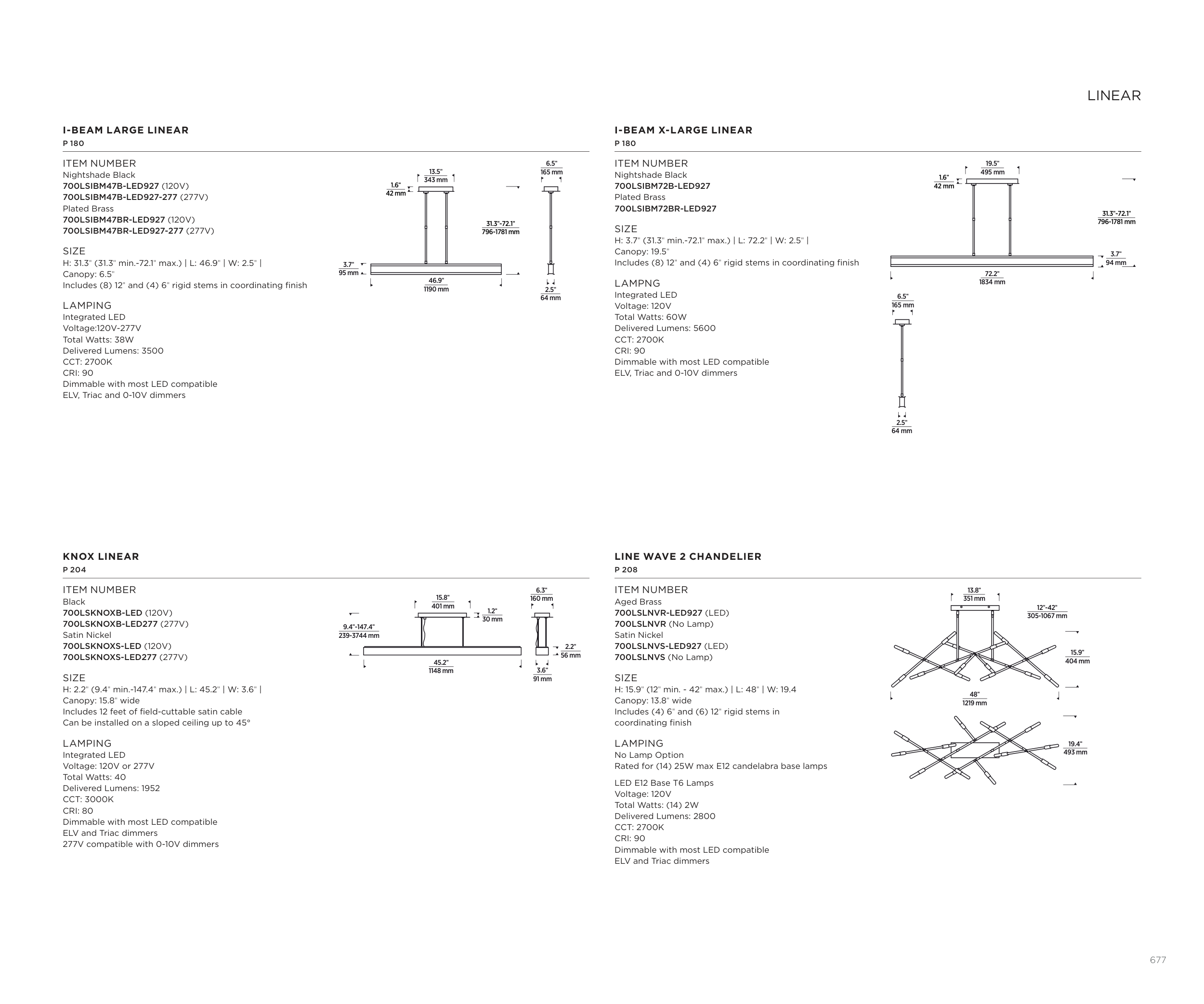

I-BEAM LARGE LINEAR
P 180
ITEM NUMBER
Nightshade Black
700LSIBM47B-LED927 (120V)
700LSIBM47B-LED927-277 (277V)
Plated Brass
700LSIBM47BR-LED927 (120V)
700LSIBM47BR-LED927-277 (277V)
SIZE
H: 31.3" (31.3" min.-72.1" max.) | L: 46.9" | W: 2.5" |
Canopy: 6.5"
Includes (8) 12" and (4) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage:120V-277V
Total Watts: 38W
Delivered Lumens: 3500
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
1.6"
42 mm
46.9"
1190 mm
3.7"
95 mm
13.5"
343 mm
2.5"
64 mm
6.5"
165 mm
31.3"-72.1"
796-1781 mm
I-BEAM X-LARGE LINEAR
P 180
ITEM NUMBER
Nightshade Black
700LSIBM72B-LED927
Plated Brass
700LSIBM72BR-LED927
SIZE
H: 3.7" (31.3" min.-72.1" max.) | L: 72.2" | W: 2.5" |
Canopy: 19.5"
Includes (8) 12" and (4) 6" rigid stems in coordinating finish
LAMPNG
Integrated LED
Voltage: 120V
Total Watts: 60W
Delivered Lumens: 5600
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
1.6"
42 mm
72.2"
1834 mm
19.5"
495 mm
2.5"
64 mm
6.5"
165 mm
3.7"
94 mm
31.3"-72.1"
796-1781 mm
KNOX LINEAR
P 204
ITEM NUMBER
Black
700LSKNOXB-LED (120V)
700LSKNOXB-LED277 (277V)
Satin Nickel
700LSKNOXS-LED (120V)
700LSKNOXS-LED277 (277V)
SIZE
H: 2.2" (9.4" min.-147.4" max.) | L: 45.2" | W: 3.6" |
Canopy: 15.8" wide
Includes 12 feet of field-cuttable satin cable
Can be installed on a sloped ceiling up to 45°
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 40
Delivered Lumens: 1952
CCT: 3000K
CRI: 80
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
45.2"
1148 mm
15.8"
401 mm
9.4"-147.4"
239-3744 mm
1.2"
30 mm
3.6"
91 mm
6.3"
160 mm
2.2"
56 mm
LINE WAVE 2 CHANDELIER
P 208
ITEM NUMBER
Aged Brass
700LSLNVR-LED927 (LED)
700LSLNVR (No Lamp)
Satin Nickel
700LSLNVS-LED927 (LED)
700LSLNVS (No Lamp)
SIZE
H: 15.9" (12" min. - 42" max.) | L: 48" | W: 19.4
Canopy: 13.8" wide
Includes (4) 6" and (6) 12" rigid stems in
coordinating finish
LAMPING
No Lamp Option
Rated for (14) 25W max E12 candelabra base lamps
LED E12 Base T6 Lamps
Voltage: 120V
Total Watts: (14) 2W
Delivered Lumens: 2800
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
48"
1219 mm
13.8"
351 mm
12"-42"
305-1067 mm
19.4"
493 mm
15.9"
404 mm
LINEAR
