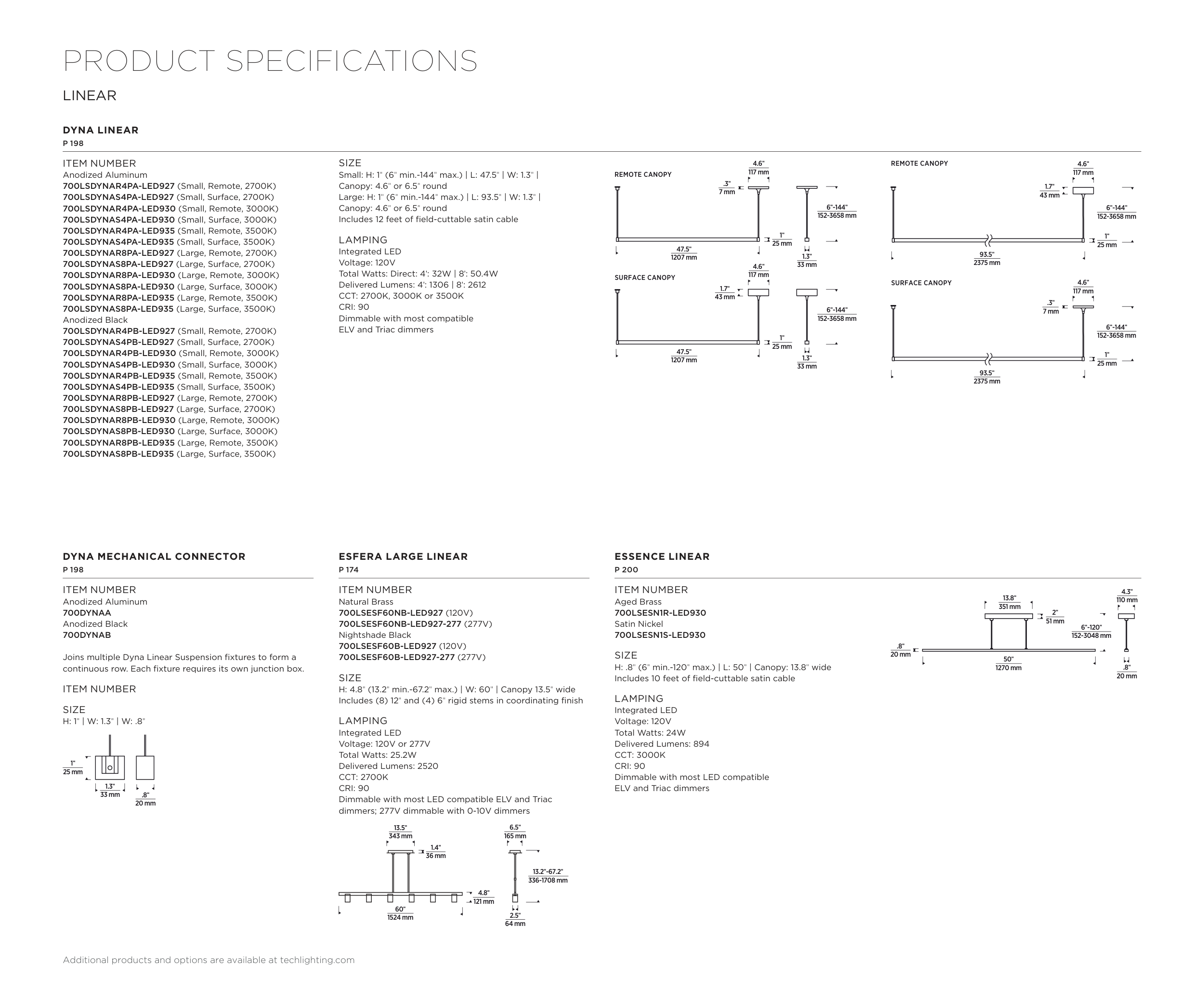

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
DYNA LINEAR
P 198
ITEM NUMBER
Anodized Aluminum
700LSDYNAR4PA-LED927 (Small, Remote, 2700K)
700LSDYNAS4PA-LED927 (Small, Surface, 2700K)
700LSDYNAR4PA-LED930 (Small, Remote, 3000K)
700LSDYNAS4PA-LED930 (Small, Surface, 3000K)
700LSDYNAR4PA-LED935 (Small, Remote, 3500K)
700LSDYNAS4PA-LED935 (Small, Surface, 3500K)
700LSDYNAR8PA-LED927 (Large, Remote, 2700K)
700LSDYNAS8PA-LED927 (Large, Surface, 2700K)
700LSDYNAR8PA-LED930 (Large, Remote, 3000K)
700LSDYNAS8PA-LED930 (Large, Surface, 3000K)
700LSDYNAR8PA-LED935 (Large, Remote, 3500K)
700LSDYNAS8PA-LED935 (Large, Surface, 3500K)
Anodized Black
700LSDYNAR4PB-LED927 (Small, Remote, 2700K)
700LSDYNAS4PB-LED927 (Small, Surface, 2700K)
700LSDYNAR4PB-LED930 (Small, Remote, 3000K)
700LSDYNAS4PB-LED930 (Small, Surface, 3000K)
700LSDYNAR4PB-LED935 (Small, Remote, 3500K)
700LSDYNAS4PB-LED935 (Small, Surface, 3500K)
700LSDYNAR8PB-LED927 (Large, Remote, 2700K)
700LSDYNAS8PB-LED927 (Large, Surface, 2700K)
700LSDYNAR8PB-LED930 (Large, Remote, 3000K)
700LSDYNAS8PB-LED930 (Large, Surface, 3000K)
700LSDYNAR8PB-LED935 (Large, Remote, 3500K)
700LSDYNAS8PB-LED935 (Large, Surface, 3500K)
SIZE
Small: H: 1" (6" min.-144" max.) | L: 47.5" | W: 1.3" |
Canopy: 4.6" or 6.5" round
Large: H: 1" (6" min.-144" max.) | L: 93.5" | W: 1.3" |
Canopy: 4.6" or 6.5" round
Includes 12 feet of field-cuttable satin cable
LAMPING
Integrated LED
Voltage: 120V
Total Watts: Direct: 4': 32W | 8': 50.4W
Delivered Lumens: 4': 1306 | 8': 2612
CCT: 2700K, 3000K or 3500K
CRI: 90
Dimmable with most compatible
ELV and Triac dimmers
47.5"
1207 mm
1.3"
33 mm
REMOTE CANOPY
4.6"
117 mm
1"
25 mm
.3"
7 mm
47.5"
1207 mm
1.3"
33 mm
SURFACE CANOPY
4.6"
117 mm
1"
25 mm
1.7"
43 mm
6"-144"
152-3658 mm
6"-144"
152-3658 mm
93.5"
2375 mm
4.6"
117 mm
1"
25 mm
.3"
7 mm
93.5"
2375 mm
4.6"
117 mm
1"
25 mm
1.7"
43 mm
REMOTE CANOPY
SURFACE CANOPY
6"-144"
152-3658 mm
6"-144"
152-3658 mm
DYNA MECHANICAL CONNECTOR
P 198
ITEM NUMBER
Anodized Aluminum
700DYNAA
Anodized Black
700DYNAB
Joins multiple Dyna Linear Suspension fixtures to form a
continuous row. Each fixture requires its own junction box.
ITEM NUMBER
SIZE
H: 1" | W: 1.3" | W: .8"
1.3"
33 mm
.8"
20 mm
1"
25 mm
ESFERA LARGE LINEAR
P 174
ITEM NUMBER
Natural Brass
700LSESF60NB-LED927 (120V)
700LSESF60NB-LED927-277 (277V)
Nightshade Black
700LSESF60B-LED927 (120V)
700LSESF60B-LED927-277 (277V)
SIZE
H: 4.8" (13.2" min.-67.2" max.) | W: 60" | Canopy 13.5" wide
Includes (8) 12" and (4) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 25.2W
Delivered Lumens: 2520
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
4.8"
121 mm
60"
1524 mm
13.5"
343 mm
6.5"
165 mm
1.4"
36 mm
13.2"-67.2"
336-1708 mm
2.5"
64 mm
ESSENCE LINEAR
P 200
ITEM NUMBER
Aged Brass
700LSESN1R-LED930
Satin Nickel
700LSESN1S-LED930
SIZE
H: .8" (6" min.-120" max.) | L: 50" | Canopy: 13.8" wide
Includes 10 feet of field-cuttable satin cable
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 24W
Delivered Lumens: 894
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
50"
1270 mm
13.8"
351 mm
6"-120"
152-3048 mm
2"
51 mm
.8"
20 mm
.8"
20 mm
4.3"
110 mm
LINEAR
