675

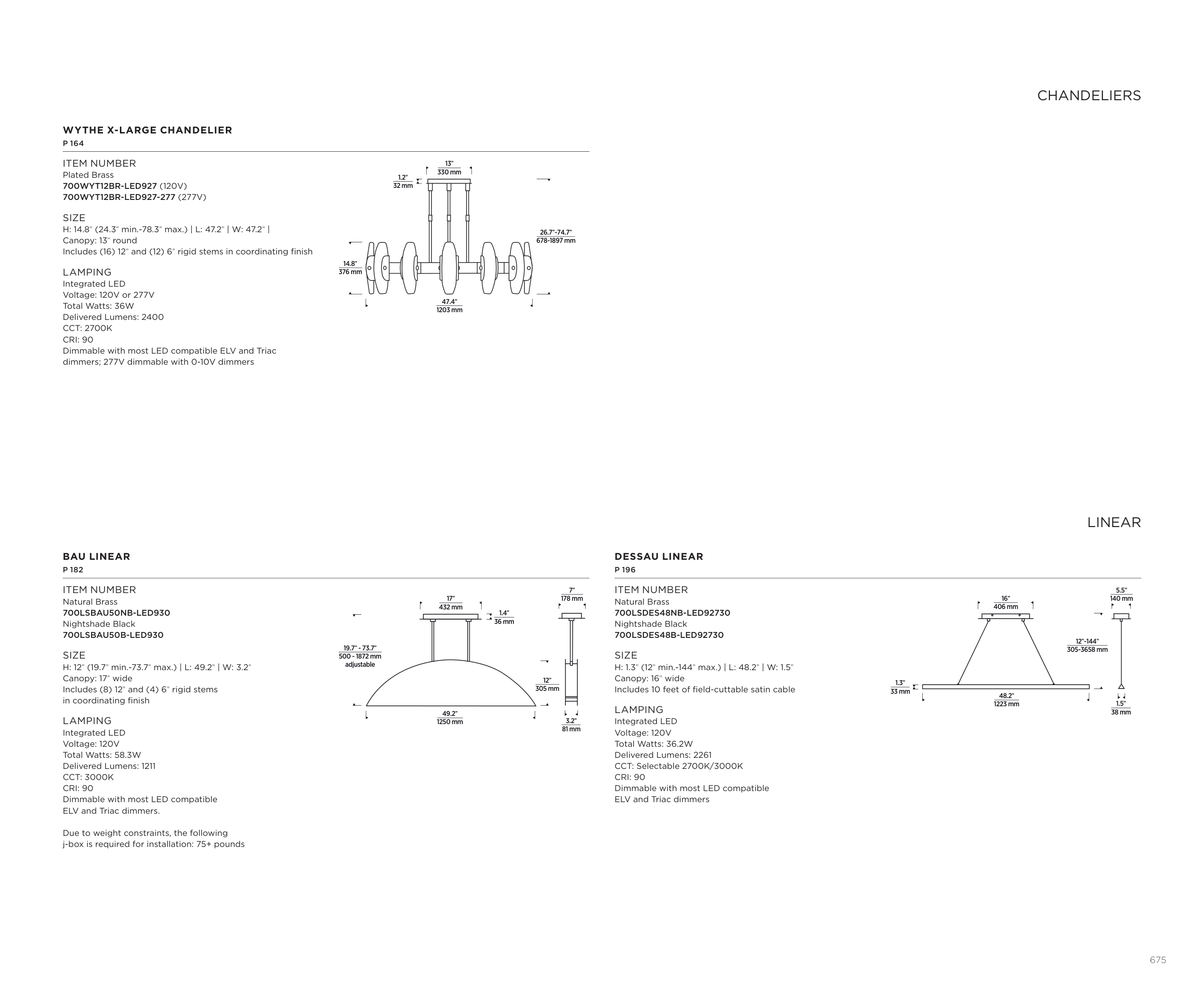

WYTHE X-LARGE CHANDELIER
P 164
ITEM NUMBER
Plated Brass
700WYT12BR-LED927 (120V)
700WYT12BR-LED927-277 (277V)
SIZE
H: 14.8" (24.3" min.-78.3" max.) | L: 47.2" | W: 47.2" |
Canopy: 13" round
Includes (16) 12" and (12) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 36W
Delivered Lumens: 2400
CCT: 2700K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
26.7"-74.7"
678-1897 mm
13"
330 mm
47.4"
1203 mm
14.8"
376 mm
1.2"
32 mm
CHANDELIERS
LINEAR
BAU LINEAR
P 182
ITEM NUMBER
Natural Brass
700LSBAU50NB-LED930
Nightshade Black
700LSBAU50B-LED930
SIZE
H: 12" (19.7" min.-73.7" max.) | L: 49.2" | W: 3.2"
Canopy: 17" wide
Includes (8) 12" and (4) 6" rigid stems
in coordinating finish
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 58.3W
Delivered Lumens: 1211
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers.
Due to weight constraints, the following
j-box is required for installation: 75+ pounds
49.2"
1250 mm
19.7" - 73.7"
500 - 1872 mm
adjustable
7"
178 mm
12"
305 mm
17"
432 mm
3.2"
81 mm
1.4"
36 mm
DESSAU LINEAR
P 196
ITEM NUMBER
Natural Brass
700LSDES48NB-LED92730
Nightshade Black
700LSDES48B-LED92730
SIZE
H: 1.3" (12" min.-144" max.) | L: 48.2" | W: 1.5"
Canopy: 16" wide
Includes 10 feet of field-cuttable satin cable
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 36.2W
Delivered Lumens: 2261
CCT: Selectable 2700K/3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
48.2"
1223 mm
16"
406 mm
12"-144"
305-3658 mm
1.5"
38 mm
5.5"
140 mm
1.3"
33 mm
