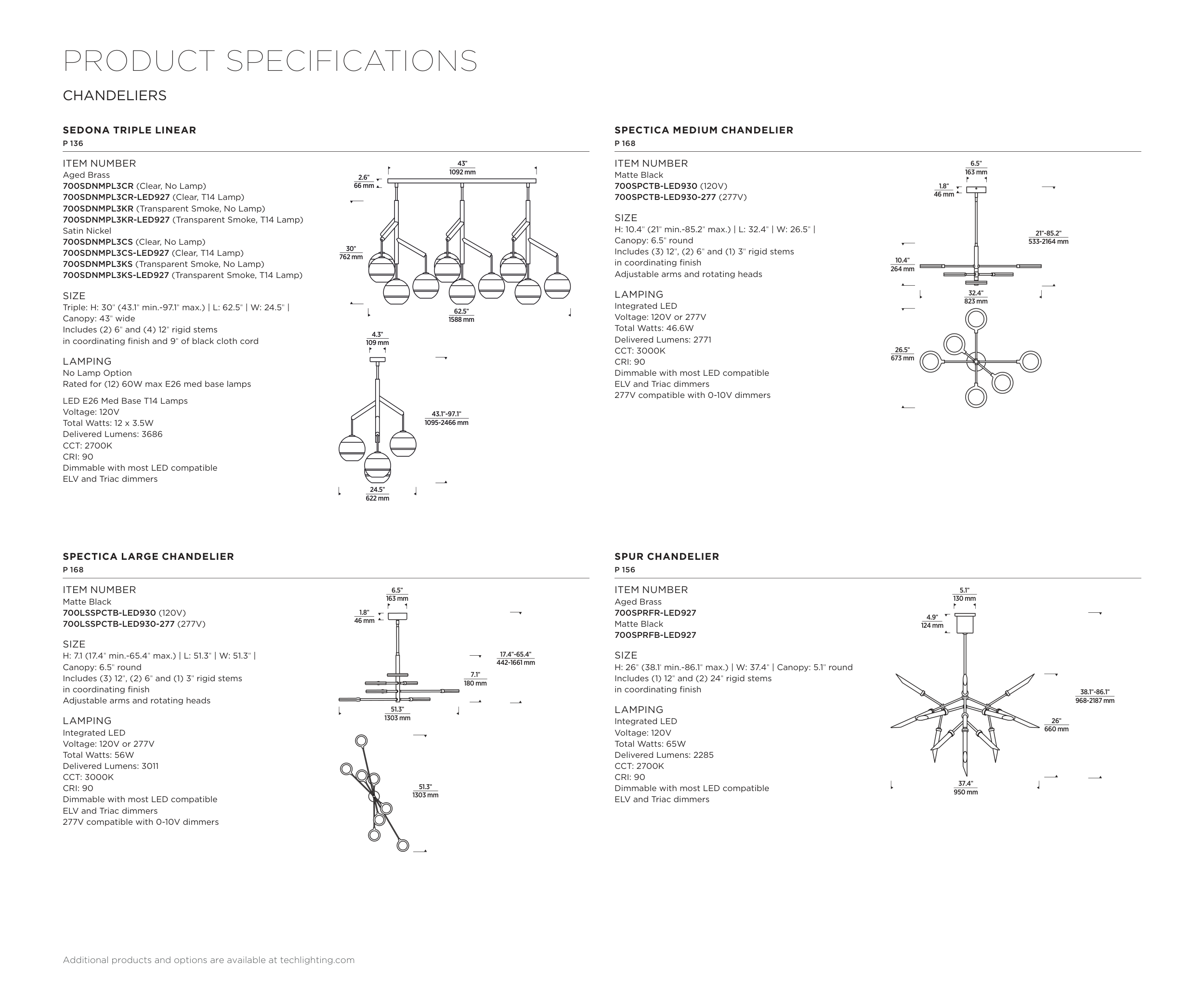

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
SEDONA TRIPLE LINEAR
P 136
ITEM NUMBER
Aged Brass
700SDNMPL3CR (Clear, No Lamp)
700SDNMPL3CR-LED927 (Clear, T14 Lamp)
700SDNMPL3KR (Transparent Smoke, No Lamp)
700SDNMPL3KR-LED927 (Transparent Smoke, T14 Lamp)
Satin Nickel
700SDNMPL3CS (Clear, No Lamp)
700SDNMPL3CS-LED927 (Clear, T14 Lamp)
700SDNMPL3KS (Transparent Smoke, No Lamp)
700SDNMPL3KS-LED927 (Transparent Smoke, T14 Lamp)
SIZE
Triple: H: 30" (43.1" min.-97.1" max.) | L: 62.5" | W: 24.5" |
Canopy: 43" wide
Includes (2) 6" and (4) 12" rigid stems
in coordinating finish and 9" of black cloth cord
LAMPING
No Lamp Option
Rated for (12) 60W max E26 med base lamps
LED E26 Med Base T14 Lamps
Voltage: 120V
Total Watts: 12 x 3.5W
Delivered Lumens: 3686
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
62.5"
1588 mm
43"
1092 mm
24.5"
622 mm
30"
762 mm
4.3"
109 mm
2.6"
66 mm
43.1"-97.1"
1095-2466 mm
SPECTICA MEDIUM CHANDELIER
P 168
ITEM NUMBER
Matte Black
700SPCTB-LED930 (120V)
700SPCTB-LED930-277 (277V)
SIZE
H: 10.4" (21" min.-85.2" max.) | L: 32.4" | W: 26.5" |
Canopy: 6.5" round
Includes (3) 12", (2) 6" and (1) 3" rigid stems
in coordinating finish
Adjustable arms and rotating heads
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 46.6W
Delivered Lumens: 2771
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
32.4"
823 mm
21"-85.2"
533-2164 mm
10.4"
264 mm
26.5"
673 mm
6.5"
163 mm
1.8"
46 mm
SPECTICA LARGE CHANDELIER
P 168
ITEM NUMBER
Matte Black
700LSSPCTB-LED930 (120V)
700LSSPCTB-LED930-277 (277V)
SIZE
H: 7.1 (17.4" min.-65.4" max.) | L: 51.3" | W: 51.3" |
Canopy: 6.5" round
Includes (3) 12", (2) 6" and (1) 3" rigid stems
in coordinating finish
Adjustable arms and rotating heads
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 56W
Delivered Lumens: 3011
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
51.3"
1303 mm
17.4"-65.4"
442-1661 mm
6.5"
163 mm
51.3"
1303 mm
1.8"
46 mm
7.1"
180 mm
SPUR CHANDELIER
P 156
ITEM NUMBER
Aged Brass
700SPRFR-LED927
Matte Black
700SPRFB-LED927
SIZE
H: 26" (38.1' min.-86.1" max.) | W: 37.4" | Canopy: 5.1" round
Includes (1) 12" and (2) 24" rigid stems
in coordinating finish
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 65W
Delivered Lumens: 2285
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
37.4"
950 mm
38.1"-86.1"
968-2187 mm
5.1"
130 mm
26"
660 mm
4.9"
124 mm
CHANDELIERS
