671

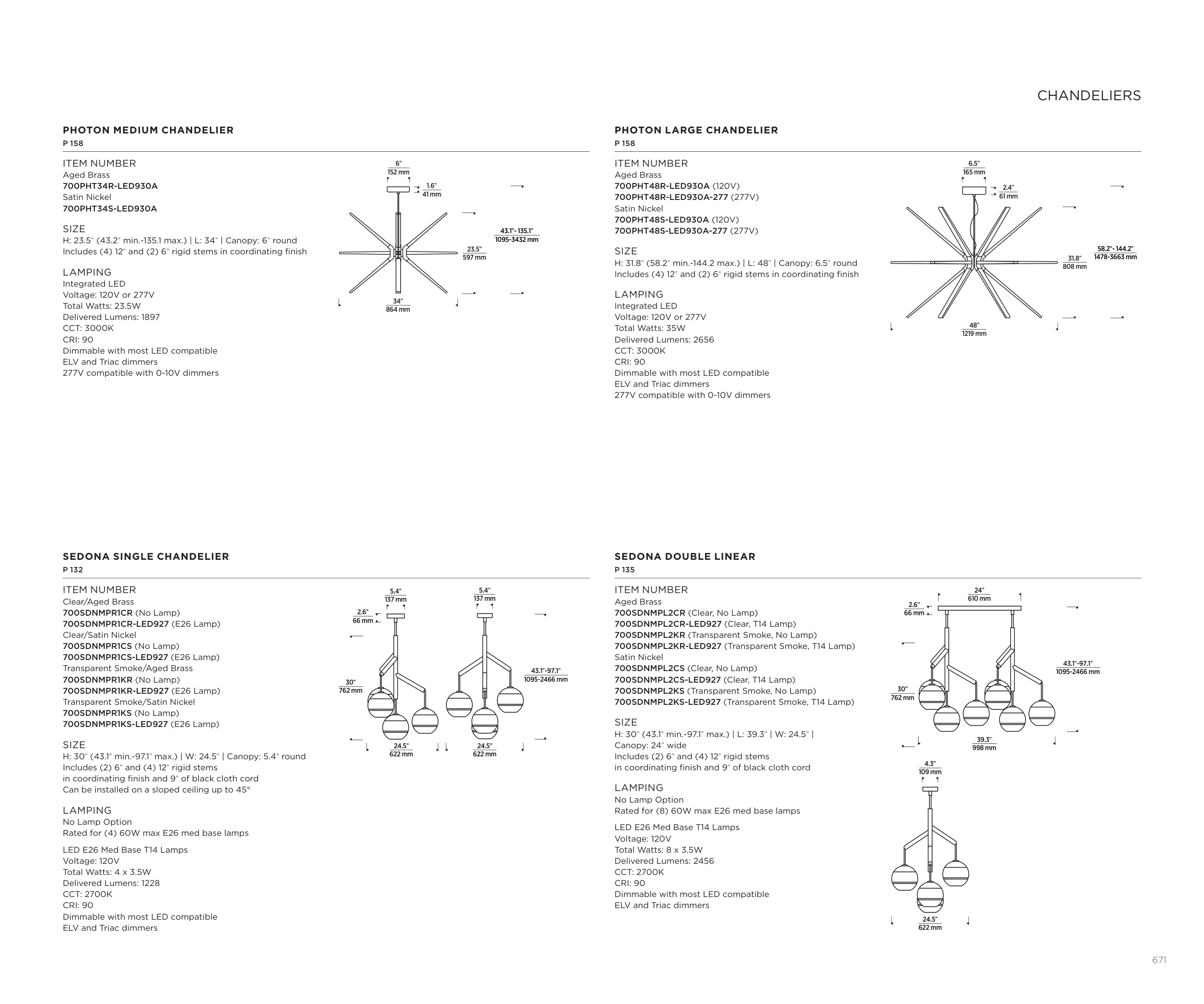

PHOTON MEDIUM CHANDELIER
P 158
ITEM NUMBER
Aged Brass
700PHT34R-LED930A
Satin Nickel
700PHT34S-LED930A
SIZE
H: 23.5" (43.2" min.-135.1 max.) | L: 34" | Canopy: 6" round
Includes (4) 12" and (2) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 23.5W
Delivered Lumens: 1897
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
34"
864 mm
23.5"
597 mm
6"
152 mm
1.6"
41 mm
43.1"- 135.1"
1095-3432 mm
PHOTON LARGE CHANDELIER
P 158
ITEM NUMBER
Aged Brass
700PHT48R-LED930A (120V)
700PHT48R-LED930A-277 (277V)
Satin Nickel
700PHT48S-LED930A (120V)
700PHT48S-LED930A-277 (277V)
SIZE
H: 31.8" (58.2" min.-144.2 max.) | L: 48" | Canopy: 6.5" round
Includes (4) 12" and (2) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 35W
Delivered Lumens: 2656
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
48"
1219 mm
31.8"
808 mm
6.5"
165 mm
2.4"
61 mm
58.2"- 144.2"
1478-3663 mm
SEDONA SINGLE CHANDELIER
P 132
ITEM NUMBER
Clear/Aged Brass
700SDNMPR1CR (No Lamp)
700SDNMPR1CR-LED927 (E26 Lamp)
Clear/Satin Nickel
700SDNMPR1CS (No Lamp)
700SDNMPR1CS-LED927 (E26 Lamp)
Transparent Smoke/Aged Brass
700SDNMPR1KR (No Lamp)
700SDNMPR1KR-LED927 (E26 Lamp)
Transparent Smoke/Satin Nickel
700SDNMPR1KS (No Lamp)
700SDNMPR1KS-LED927 (E26 Lamp)
SIZE
H: 30" (43.1" min.-97.1" max.) | W: 24.5" | Canopy: 5.4" round
Includes (2) 6" and (4) 12" rigid stems
in coordinating finish and 9" of black cloth cord
Can be installed on a sloped ceiling up to 45°
LAMPING
No Lamp Option
Rated for (4) 60W max E26 med base lamps
LED E26 Med Base T14 Lamps
Voltage: 120V
Total Watts: 4 x 3.5W
Delivered Lumens: 1228
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
24.5"
622 mm
24.5"
622 mm
5.4"
137 mm
5.4"
137 mm
30"
762 mm
2.6"
66 mm
43.1"-97.1"
1095-2466 mm
SEDONA DOUBLE LINEAR
P 135
ITEM NUMBER
Aged Brass
700SDNMPL2CR (Clear, No Lamp)
700SDNMPL2CR-LED927 (Clear, T14 Lamp)
700SDNMPL2KR (Transparent Smoke, No Lamp)
700SDNMPL2KR-LED927 (Transparent Smoke, T14 Lamp)
Satin Nickel
700SDNMPL2CS (Clear, No Lamp)
700SDNMPL2CS-LED927 (Clear, T14 Lamp)
700SDNMPL2KS (Transparent Smoke, No Lamp)
700SDNMPL2KS-LED927 (Transparent Smoke, T14 Lamp)
SIZE
H: 30" (43.1" min.-97.1" max.) | L: 39.3" | W: 24.5" |
Canopy: 24" wide
Includes (2) 6" and (4) 12" rigid stems
in coordinating finish and 9" of black cloth cord
LAMPING
No Lamp Option
Rated for (8) 60W max E26 med base lamps
LED E26 Med Base T14 Lamps
Voltage: 120V
Total Watts: 8 x 3.5W
Delivered Lumens: 2456
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
39.3"
998 mm
24"
610 mm
24.5"
622 mm
4.3"
109 mm
2.6"
66 mm
30"
762 mm
43.1"-97.1"
1095-2466 mm
CHANDELIERS
