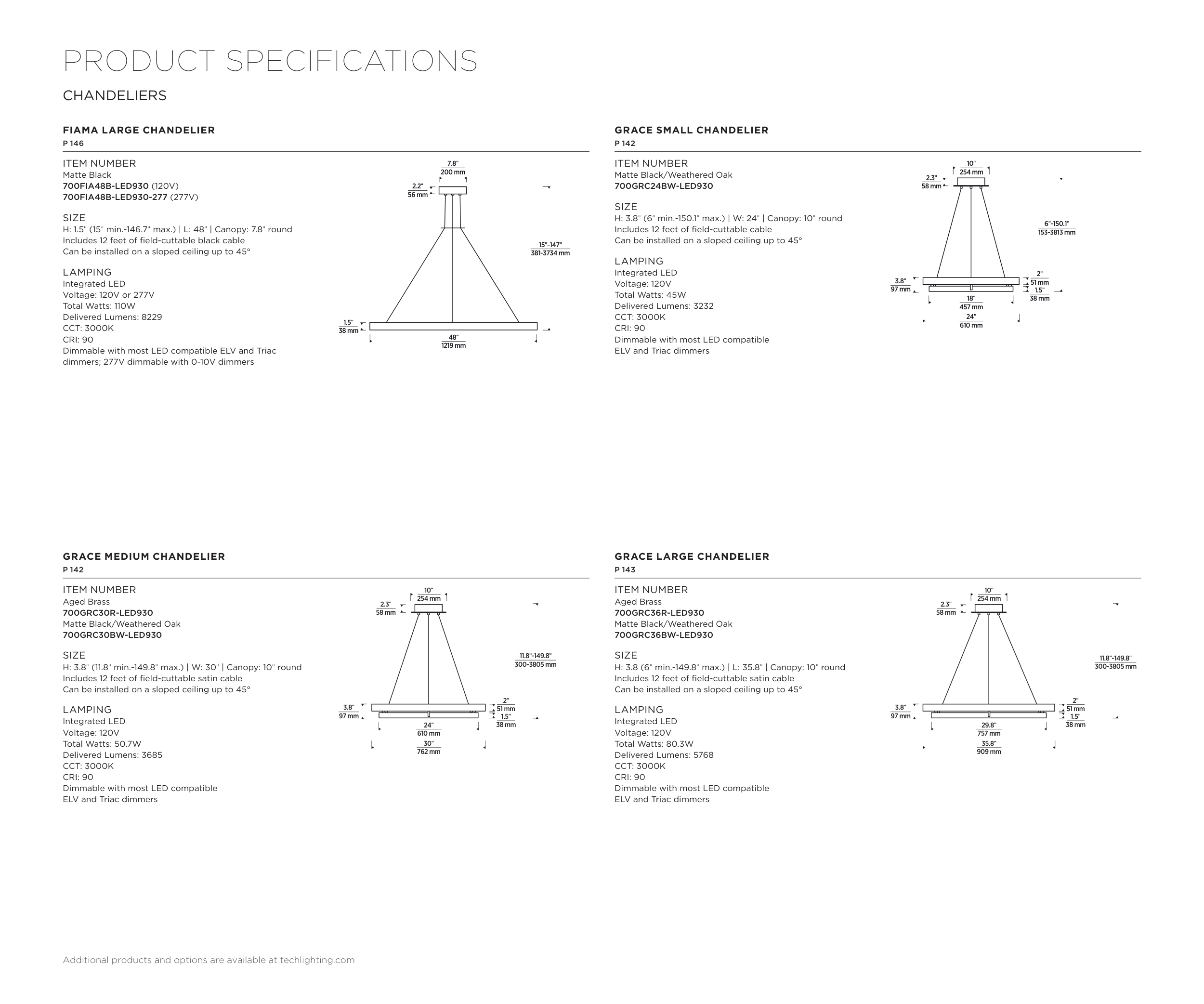

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
FIAMA LARGE CHANDELIER
P 146
ITEM NUMBER
Matte Black
700FIA48B-LED930 (120V)
700FIA48B-LED930-277 (277V)
SIZE
H: 1.5" (15" min.-146.7" max.) | L: 48" | Canopy: 7.8" round
Includes 12 feet of field-cuttable black cable
Can be installed on a sloped ceiling up to 45°
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 110W
Delivered Lumens: 8229
CCT: 3000K
CRI: 90
Dimmable with most LED compatible ELV and Triac
dimmers; 277V dimmable with 0-10V dimmers
48"
1219 mm
1.5"
38 mm
15"-147"
381-3734 mm
7.8"
200 mm
2.2"
56 mm
GRACE SMALL CHANDELIER
P 142
ITEM NUMBER
Matte Black/Weathered Oak
700GRC24BW-LED930
SIZE
H: 3.8" (6" min.-150.1" max.) | W: 24" | Canopy: 10" round
Includes 12 feet of field-cuttable cable
Can be installed on a sloped ceiling up to 45°
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 45W
Delivered Lumens: 3232
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
2"
51 mm
1.5"
38 mm
18"
457 mm
24"
610 mm
2.3"
58 mm
10"
254 mm
6"-150.1"
153-3813 mm
3.8"
97 mm
GRACE MEDIUM CHANDELIER
P 142
ITEM NUMBER
Aged Brass
700GRC30R-LED930
Matte Black/Weathered Oak
700GRC30BW-LED930
SIZE
H: 3.8" (11.8" min.-149.8" max.) | W: 30" | Canopy: 10" round
Includes 12 feet of field-cuttable satin cable
Can be installed on a sloped ceiling up to 45°
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 50.7W
Delivered Lumens: 3685
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
2"
51 mm
1.5"
38 mm
24"
610 mm
30"
762 mm
2.3"
58 mm
10"
254 mm
11.8"-149.8"
300-3805 mm
3.8"
97 mm
GRACE LARGE CHANDELIER
P 143
ITEM NUMBER
Aged Brass
700GRC36R-LED930
Matte Black/Weathered Oak
700GRC36BW-LED930
SIZE
H: 3.8 (6" min.-149.8" max.) | L: 35.8" | Canopy: 10" round
Includes 12 feet of field-cuttable satin cable
Can be installed on a sloped ceiling up to 45°
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 80.3W
Delivered Lumens: 5768
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
2"
51 mm
1.5"
38 mm
29.8"
757 mm
35.8"
909 mm
2.3"
58 mm
10"
254 mm
3.8"
97 mm
11.8"-149.8"
300-3805 mm
CHANDELIERS
