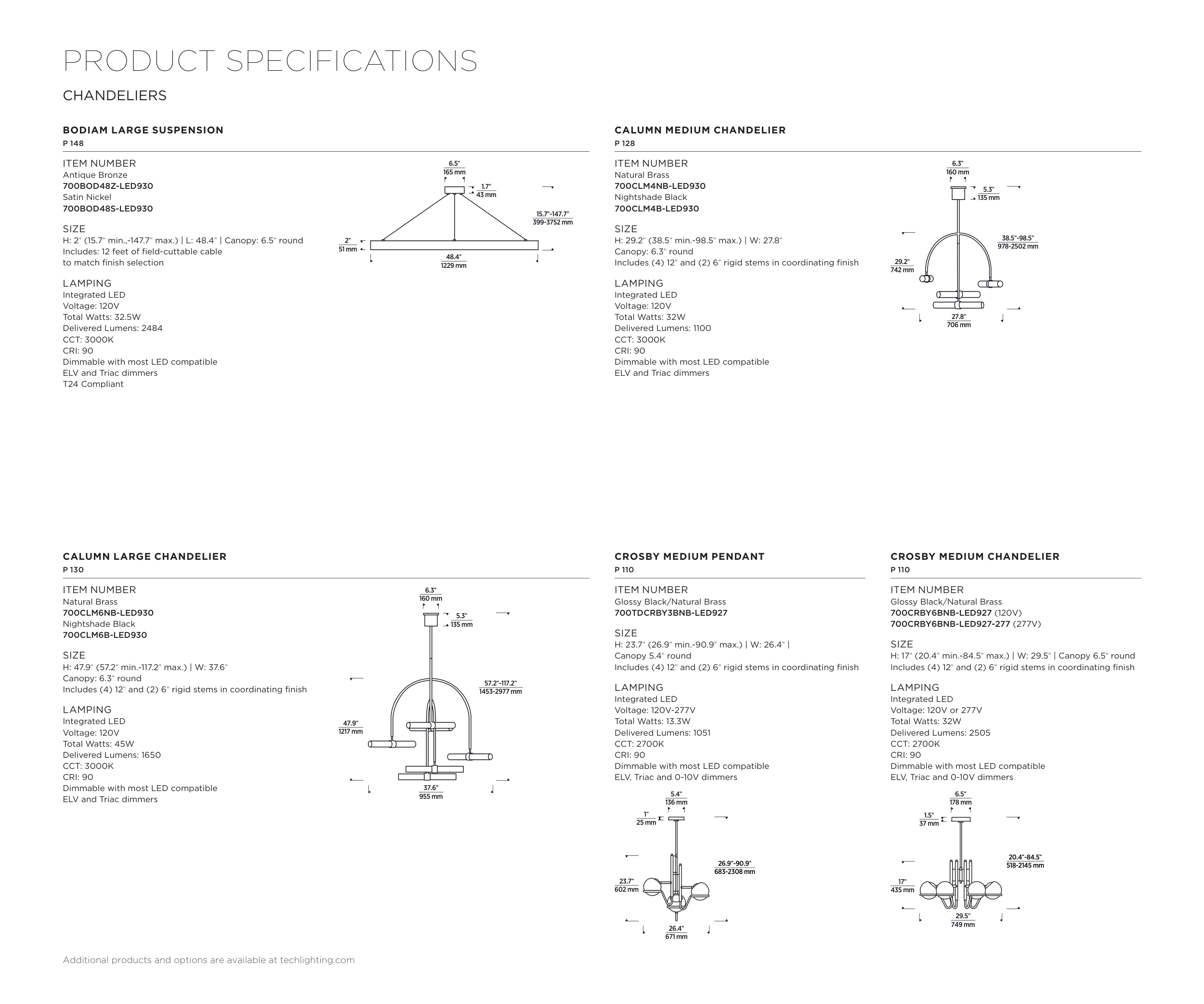

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
BODIAM LARGE SUSPENSION
P 148
ITEM NUMBER
Antique Bronze
700BOD48Z-LED930
Satin Nickel
700BOD48S-LED930
SIZE
H: 2" (15.7" min.,-147.7" max.) | L: 48.4" | Canopy: 6.5" round
Includes: 12 feet of field-cuttable cable
to match finish selection
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 32.5W
Delivered Lumens: 2484
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
T24 Compliant
48.4"
1229 mm
6.5"
165 mm
1.7"
43 mm
2"
51 mm
15.7"-147.7"
399-3752 mm
CALUMN MEDIUM CHANDELIER
P 128
ITEM NUMBER
Natural Brass
700CLM4NB-LED930
Nightshade Black
700CLM4B-LED930
SIZE
H: 29.2" (38.5" min.-98.5" max.) | W: 27.8"
Canopy: 6.3" round
Includes (4) 12" and (2) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 32W
Delivered Lumens: 1100
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
38.5"-98.5"
978-2502 mm
29.2"
742 mm
27.8"
706 mm
6.3"
160 mm
5.3"
135 mm
CALUMN LARGE CHANDELIER
P 130
ITEM NUMBER
Natural Brass
700CLM6NB-LED930
Nightshade Black
700CLM6B-LED930
SIZE
H: 47.9" (57.2" min.-117.2" max.) | W: 37.6"
Canopy: 6.3" round
Includes (4) 12" and (2) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 45W
Delivered Lumens: 1650
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
37.6"
955 mm
57.2"-117.2"
1453-2977 mm
47.9"
1217 mm
6.3"
160 mm
5.3"
135 mm
CROSBY MEDIUM PENDANT
P 110
ITEM NUMBER
Glossy Black/Natural Brass
700TDCRBY3BNB-LED927
SIZE
H: 23.7" (26.9" min.-90.9" max.) | W: 26.4" |
Canopy 5.4" round
Includes (4) 12" and (2) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V-277V
Total Watts: 13.3W
Delivered Lumens: 1051
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
26.9"-90.9"
683-2308 mm
26.4"
671 mm
23.7"
602 mm
5.4"
136 mm
1"
25 mm
CROSBY MEDIUM CHANDELIER
P 110
ITEM NUMBER
Glossy Black/Natural Brass
700CRBY6BNB-LED927 (120V)
700CRBY6BNB-LED927-277 (277V)
SIZE
H: 17" (20.4" min.-84.5" max.) | W: 29.5" | Canopy 6.5" round
Includes (4) 12" and (2) 6" rigid stems in coordinating finish
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 32W
Delivered Lumens: 2505
CCT: 2700K
CRI: 90
Dimmable with most LED compatible
ELV, Triac and 0-10V dimmers
20.4"-84.5"
518-2145 mm
29.5"
749 mm
17"
435 mm
6.5"
178 mm
1.5"
37 mm
CHANDELIERS
