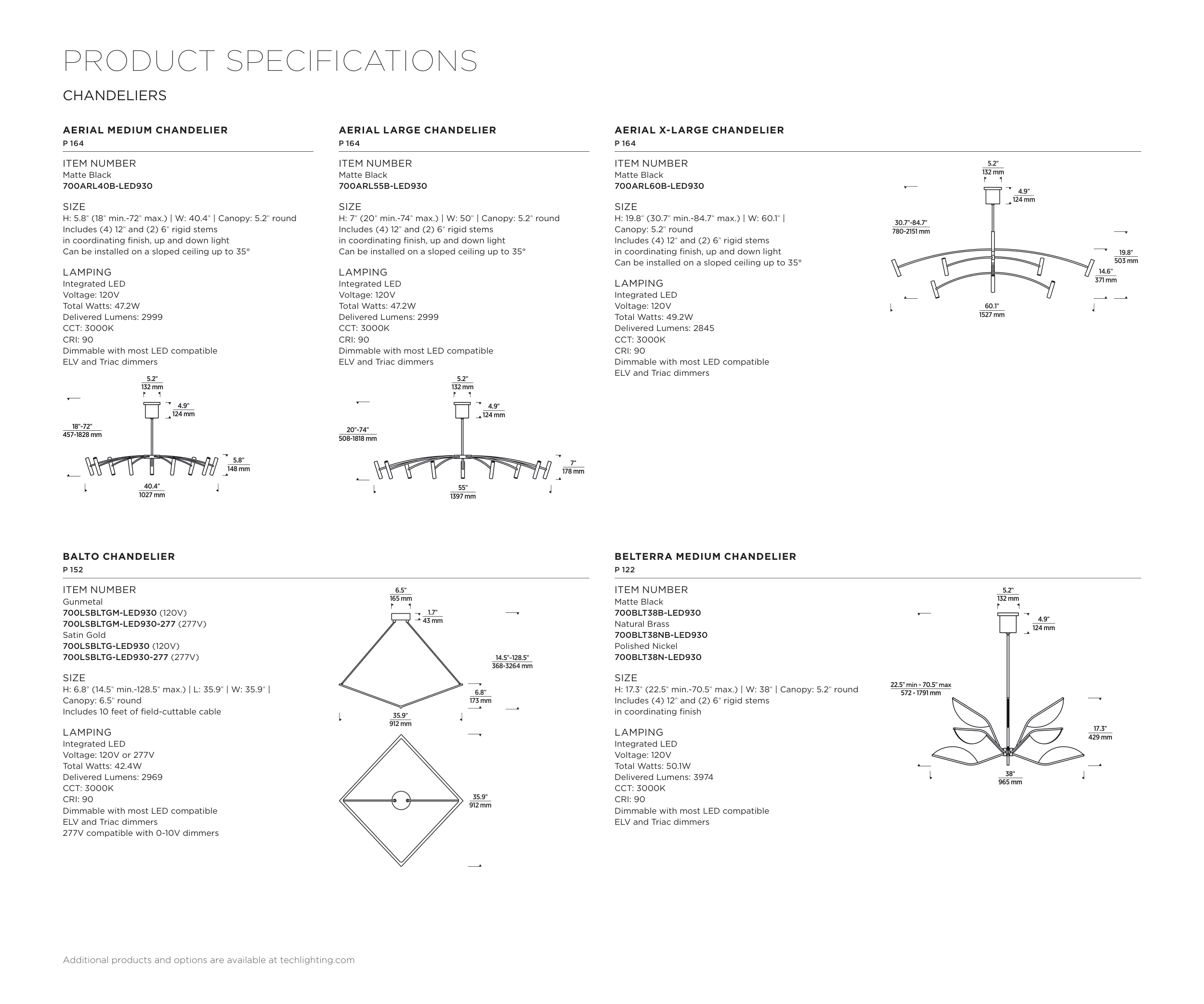

PRODUCT SPECIFICATIONS
Additional products and options are available at techlighting.com
AERIAL MEDIUM CHANDELIER
P 164
ITEM NUMBER
Matte Black
700ARL40B-LED930
SIZE
H: 5.8" (18" min.-72" max.) | W: 40.4" | Canopy: 5.2" round
Includes (4) 12" and (2) 6" rigid stems
in coordinating finish, up and down light
Can be installed on a sloped ceiling up to 35°
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 47.2W
Delivered Lumens: 2999
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
40.4"
1027 mm
5.8"
148 mm
5.2"
132 mm
4.9"
124 mm
18"-72"
457-1828 mm
AERIAL LARGE CHANDELIER
P 164
ITEM NUMBER
Matte Black
700ARL55B-LED930
SIZE
H: 7" (20" min.-74" max.) | W: 50" | Canopy: 5.2" round
Includes (4) 12" and (2) 6" rigid stems
in coordinating finish, up and down light
Can be installed on a sloped ceiling up to 35°
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 47.2W
Delivered Lumens: 2999
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
55"
1397 mm
7"
178 mm
5.2"
132 mm
4.9"
124 mm
20"-74"
508-1818 mm
AERIAL X-LARGE CHANDELIER
P 164
ITEM NUMBER
Matte Black
700ARL60B-LED930
SIZE
H: 19.8" (30.7" min.-84.7" max.) | W: 60.1" |
Canopy: 5.2" round
Includes (4) 12" and (2) 6" rigid stems
in coordinating finish, up and down light
Can be installed on a sloped ceiling up to 35°
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 49.2W
Delivered Lumens: 2845
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
60.1"
1527 mm
30.7"-84.7"
780-2151 mm
14.6"
371 mm
19.8"
503 mm
5.2"
132 mm
4.9"
124 mm
BALTO CHANDELIER
P 152
ITEM NUMBER
Gunmetal
700LSBLTGM-LED930 (120V)
700LSBLTGM-LED930-277 (277V)
Satin Gold
700LSBLTG-LED930 (120V)
700LSBLTG-LED930-277 (277V)
SIZE
H: 6.8" (14.5" min.-128.5" max.) | L: 35.9" | W: 35.9" |
Canopy: 6.5" round
Includes 10 feet of field-cuttable cable
LAMPING
Integrated LED
Voltage: 120V or 277V
Total Watts: 42.4W
Delivered Lumens: 2969
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
277V compatible with 0-10V dimmers
35.9"
912 mm
14.5"-128.5"
368-3264 mm
6.5"
165 mm
35.9"
912 mm
6.8"
173 mm
1.7"
43 mm
BELTERRA MEDIUM CHANDELIER
P 122
ITEM NUMBER
Matte Black
700BLT38B-LED930
Natural Brass
700BLT38NB-LED930
Polished Nickel
700BLT38N-LED930
SIZE
H: 17.3" (22.5" min.-70.5" max.) | W: 38" | Canopy: 5.2" round
Includes (4) 12" and (2) 6" rigid stems
in coordinating finish
LAMPING
Integrated LED
Voltage: 120V
Total Watts: 50.1W
Delivered Lumens: 3974
CCT: 3000K
CRI: 90
Dimmable with most LED compatible
ELV and Triac dimmers
17.3"
429 mm
5.2"
132 mm
4.9"
124 mm
38"
965 mm
22.5" min - 70.5" max
572 - 1791 mm
CHANDELIERS
