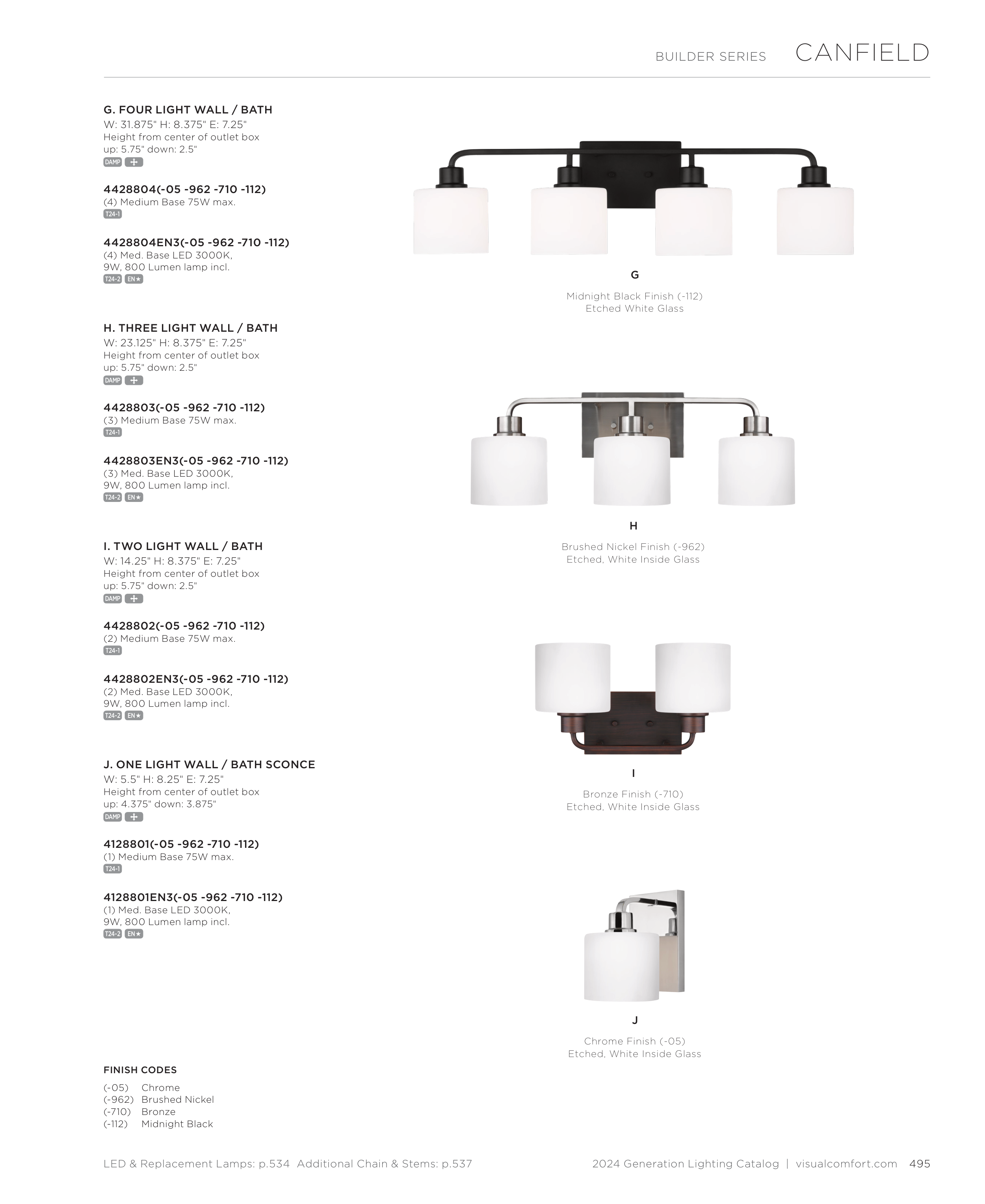

BUILDER SERIES
CANFIELD
J. ONE LIGHT WALL / BATH SCONCE
W: 5.5" H: 8.25" E: 7.25"
Height from center of outlet box
up: 4.375" down: 3.875"
DAMP
4128801(-05 -962 -710 -112)
(1) Medium Base 75W max.
T24-1
4128801EN3(-05 -962 -710 -112)
(1) Med. Base LED 3000K,
9W, 800 Lumen lamp incl.
T24-2 EN
I. TWO LIGHT WALL / BATH
W: 14.25" H: 8.375" E: 7.25"
Height from center of outlet box
up: 5.75" down: 2.5"
DAMP
4428802(-05 -962 -710 -112)
(2) Medium Base 75W max.
T24-1
4428802EN3(-05 -962 -710 -112)
(2) Med. Base LED 3000K,
9W, 800 Lumen lamp incl.
T24-2 EN
H. THREE LIGHT WALL / BATH
W: 23.125" H: 8.375" E: 7.25"
Height from center of outlet box
up: 5.75" down: 2.5"
DAMP
4428803(-05 -962 -710 -112)
(3) Medium Base 75W max.
T24-1
4428803EN3(-05 -962 -710 -112)
(3) Med. Base LED 3000K,
9W, 800 Lumen lamp incl.
T24-2 EN
G. FOUR LIGHT WALL / BATH
W: 31.875" H: 8.375" E: 7.25"
Height from center of outlet box
up: 5.75" down: 2.5"
DAMP
4428804(-05 -962 -710 -112)
(4) Medium Base 75W max.
T24-1
4428804EN3(-05 -962 -710 -112)
(4) Med. Base LED 3000K,
9W, 800 Lumen lamp incl.
T24-2 EN
FINISH CODES
(-05)
Chrome
(-962) Brushed Nickel
(-710)
Bronze
(-112)
Midnight Black
Brushed Nickel Finish (-962)
Etched, White Inside Glass
H
Bronze Finish (-710)
Etched, White Inside Glass
I
Midnight Black Finish (-112)
Etched White Glass
G
Chrome Finish (-05)
Etched, White Inside Glass
J
LED & Replacement Lamps: p.534 Additional Chain & Stems: p.537
495
2024 Generation Lighting Catalog | visualcomfort.com
