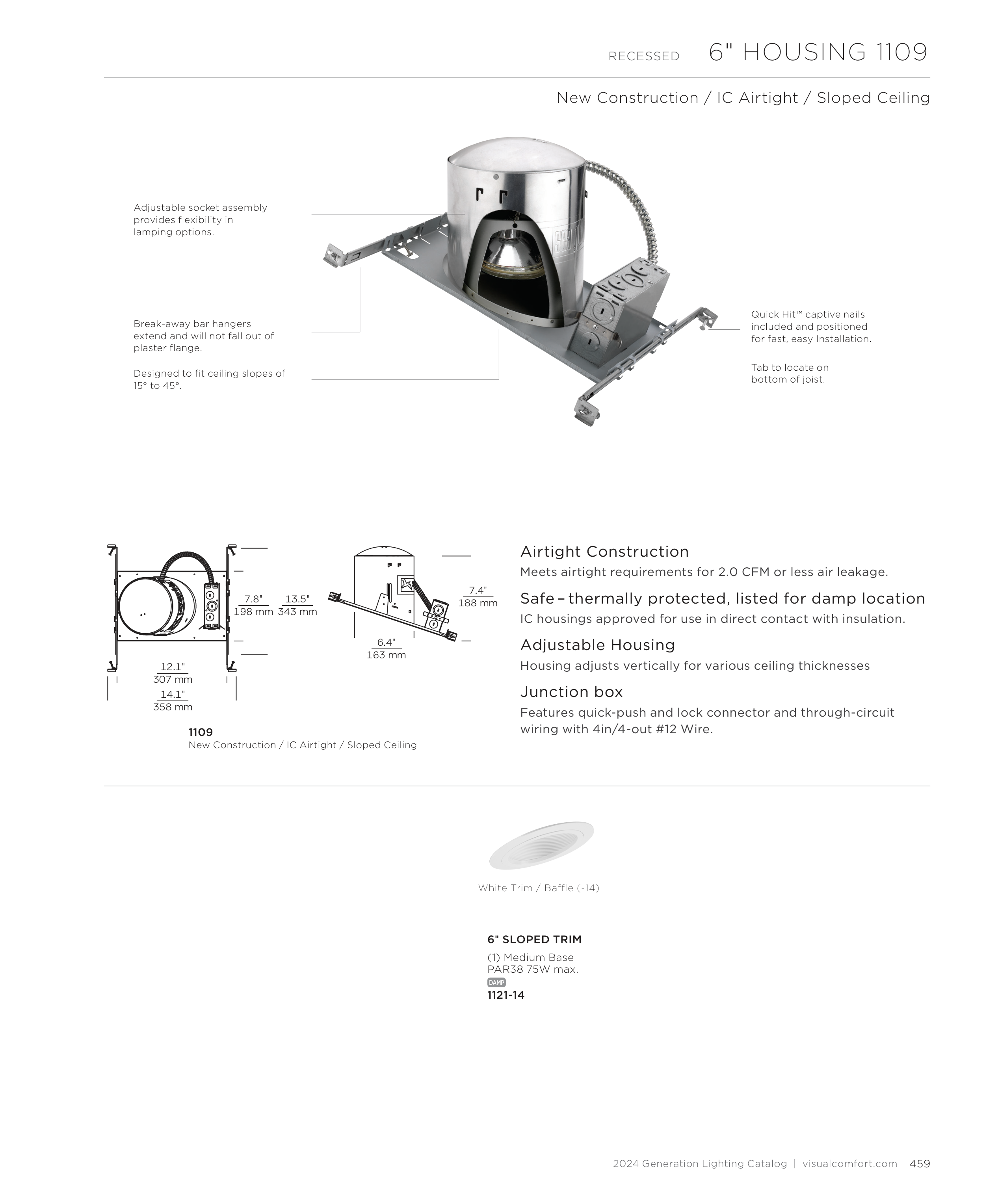

Quick Hit™ captive nails
included and positioned
for fast, easy Installation.
Tab to locate on
bottom of joist.
Break-away bar hangers
extend and will not fall out of
plaster flange.
Designed to fit ceiling slopes of
15° to 45°.
Adjustable socket assembly
provides flexibility in
lamping options.
6" SLOPED TRIM
(1) Medium Base
PAR38 75W max.
DAMP
1121-14
White Trim / Baffle (-14)
1109
New Construction / IC Airtight / Sloped Ceiling
Airtight Construction
Meets airtight requirements for 2.0 CFM or less air leakage.
Safe – thermally protected, listed for damp location
IC housings approved for use in direct contact with insulation.
Adjustable Housing
Housing adjusts vertically for various ceiling thicknesses
Junction box
Features quick-push and lock connector and through-circuit
wiring with 4in/4-out #12 Wire.
12.1"
307 mm
14.1"
358 mm
7.8"
198 mm
13.5"
343 mm
6.4"
163 mm
7.4"
188 mm
12.1"
307 mm
14.1"
358 mm
7.8"
198 mm
13.5"
343 mm
6.4"
163 mm
7.4"
188 mm
New Construction / IC Airtight / Sloped Ceiling
RECESSED
6" HOUSING 1109
459
