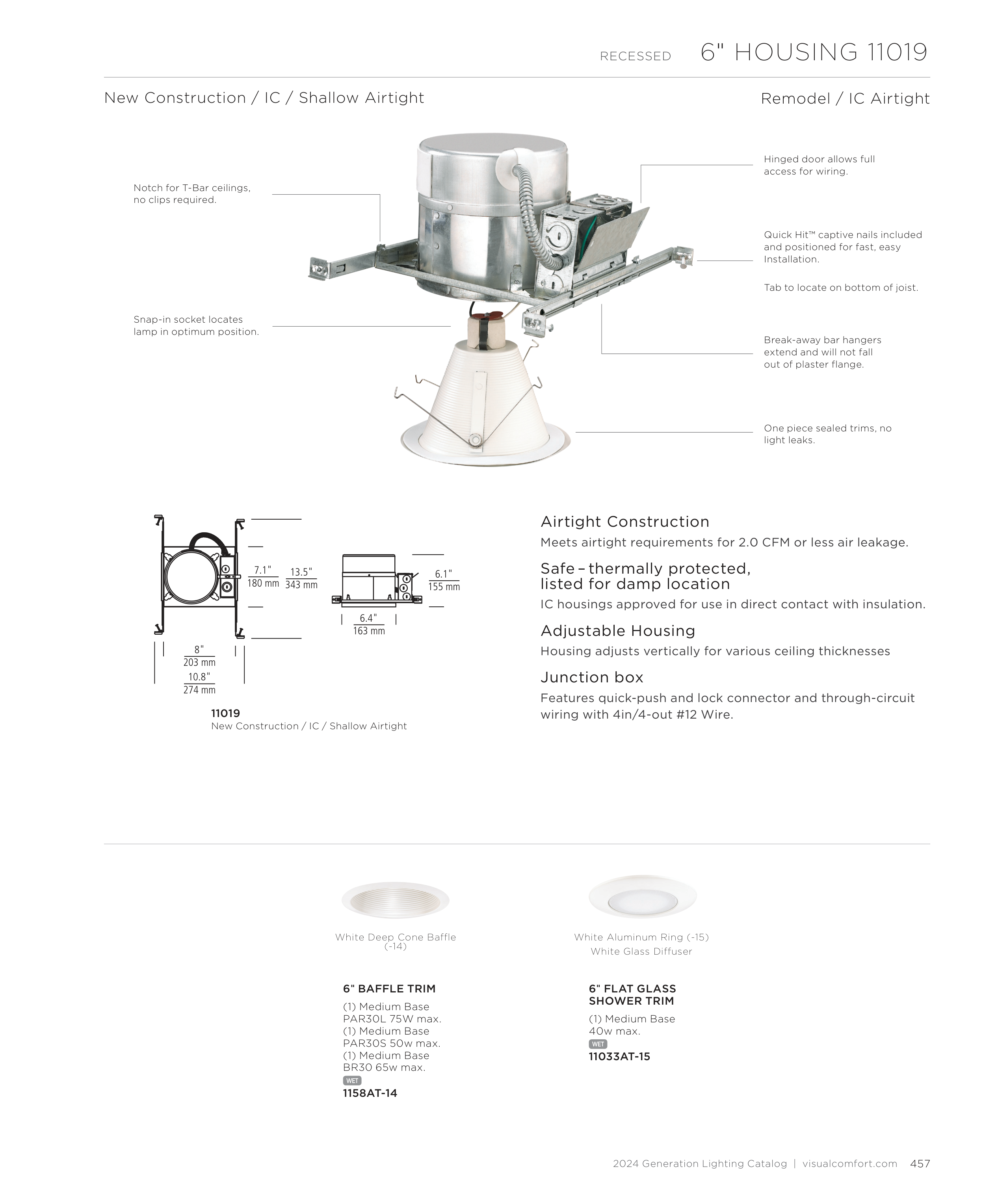

RECESSED
6" HOUSING 11019
New Construction / IC / Shallow Airtight
Remodel / IC Airtight
Snap-in socket locates
lamp in optimum position.
Quick Hit™ captive nails included
and positioned for fast, easy
Installation.
Tab to locate on bottom of joist.
Break-away bar hangers
extend and will not fall
out of plaster flange.
Hinged door allows full
access for wiring.
Notch for T-Bar ceilings,
no clips required.
One piece sealed trims, no
light leaks.
Airtight Construction
Meets airtight requirements for 2.0 CFM or less air leakage.
Safe – thermally protected,
listed for damp location
IC housings approved for use in direct contact with insulation.
Adjustable Housing
Housing adjusts vertically for various ceiling thicknesses
Junction box
Features quick-push and lock connector and through-circuit
wiring with 4in/4-out #12 Wire.
11019
New Construction / IC / Shallow Airtight
6.4"
163 mm
8"
203 mm
10.8"
274 mm
6.1"
155 mm
7.1"
180 mm
13.5"
343 mm
6" BAFFLE TRIM
(1) Medium Base
PAR30L 75W max.
(1) Medium Base
PAR30S 50w max.
(1) Medium Base
BR30 65w max.
WET
1158AT-14
White Deep Cone Baffle
(-14)
6" FLAT GLASS
SHOWER TRIM
(1) Medium Base
40w max.
WET
11033AT-15
White Aluminum Ring (-15)
White Glass Diffuser
457
