Notch for T-Bar ceilings,
no clips required.
Quick Hit™ captive
nails included and
positioned for fast,
easy Installation. Tab
to locate on bottom
of joist.
Break-away bar hangers
extend and will not fall
out of plaster flange.
Hinged door allows full
access for wiring.
Adjustable socket
assembly provides
flexibility in
lamping options.
6" BAFFLE TRIM
(1) Medium Base
PAR30L 75W max.
(1) Medium Base
PAR30S 50w max.
(1) Medium Base
BR30 65w max.
DAMP
1126-14
White Trim / Baffle (-14)
White Aluminum Ring (-15)
White Glass Diffuser
6" SHOWER TRIM
(1) Medium Base
40w max.
WET
1133AT-15
6" OPEN SHOWER TRIM
(1) Medium Base
PAR30L 75W max.
(1) Medium Base
PAR30S 50w max.
(1) Medium Base
PAR38 90w max.
WET
1154AT-14
White Aluminum Ring (-15)
Clear Fresnel Glass
6" SHOWER TRIM
(1) Medium Base
40w max.
WET
1155AT-15
6" BAFFLE TRIM
(1) Medium Base
PAR30L 75W max.
(1) Medium Base
PAR30S 50w max.
(1) Medium Base
BR30 65w max.
DAMP
1151AT-14
White Deep Cone Baffle
(-14)
White Deep Cone Baffle
(-14)

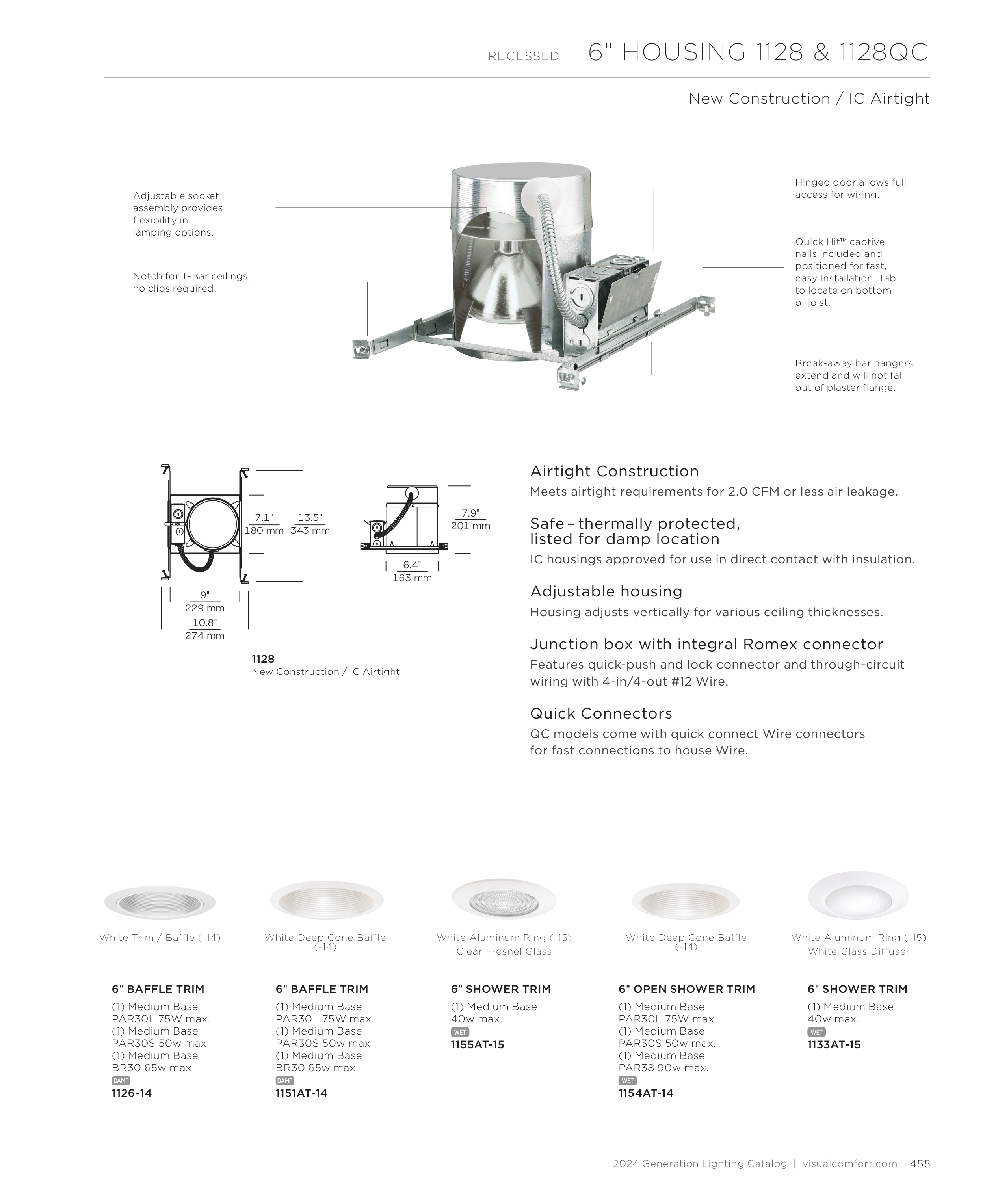

RECESSED
6" HOUSING 1128 & 1128QC
Airtight Construction
Meets airtight requirements for 2.0 CFM or less air leakage.
Safe – thermally protected,
listed for damp location
IC housings approved for use in direct contact with insulation.
Adjustable housing
Housing adjusts vertically for various ceiling thicknesses.
Junction box with integral Romex connector
Features quick-push and lock connector and through-circuit
wiring with 4-in/4-out #12 Wire.
Quick Connectors
QC models come with quick connect Wire connectors
for fast connections to house Wire.
1128
New Construction / IC Airtight
9"
229 mm
10.8"
274 mm
7.1"
180 mm
13.5"
343 mm
6.4"
163 mm
7.9"
201 mm
New Construction / IC Airtight
455
