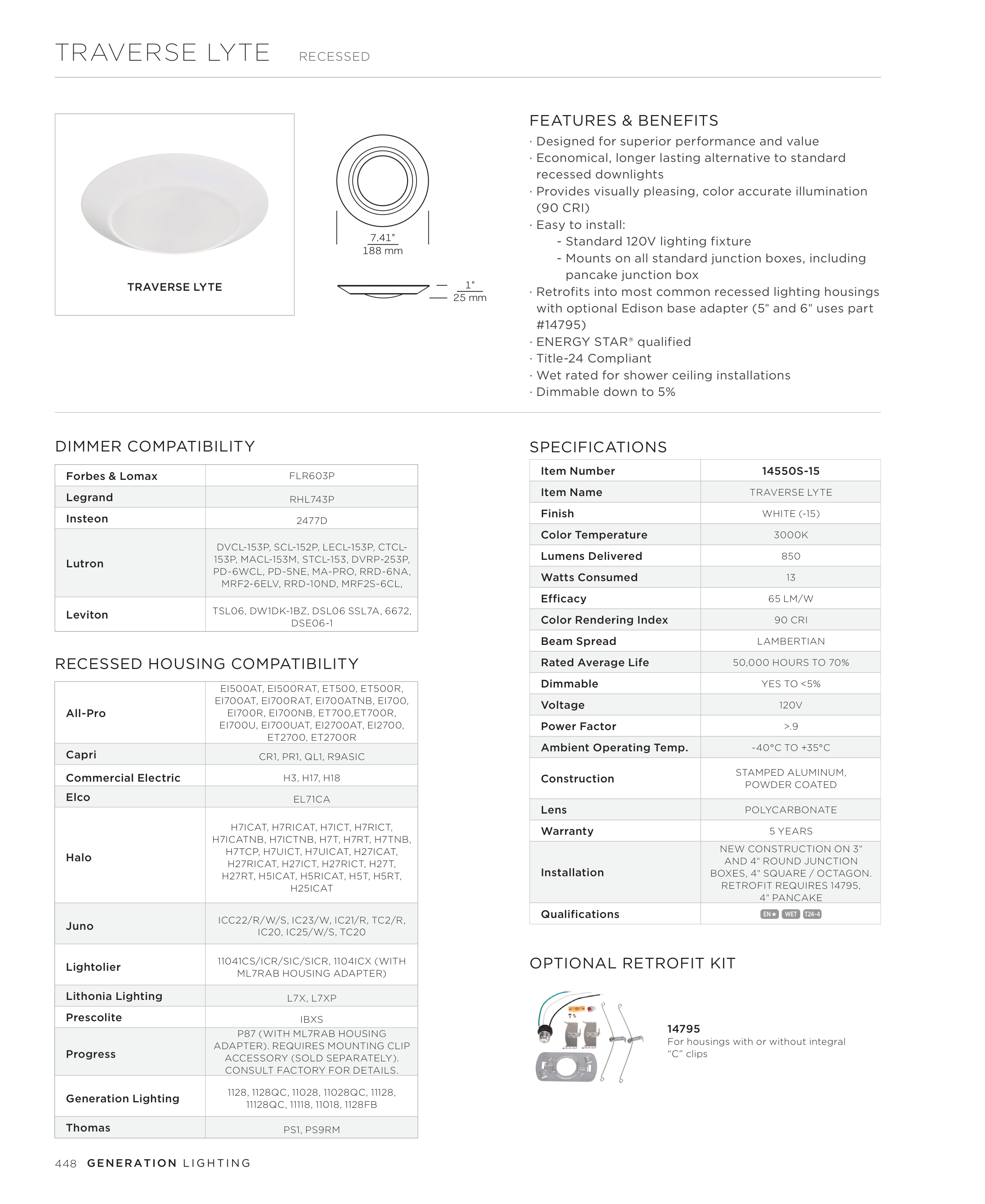

TRAVERSE LYTE
RECESSED
FEATURES & BENEFITS
∙ Designed for superior performance and value
∙ Economical, longer lasting alternative to standard
recessed downlights
∙ Provides visually pleasing, color accurate illumination
(90 CRI)
∙ Easy to install:
- Standard 120V lighting fixture
- Mounts on all standard junction boxes, including
pancake junction box
∙ Retrofits into most common recessed lighting housings
with optional Edison base adapter (5" and 6" uses part
#14795)
∙ ENERGY STAR® qualified
∙ Title-24 Compliant
∙ Wet rated for shower ceiling installations
∙ Dimmable down to 5%
14795
For housings with or without integral
“C” clips
Item Number
14550S-15
Item Name
TRAVERSE LYTE
Finish
WHITE (-15)
Color Temperature
3000K
Lumens Delivered
850
Watts Consumed
13
Efficacy
65 LM/W
Color Rendering Index
90 CRI
Beam Spread
LAMBERTIAN
Rated Average Life
50,000 HOURS TO 70%
Dimmable
YES TO <5%
Voltage
120V
Power Factor
>.9
Ambient Operating Temp.
-40°C TO +35°C
Construction
STAMPED ALUMINUM,
POWDER COATED
Lens
POLYCARBONATE
Warranty
5 YEARS
Installation
NEW CONSTRUCTION ON 3"
AND 4" ROUND JUNCTION
BOXES, 4" SQUARE / OCTAGON.
RETROFIT REQUIRES 14795,
4" PANCAKE
Qualifications
EN
WET T24-4
SPECIFICATIONS
All-Pro
EI500AT, EI500RAT, ET500, ET500R,
EI700AT, EI700RAT, EI700ATNB, EI700,
EI700R, EI700NB, ET700,ET700R,
EI700U, EI700UAT, EI2700AT, EI2700,
ET2700, ET2700R
Capri
CR1, PR1, QL1, R9ASIC
Commercial Electric
H3, H17, H18
Elco
EL71CA
Halo
H7ICAT, H7RICAT, H7ICT, H7RICT,
H7ICATNB, H7ICTNB, H7T, H7RT, H7TNB,
H7TCP, H7UICT, H7UICAT, H27ICAT,
H27RICAT, H27ICT, H27RICT, H27T,
H27RT, H5ICAT, H5RICAT, H5T, H5RT,
H25ICAT
Juno
ICC22/R/W/S, IC23/W, IC21/R, TC2/R,
IC20, IC25/W/S, TC20
Lightolier
11041CS/ICR/SIC/SICR, 1104ICX (WITH
ML7RAB HOUSING ADAPTER)
Lithonia Lighting
L7X, L7XP
Prescolite
IBXS
Progress
P87 (WITH ML7RAB HOUSING
ADAPTER). REQUIRES MOUNTING CLIP
ACCESSORY (SOLD SEPARATELY).
CONSULT FACTORY FOR DETAILS.
Generation Lighting
1128, 1128QC, 11028, 11028QC, 11128,
11128QC, 11118, 11018, 1128FB
Thomas
PS1, PS9RM
RECESSED HOUSING COMPATIBILITY
7.41"
188 mm
1"
25 mm
7.41"
188 mm
1"
25 mm
OPTIONAL RETROFIT KIT
TRAVERSE LYTE
DIMMER COMPATIBILITY
Forbes & Lomax
FLR603P
Legrand
RHL743P
Insteon
2477D
Lutron
DVCL-153P, SCL-152P, LECL-153P, CTCL-
153P, MACL-153M, STCL-153, DVRP-253P,
PD-6WCL, PD-5NE, MA-PRO, RRD-6NA,
MRF2-6ELV, RRD-10ND, MRF2S-6CL,
Leviton
TSL06, DW1DK-1BZ, DSL06 SSL7A, 6672,
DSE06-1
RECESSED
TRAVERSE DIRECT
448
