.93"
24 mm
11"
279 mm
12"
305 mm
8.2"
208 mm
9"
229 mm
.67"
17 mm
7.1"
180 mm
7.9"
201 mm
.67"
17 mm
4.6"
117 mm
5.4"
137 mm
.67"
17 mm

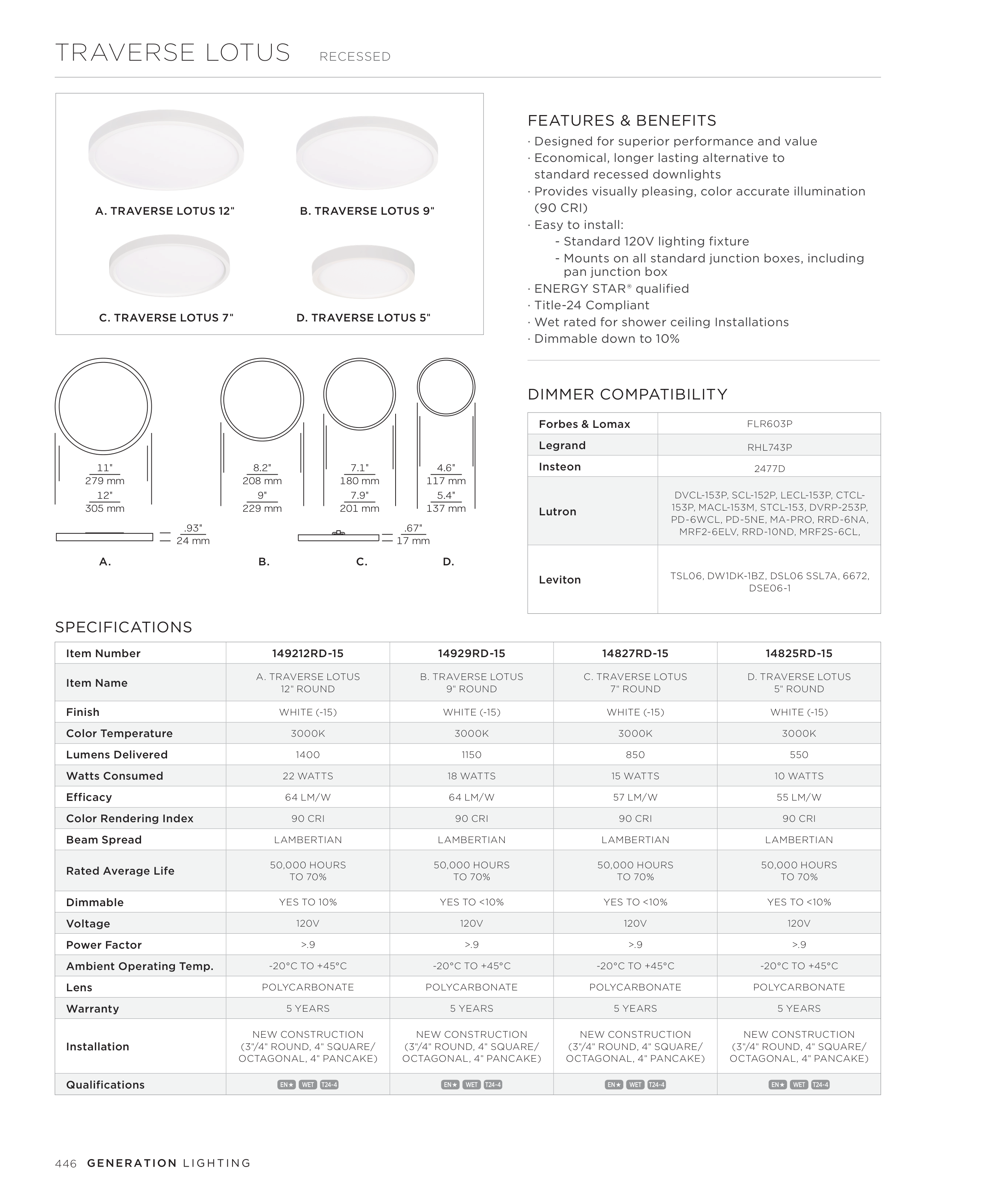

TRAVERSE LOTUS
RECESSED
RECESSED
TRAVERSE FLEX
Item Number
149212RD-15
14929RD-15
14827RD-15
14825RD-15
Item Name
A. TRAVERSE LOTUS
12" ROUND
B. TRAVERSE LOTUS
9" ROUND
C. TRAVERSE LOTUS
7" ROUND
D. TRAVERSE LOTUS
5" ROUND
Finish
WHITE (-15)
WHITE (-15)
WHITE (-15)
WHITE (-15)
Color Temperature
3000K
3000K
3000K
3000K
Lumens Delivered
1400
1150
850
550
Watts Consumed
22 WATTS
18 WATTS
15 WATTS
10 WATTS
Efficacy
64 LM/W
64 LM/W
57 LM/W
55 LM/W
Color Rendering Index
90 CRI
90 CRI
90 CRI
90 CRI
Beam Spread
LAMBERTIAN
LAMBERTIAN
LAMBERTIAN
LAMBERTIAN
Rated Average Life
50,000 HOURS
TO 70%
50,000 HOURS
TO 70%
50,000 HOURS
TO 70%
50,000 HOURS
TO 70%
Dimmable
YES TO 10%
YES TO <10%
YES TO <10%
YES TO <10%
Voltage
120V
120V
120V
120V
Power Factor
>.9
>.9
>.9
>.9
Ambient Operating Temp.
-20°C TO +45°C
-20°C TO +45°C
-20°C TO +45°C
-20°C TO +45°C
Lens
POLYCARBONATE
POLYCARBONATE
POLYCARBONATE
POLYCARBONATE
Warranty
5 YEARS
5 YEARS
5 YEARS
5 YEARS
Installation
NEW CONSTRUCTION
(3"/4" ROUND, 4" SQUARE/
OCTAGONAL, 4" PANCAKE)
NEW CONSTRUCTION
(3"/4" ROUND, 4" SQUARE/
OCTAGONAL, 4" PANCAKE)
NEW CONSTRUCTION
(3"/4" ROUND, 4" SQUARE/
OCTAGONAL, 4" PANCAKE)
NEW CONSTRUCTION
(3"/4" ROUND, 4" SQUARE/
OCTAGONAL, 4" PANCAKE)
Qualifications
EN
WET T24-4
EN
WET T24-4
EN
WET T24-4
EN
WET T24-4
SPECIFICATIONS
A. TRAVERSE LOTUS 12"
FEATURES & BENEFITS
∙ Designed for superior performance and value
∙ Economical, longer lasting alternative to
standard recessed downlights
∙ Provides visually pleasing, color accurate illumination
(90 CRI)
∙ Easy to install:
- Standard 120V lighting fixture
- Mounts on all standard junction boxes, including
pan junction box
∙ ENERGY STAR® qualified
∙ Title-24 Compliant
∙ Wet rated for shower ceiling Installations
∙ Dimmable down to 10%
B. TRAVERSE LOTUS 9"
C. TRAVERSE LOTUS 7"
D. TRAVERSE LOTUS 5"
DIMMER COMPATIBILITY
Forbes & Lomax
FLR603P
Legrand
RHL743P
Insteon
2477D
Lutron
DVCL-153P, SCL-152P, LECL-153P, CTCL-
153P, MACL-153M, STCL-153, DVRP-253P,
PD-6WCL, PD-5NE, MA-PRO, RRD-6NA,
MRF2-6ELV, RRD-10ND, MRF2S-6CL,
Leviton
TSL06, DW1DK-1BZ, DSL06 SSL7A, 6672,
DSE06-1
A.
B.
C.
D.
.93"
24 mm
11"
279 mm
12"
305 mm
8.2"
208 mm
9"
229 mm
.67"
17 mm
7.1"
180 mm
7.9"
201 mm
.67"
17 mm
4.6"
117 mm
5.4"
137 mm
.67"
17 mm
.93"
24 mm
11"
279 mm
12"
305 mm
8.2"
208 mm
9"
229 mm
.67"
17 mm
7.1"
180 mm
7.9"
201 mm
.67"
17 mm
4.6"
117 mm
5.4"
137 mm
.67"
17 mm
.93"
24 mm
11"
279 mm
12"
305 mm
8.2"
208 mm
9"
229 mm
.67"
17 mm
7.1"
180 mm
7.9"
201 mm
.67"
17 mm
4.6"
117 mm
5.4"
137 mm
.67"
17 mm
.93"
24 mm
11"
279 mm
12"
305 mm
8.2"
208 mm
9"
229 mm
.67"
17 mm
7.1"
180 mm
7.9"
201 mm
.67"
17 mm
4.6"
117 mm
5.4"
137 mm
.67"
17 mm
.93"
24 mm
11"
279 mm
12"
305 mm
8.2"
208 mm
9"
229 mm
.67"
17 mm
7.1"
180 mm
7.9"
201 mm
.67"
17 mm
4.6"
117 mm
5.4"
137 mm
.67"
17 mm
446
