Electronic Transformer
Dimming
75W 12V ZERO-LOAD
TRANSFORMER
L: 7.805" W: 1.36" H: 0.949"
Hardwire to power source and
operate remotely or with installed
switch.Secondary side features quick
connection for fast install.
96622S-12
When dimming a low-voltage system, it is recommended that
the dimming occur on the primary side of the transformer,
reducing the power coming into the transformer. The dimmer
must be matched to the type of transformer that’s powering
the system.
For Electronic transformers, use an eletronic low voltage
(ELV) Dimmer.
Electronic Transformer
Dimming
150W 12V ZERO-LOAD
TRANSFORMER
L: 8.385" W: 2.53" H: 1.219"
Hardwire to power source and operate
remotely or with installed switch.
96624S-12
When dimming a low-voltage system, it is recommended that
the dimming occur on the primary side of the transformer,
reducing the power coming into the transformer. The dimmer
must be matched to the type of transformer that’s powering
the system.
For Electronic transformers, use an eletronic low voltage
(ELV) Dimmer.

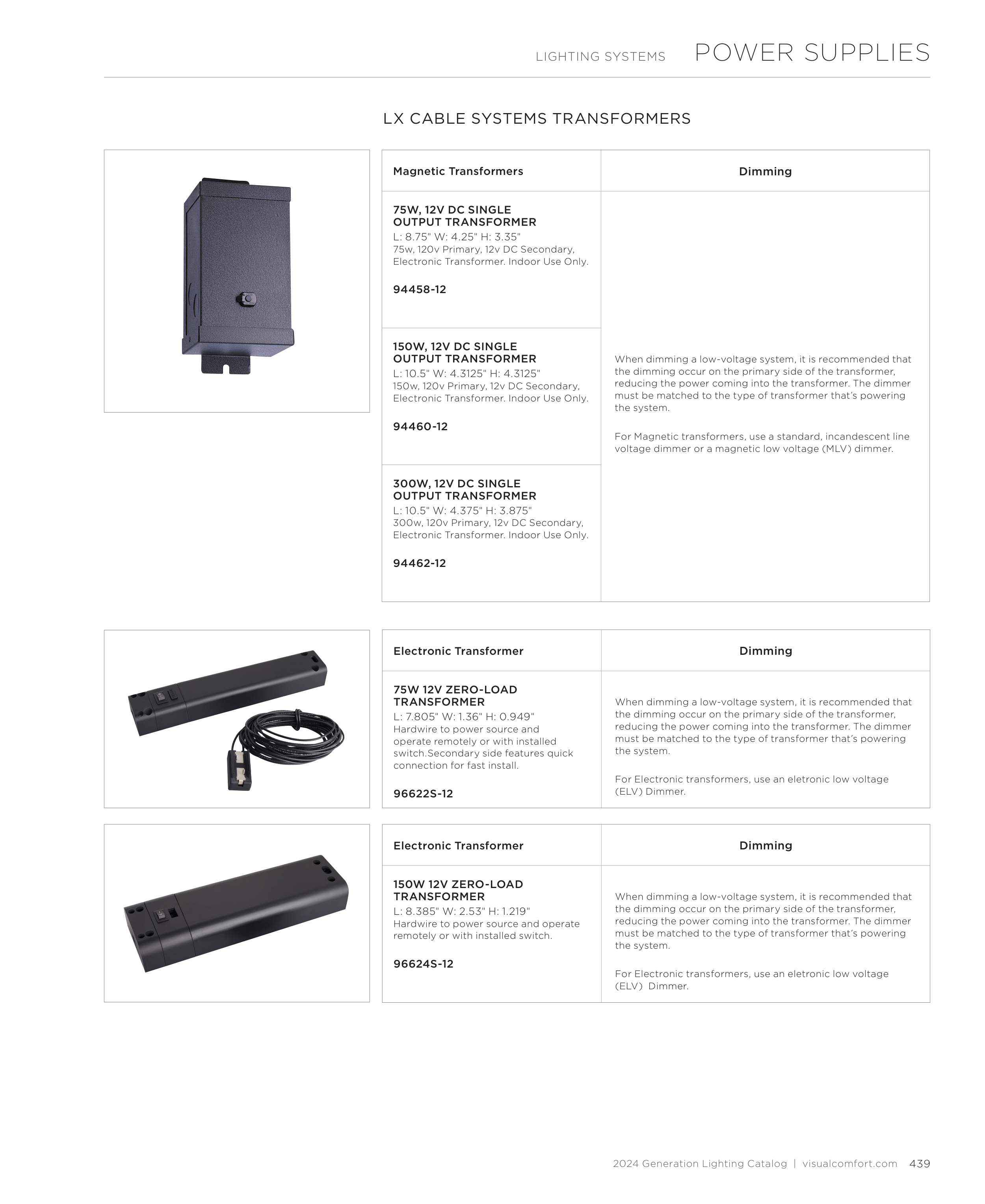

LX CABLE SYSTEMS TRANSFORMERS
LIGHTING SYSTEMS
POWER SUPPLIES
Magnetic Transformers
Dimming
75W, 12V DC SINGLE
OUTPUT TRANSFORMER
L: 8.75" W: 4.25" H: 3.35"
75w, 120v Primary, 12v DC Secondary,
Electronic Transformer. Indoor Use Only.
94458-12
When dimming a low-voltage system, it is recommended that
the dimming occur on the primary side of the transformer,
reducing the power coming into the transformer. The dimmer
must be matched to the type of transformer that’s powering
the system.
For Magnetic transformers, use a standard, incandescent line
voltage dimmer or a magnetic low voltage (MLV) dimmer.
150W, 12V DC SINGLE
OUTPUT TRANSFORMER
L: 10.5" W: 4.3125" H: 4.3125"
150w, 120v Primary, 12v DC Secondary,
Electronic Transformer. Indoor Use Only.
94460-12
300W, 12V DC SINGLE
OUTPUT TRANSFORMER
L: 10.5" W: 4.375" H: 3.875"
300w, 120v Primary, 12v DC Secondary,
Electronic Transformer. Indoor Use Only.
94462-12
439
