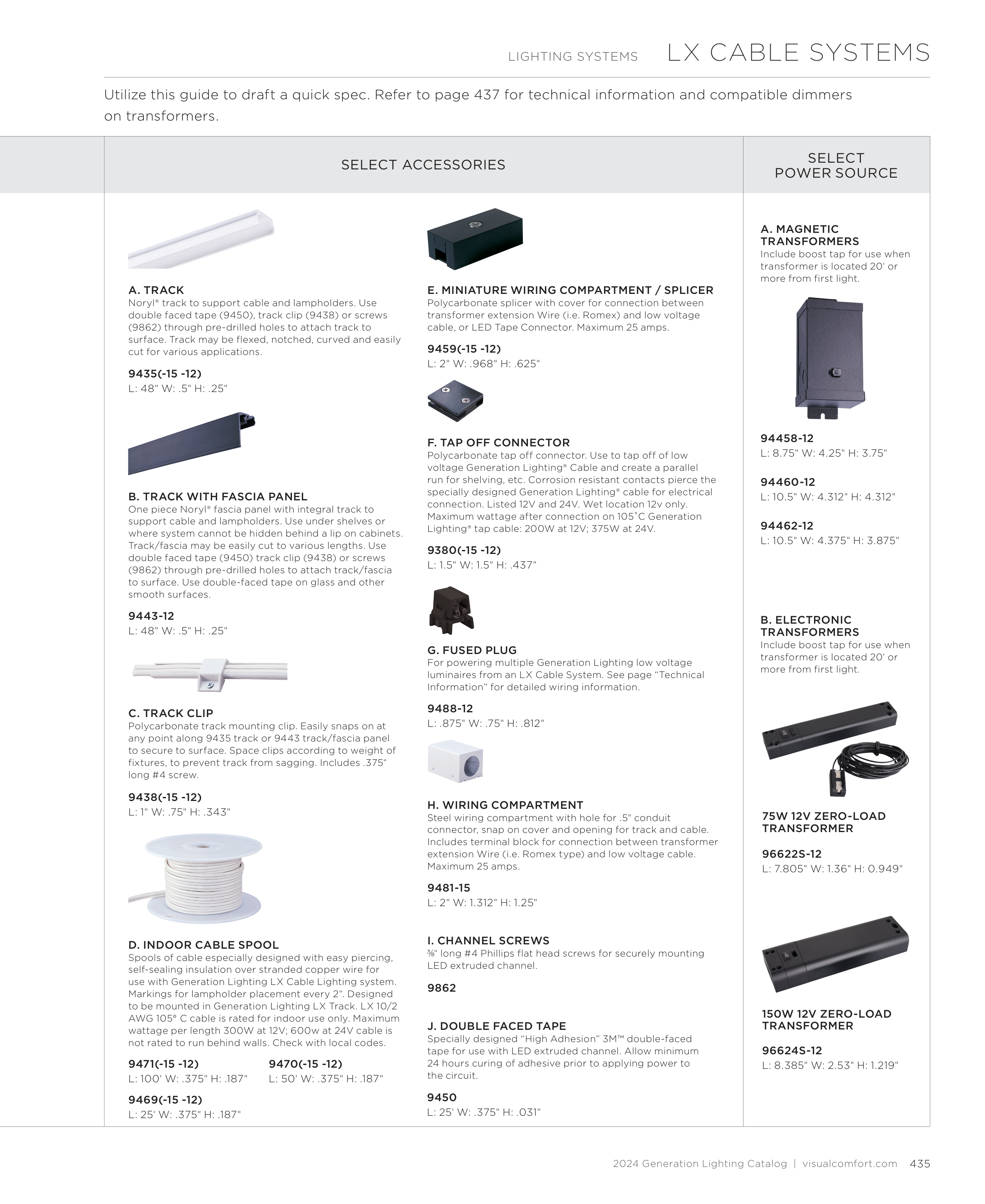

LIGHTING SYSTEMS
LX CABLE SYSTEMS
Utilize this guide to draft a quick spec. Refer to page 437 for technical information and compatible dimmers
on transformers.
SELECT
POWER SOURCE
SELECT ACCESSORIES
D. INDOOR CABLE SPOOL
Spools of cable especially designed with easy piercing,
self-sealing insulation over stranded copper wire for
use with Generation Lighting LX Cable Lighting system.
Markings for lampholder placement every 2". Designed
to be mounted in Generation Lighting LX Track. LX 10/2
AWG 105° C cable is rated for indoor use only. Maximum
wattage per length 300W at 12V; 600w at 24V cable is
not rated to run behind walls. Check with local codes.
9471(-15 -12)
L: 100' W: .375" H: .187"
9470(-15 -12)
L: 50' W: .375" H: .187"
9469(-15 -12)
L: 25' W: .375" H: .187"
A. TRACK
Noryl® track to support cable and lampholders. Use
double faced tape (9450), track clip (9438) or screws
(9862) through pre-drilled holes to attach track to
surface. Track may be flexed, notched, curved and easily
cut for various applications.
9435(-15 -12)
L: 48" W: .5" H: .25"
B. TRACK WITH FASCIA PANEL
One piece Noryl® fascia panel with integral track to
support cable and lampholders. Use under shelves or
where system cannot be hidden behind a lip on cabinets.
Track/fascia may be easily cut to various lengths. Use
double faced tape (9450) track clip (9438) or screws
(9862) through pre-drilled holes to attach track/fascia
to surface. Use double-faced tape on glass and other
smooth surfaces.
9443-12
L: 48" W: .5" H: .25"
I. CHANNEL SCREWS
" long #4 Phillips flat head screws for securely mounting
LED extruded channel.
9862
F. TAP OFF CONNECTOR
Polycarbonate tap off connector. Use to tap off of low
voltage Generation Lighting® Cable and create a parallel
run for shelving, etc. Corrosion resistant contacts pierce the
specially designed Generation Lighting® cable for electrical
connection. Listed 12V and 24V. Wet location 12v only.
Maximum wattage after connection on 105˚C Generation
Lighting® tap cable: 200W at 12V; 375W at 24V.
9380(-15 -12)
L: 1.5" W: 1.5" H: .437"
C. TRACK CLIP
Polycarbonate track mounting clip. Easily snaps on at
any point along 9435 track or 9443 track/fascia panel
to secure to surface. Space clips according to weight of
fixtures, to prevent track from sagging. Includes .375"
long #4 screw.
9438(-15 -12)
L: 1" W: .75" H: .343"
E. MINIATURE WIRING COMPARTMENT / SPLICER
Polycarbonate splicer with cover for connection between
transformer extension Wire (i.e. Romex) and low voltage
cable, or LED Tape Connector. Maximum 25 amps.
9459(-15 -12)
L: 2" W: .968" H: .625"
G. FUSED PLUG
For powering multiple Generation Lighting low voltage
luminaires from an LX Cable System. See page “Technical
Information” for detailed wiring information.
9488-12
L: .875" W: .75" H: .812"
H. WIRING COMPARTMENT
Steel wiring compartment with hole for .5" conduit
connector, snap on cover and opening for track and cable.
Includes terminal block for connection between transformer
extension Wire (i.e. Romex type) and low voltage cable.
Maximum 25 amps.
9481-15
L: 2" W: 1.312" H: 1.25"
J. DOUBLE FACED TAPE
Specially designed “High Adhesion” 3M™ double-faced
tape for use with LED extruded channel. Allow minimum
24 hours curing of adhesive prior to applying power to
the circuit.
9450
L: 25' W: .375" H: .031"
150W 12V ZERO-LOAD
TRANSFORMER
A. MAGNETIC
TRANSFORMERS
Include boost tap for use when
transformer is located 20' or
more from first light.
94458-12
L: 8.75" W: 4.25" H: 3.75"
94460-12
L: 10.5" W: 4.312" H: 4.312"
94462-12
L: 10.5" W: 4.375" H: 3.875"
B. ELECTRONIC
TRANSFORMERS
Include boost tap for use when
transformer is located 20' or
more from first light.
75W 12V ZERO-LOAD
TRANSFORMER
96622S-12
L: 7.805" W: 1.36" H: 0.949"
96624S-12
L: 8.385" W: 2.53" H: 1.219"
435
