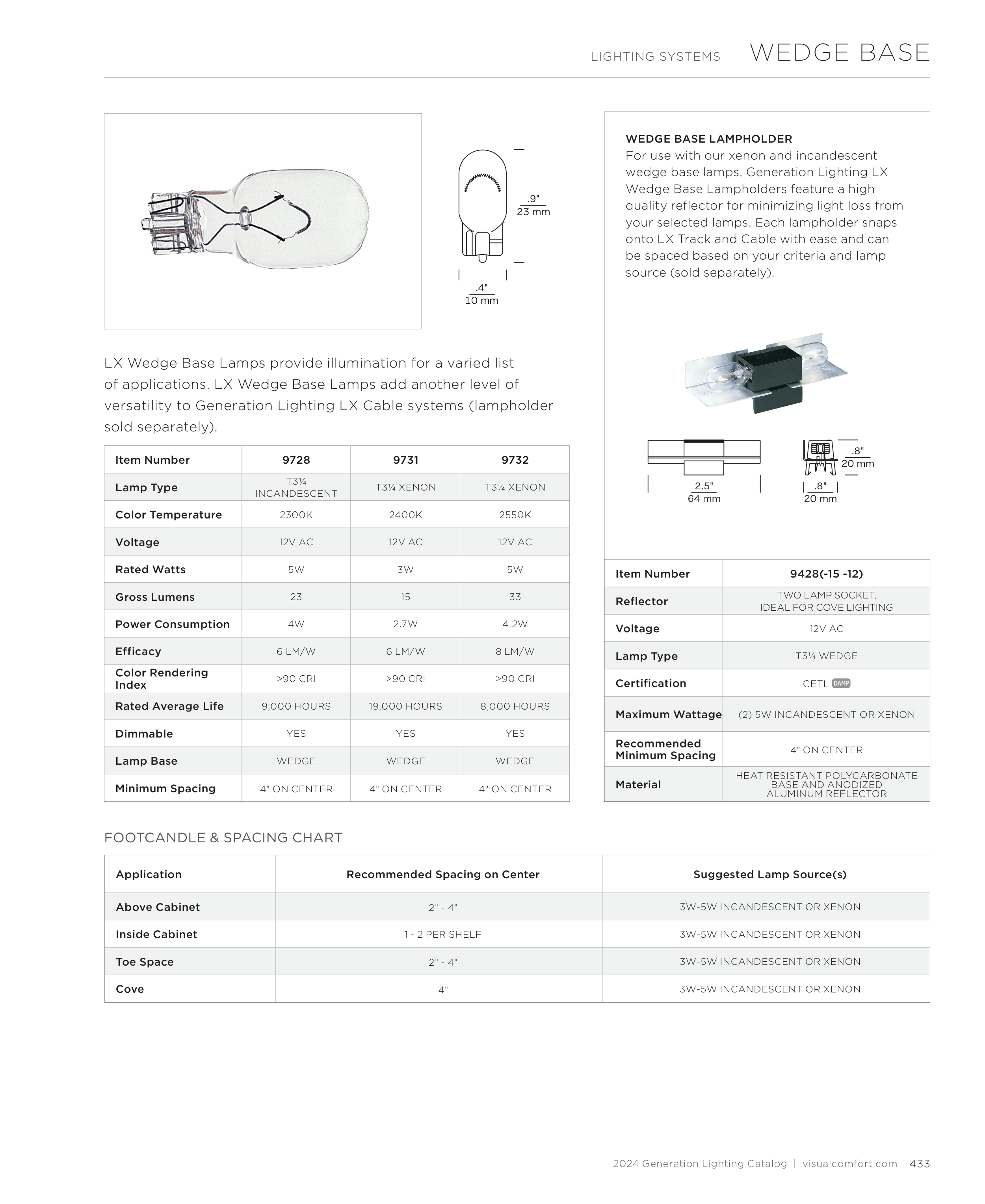

LIGHTING SYSTEMS
WEDGE BASE
LX Wedge Base Lamps provide illumination for a varied list
of applications. LX Wedge Base Lamps add another level of
versatility to Generation Lighting LX Cable systems (lampholder
sold separately).
Item Number
9728
9731
9732
Lamp Type
T31/4
INCANDESCENT
T31/4 XENON
T31/4 XENON
Color Temperature
2300K
2400K
2550K
Voltage
12V AC
12V AC
12V AC
Rated Watts
5W
3W
5W
Gross Lumens
23
15
33
Power Consumption
4W
2.7W
4.2W
Efficacy
6 LM/W
6 LM/W
8 LM/W
Color Rendering
Index
>90 CRI
>90 CRI
>90 CRI
Rated Average Life
9,000 HOURS
19,000 HOURS
8,000 HOURS
Dimmable
YES
YES
YES
Lamp Base
WEDGE
WEDGE
WEDGE
Minimum Spacing
4" ON CENTER
4" ON CENTER
4" ON CENTER
.4"
10 mm
.9"
23 mm
Application
Recommended Spacing on Center
Suggested Lamp Source(s)
Above Cabinet
2" - 4"
3W-5W INCANDESCENT OR XENON
Inside Cabinet
1 - 2 PER SHELF
3W-5W INCANDESCENT OR XENON
Toe Space
2" - 4"
3W-5W INCANDESCENT OR XENON
Cove
4"
3W-5W INCANDESCENT OR XENON
FOOTCANDLE & SPACING CHART
Item Number
9428(-15 -12)
Reflector
TWO LAMP SOCKET,
IDEAL FOR COVE LIGHTING
Voltage
12V AC
Lamp Type
T31/4 WEDGE
Certification
CETL DAMP
Maximum Wattage
(2) 5W INCANDESCENT OR XENON
Recommended
Minimum Spacing
4" ON CENTER
Material
HEAT RESISTANT POLYCARBONATE
BASE AND ANODIZED
ALUMINUM REFLECTOR
WEDGE BASE LAMPHOLDER
For use with our xenon and incandescent
wedge base lamps, Generation Lighting LX
Wedge Base Lampholders feature a high
quality reflector for minimizing light loss from
your selected lamps. Each lampholder snaps
onto LX Track and Cable with ease and can
be spaced based on your criteria and lamp
source (sold separately).
2.5"
64 mm
.8"
20 mm
3"
76 mm
.8"
20 mm
1.3"
33 mm
2.5"
64 mm
.8"
20 mm
3"
76 mm
.8"
20 mm
1.3"
33 mm
433
