.4"
10 mm
1.7"
43 mm
Item Number
97118(-32 -33)
97119(-32 -33)
Color Temperature
2550K
2650K
Voltage
12V AC
12V AC
Rated Watts
5 WATTS
10 WATTS
Finish
CLEAR (-32), FROSTED (-33)
Gross Lumens
33
83
Power Consumption
4.2W
8.4W
Efficacy
8 LM/W
10 LM/W
Color Rendering Index
>90 CRI
Rated Average Life
16,000 HOURS
12,000 HOURS
Dimmable
YES
Lamp Base
FESTOON
Recommended Spacing
4" ON CENTER (1" MINIMUM SEPARATION)

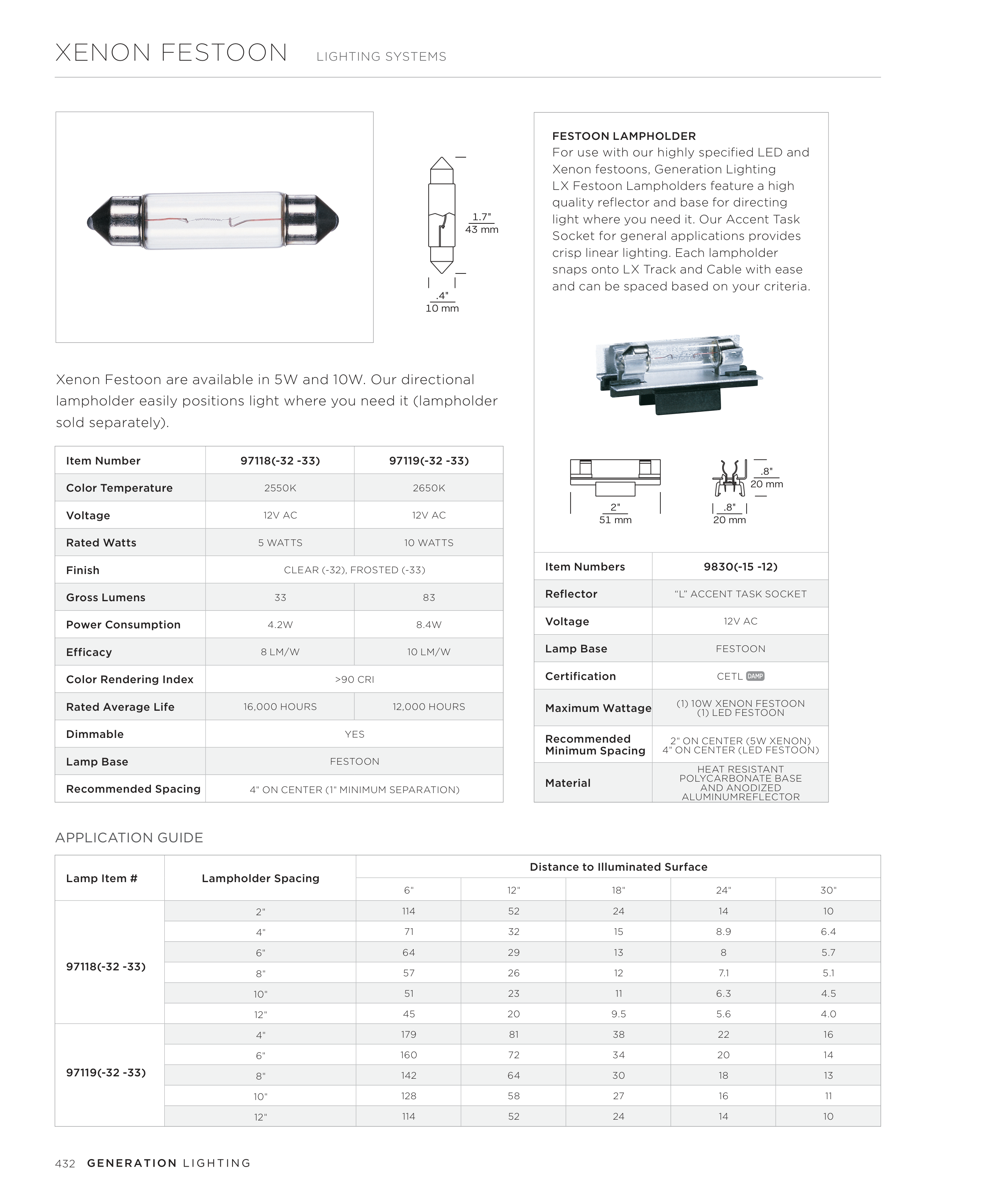

XENON FESTOON
LIGHTING SYSTEMS
LIGHTING SYSTEMS
WEDGE BASE
Lamp Item #
Lampholder Spacing
Distance to Illuminated Surface
6"
12"
18"
24"
30"
97118(-32 -33)
2"
114
52
24
14
10
4"
71
32
15
8.9
6.4
6"
64
29
13
8
5.7
8"
57
26
12
7.1
5.1
10"
51
23
11
6.3
4.5
12"
45
20
9.5
5.6
4.0
97119(-32 -33)
4"
179
81
38
22
16
6"
160
72
34
20
14
8"
142
64
30
18
13
10"
128
58
27
16
11
12"
114
52
24
14
10
Xenon Festoon are available in 5W and 10W. Our directional
lampholder easily positions light where you need it (lampholder
sold separately).
APPLICATION GUIDE
Item Numbers
9830(-15 -12)
Reflector
“L” ACCENT TASK SOCKET
Voltage
12V AC
Lamp Base
FESTOON
Certification
CETL DAMP
Maximum Wattage
(1) 10W XENON FESTOON
(1) LED FESTOON
Recommended
Minimum Spacing
2" ON CENTER (5W XENON)
4" ON CENTER (LED FESTOON)
Material
HEAT RESISTANT
POLYCARBONATE BASE
AND ANODIZED
ALUMINUMREFLECTOR
FESTOON LAMPHOLDER
For use with our highly specified LED and
Xenon festoons, Generation Lighting
LX Festoon Lampholders feature a high
quality reflector and base for directing
light where you need it. Our Accent Task
Socket for general applications provides
crisp linear lighting. Each lampholder
snaps onto LX Track and Cable with ease
and can be spaced based on your criteria.
2"
51 mm
2"
51 mm
.8"
20 mm
1.3"
33 mm
.8"
20 mm
.8"
20 mm
2"
51 mm
2"
51 mm
.8"
20 mm
1.3"
33 mm
.8"
20 mm
.8"
20 mm
