Application
Recommended Spacing on Center
Suggested Lamp Source(s)
Above Cabinet
6" - 12"
LED FESTOON
Under Cabinet
2" - 6"
LED FESTOON
Inside Cabinet
1 - 2 PER SHELF
LED FESTOON
Toe Space
4"
LED FESTOON
Showcase
4" - 6"
LED FESTOON
Cove
2" - 6"
LED FESTOON
Item Number
96116S(-32 -33)
96118S(-32 -33)
Finish
CLEAR (-32), FROSTED (-33)
Color Temperature
2700K
3000K
Voltage
12V AC
Delivered Lumens
59
60
Power Consumption
.708W
Efficacy
83 LM/W
85 LM/W
Color Rendering Index
>90 CRI
Rated Average Life
50,000 HOURS TO 70%
Dimmable(1)
DOWN TO 10%
Lamp Base
FESTOON
Recommended Spacing
4" ON CENTER (1" MINIMUM SEPARATION)
Certification
CETL DAMP
(1) LX LED Festoons are dimmable on magnetic and electronic low voltage systems. For magnetic systems, a standard incandescent or magnetic
low voltage (MLV) dimmer can be used. For electronic, an electronic low voltage (ELV) dimmer is recommended.
Lamps in chart above only compatible with Festoon Lampholder 9830.

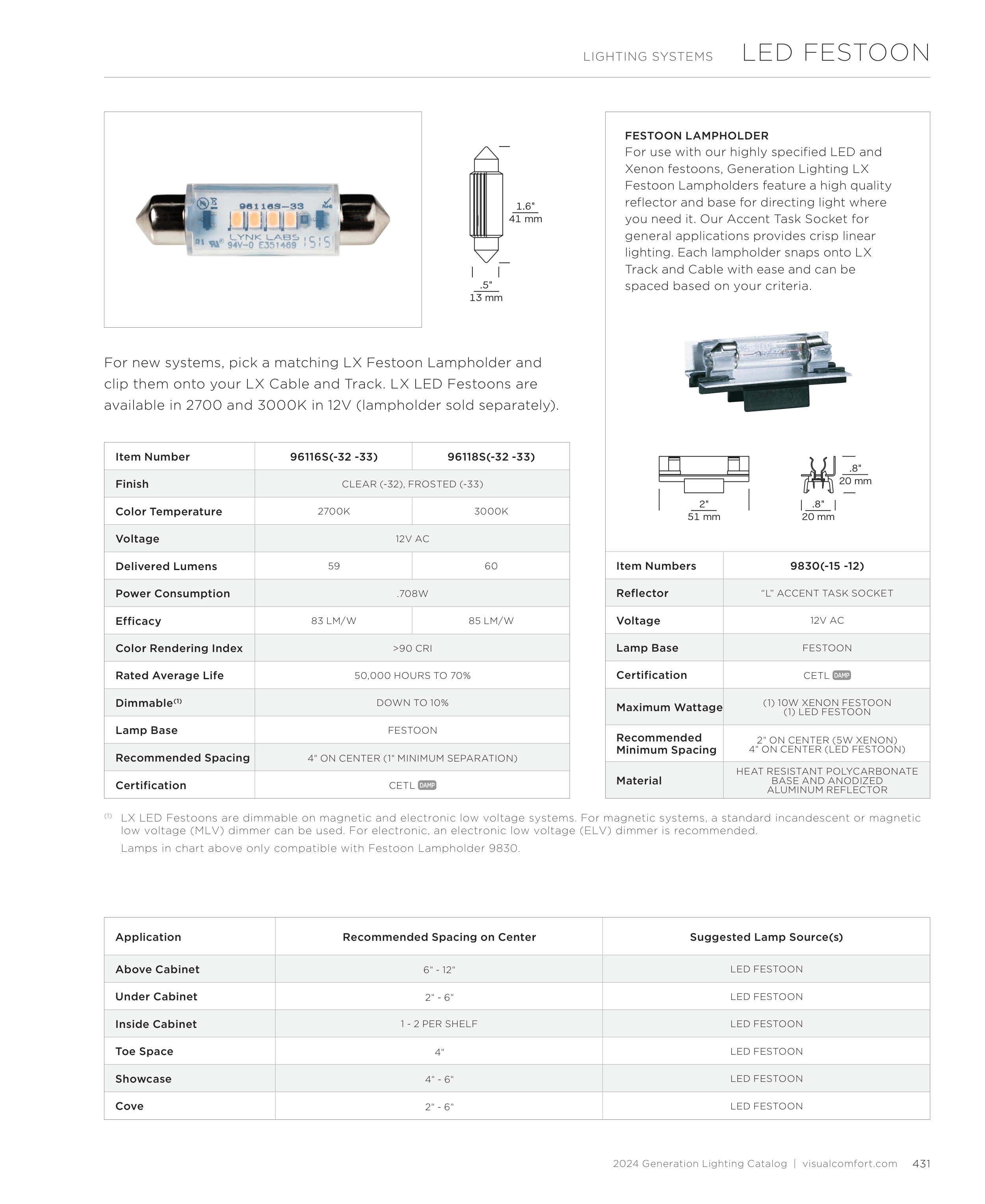

LIGHTING SYSTEMS
LED FESTOON
For new systems, pick a matching LX Festoon Lampholder and
clip them onto your LX Cable and Track. LX LED Festoons are
available in 2700 and 3000K in 12V (lampholder sold separately).
.5"
13 mm
1.6"
41 mm
Item Numbers
9830(-15 -12)
Reflector
“L” ACCENT TASK SOCKET
Voltage
12V AC
Lamp Base
FESTOON
Certification
CETL DAMP
Maximum Wattage
(1) 10W XENON FESTOON
(1) LED FESTOON
Recommended
Minimum Spacing
2" ON CENTER (5W XENON)
4" ON CENTER (LED FESTOON)
Material
HEAT RESISTANT POLYCARBONATE
BASE AND ANODIZED
ALUMINUM REFLECTOR
FESTOON LAMPHOLDER
For use with our highly specified LED and
Xenon festoons, Generation Lighting LX
Festoon Lampholders feature a high quality
reflector and base for directing light where
you need it. Our Accent Task Socket for
general applications provides crisp linear
lighting. Each lampholder snaps onto LX
Track and Cable with ease and can be
spaced based on your criteria.
2"
51 mm
2"
51 mm
.8"
20 mm
1.3"
33 mm
.8"
20 mm
.8"
20 mm
2"
51 mm
2"
51 mm
.8"
20 mm
1.3"
33 mm
.8"
20 mm
.8"
20 mm
431
