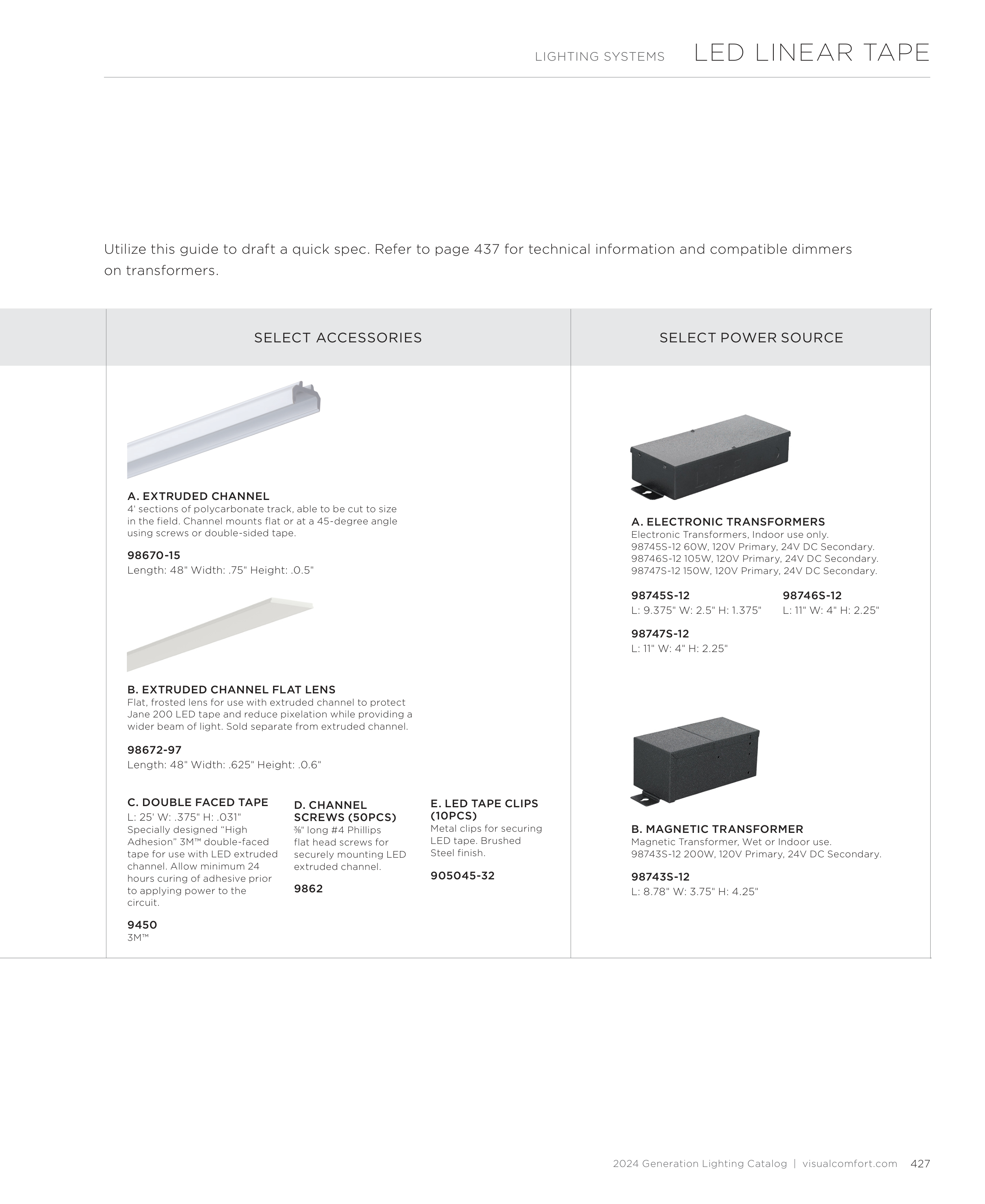

LIGHTING SYSTEMS
LED LINEAR TAPE
Utilize this guide to draft a quick spec. Refer to page 437 for technical information and compatible dimmers
on transformers.
SELECT POWER SOURCE
SELECT ACCESSORIES
B. EXTRUDED CHANNEL FLAT LENS
Flat, frosted lens for use with extruded channel to protect
Jane 200 LED tape and reduce pixelation while providing a
wider beam of light. Sold separate from extruded channel.
98672-97
Length: 48" Width: .625" Height: .0.6"
C. DOUBLE FACED TAPE
L: 25' W: .375" H: .031"
Specially designed “High
Adhesion” 3M™ double-faced
tape for use with LED extruded
channel. Allow minimum 24
hours curing of adhesive prior
to applying power to the
circuit.
9450
3M™
E. LED TAPE CLIPS
(10PCS)
Metal clips for securing
LED tape. Brushed
Steel finish.
905045-32
D. CHANNEL
SCREWS (50PCS)
" long #4 Phillips
flat head screws for
securely mounting LED
extruded channel.
9862
98670-15
Length: 48" Width: .75" Height: .0.5"
A. EXTRUDED CHANNEL
4' sections of polycarbonate track, able to be cut to size
in the field. Channel mounts flat or at a 45-degree angle
using screws or double-sided tape.
98745S-12
L: 9.375" W: 2.5" H: 1.375"
98746S-12
L: 11" W: 4" H: 2.25"
98747S-12
L: 11" W: 4" H: 2.25"
A. ELECTRONIC TRANSFORMERS
Electronic Transformers, Indoor use only.
98745S-12 60W, 120V Primary, 24V DC Secondary.
98746S-12 105W, 120V Primary, 24V DC Secondary.
98747S-12 150W, 120V Primary, 24V DC Secondary.
98743S-12
L: 8.78" W: 3.75" H: 4.25"
B. MAGNETIC TRANSFORMER
Magnetic Transformer, Wet or Indoor use.
98743S-12 200W, 120V Primary, 24V DC Secondary.
427
2024 Generation Lighting Catalog | visualcomfort.com
