12.3"
312 mm
21.3"
541 mm
24.5"
622 mm
33.5"
851 mm
42.5"
1080 mm
3.3"
84 mm

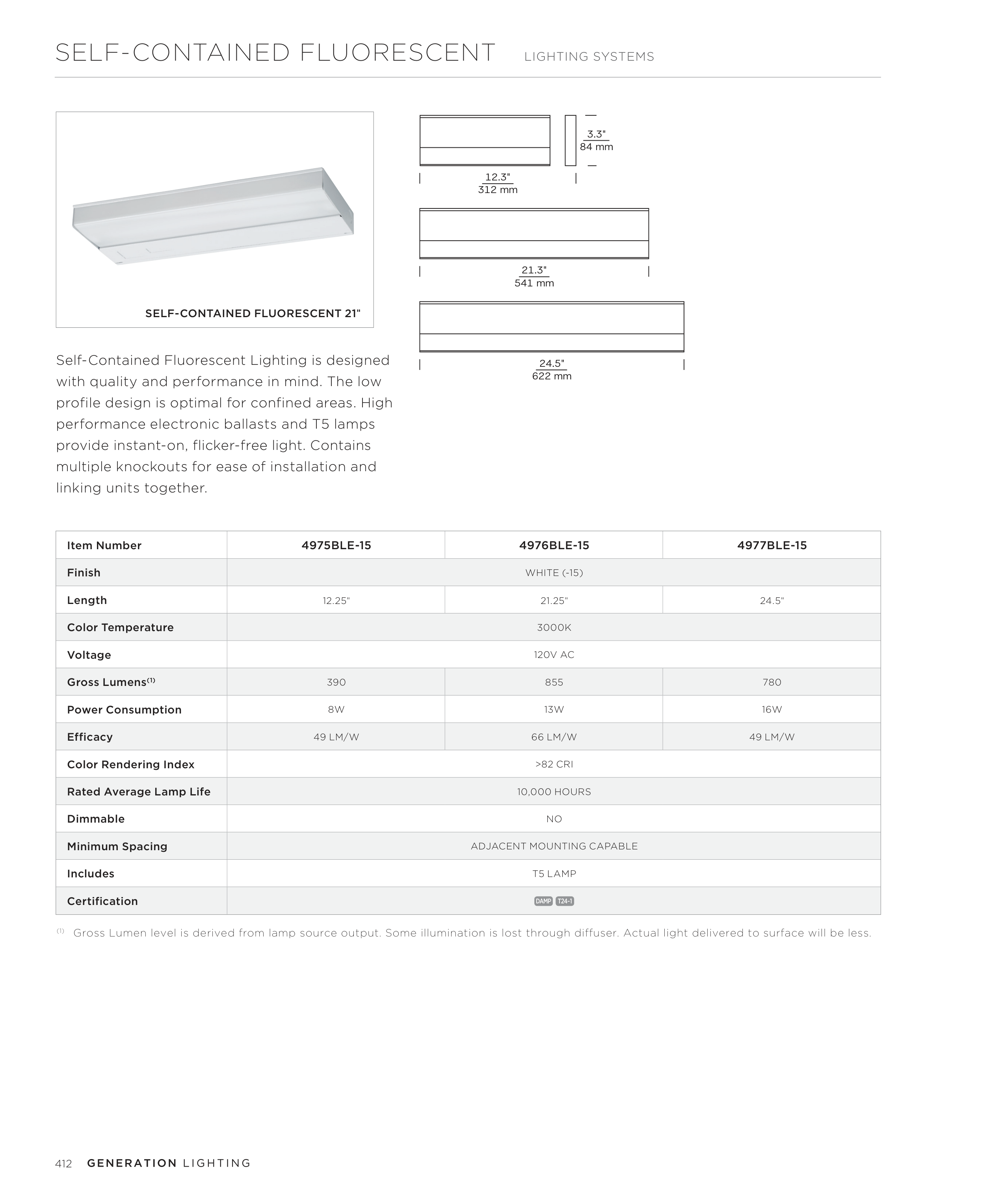

SELF-CONTAINED FLUORESCENT 21"
Self-Contained Fluorescent Lighting is designed
with quality and performance in mind. The low
profile design is optimal for confined areas. High
performance electronic ballasts and T5 lamps
provide instant-on, flicker-free light. Contains
multiple knockouts for ease of installation and
linking units together.
Item Number
4975BLE-15
4976BLE-15
4977BLE-15
Finish
WHITE (-15)
Length
12.25"
21.25"
24.5"
Color Temperature
3000K
Voltage
120V AC
Gross Lumens(1)
390
855
780
Power Consumption
8W
13W
16W
Efficacy
49 LM/W
66 LM/W
49 LM/W
Color Rendering Index
>82 CRI
Rated Average Lamp Life
10,000 HOURS
Dimmable
NO
Minimum Spacing
ADJACENT MOUNTING CAPABLE
Includes
T5 LAMP
Certification
DAMP T24-1
(1) Gross Lumen level is derived from lamp source output. Some illumination is lost through diffuser. Actual light delivered to surface will be less.
SELF-CONTAINED FLUORESCENT
LIGHTING SYSTEMS
LIGHTING SYSTEMS
SELF-CONTAINED FLUORESCENT
412
