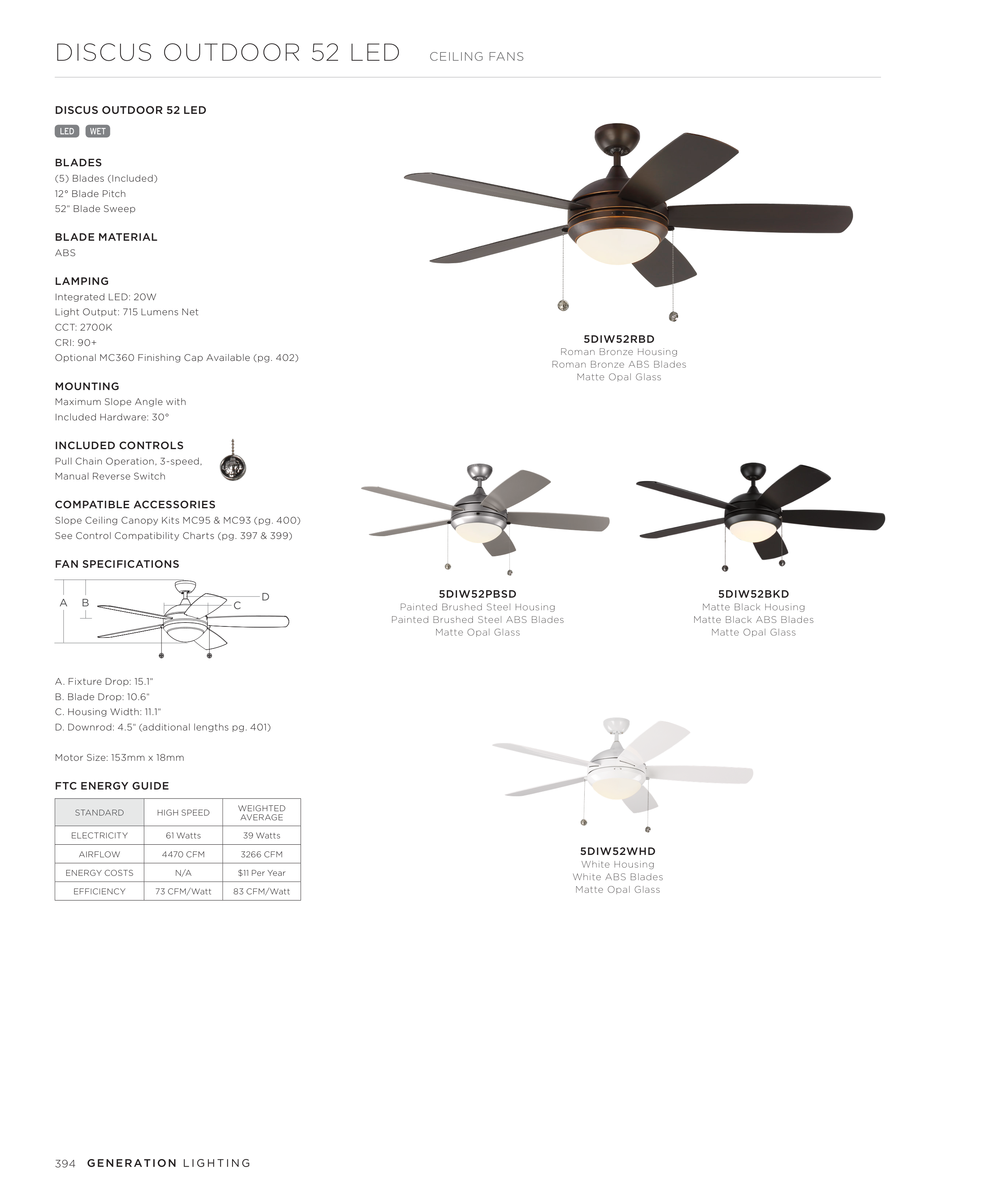

DISCUS OUTDOOR 52 LED
CEILING FANS
DISCUS OUTDOOR 52 LED
LED WET
BLADES
(5) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 20W
Light Output: 715 Lumens Net
CCT: 2700K
CRI: 90+
Optional MC360 Finishing Cap Available (pg. 402)
MOUNTING
Maximum Slope Angle with
Included Hardware: 30°
INCLUDED CONTROLS
Pull Chain Operation, 3-speed,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 400)
See Control Compatibility Charts (pg. 397 & 399)
FAN SPECIFICATIONS
A
B
C
D
A. Fixture Drop: 15.1"
B. Blade Drop: 10.6"
C. Housing Width: 11.1"
D. Downrod: 4.5" (additional lengths pg. 401)
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
61 Watts
39 Watts
AIRFLOW
4470 CFM
3266 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
73 CFM/Watt
83 CFM/Watt
5DIW52RBD
Roman Bronze Housing
Roman Bronze ABS Blades
Matte Opal Glass
5DIW52PBSD
Painted Brushed Steel Housing
Painted Brushed Steel ABS Blades
Matte Opal Glass
5DIW52BKD
Matte Black Housing
Matte Black ABS Blades
Matte Opal Glass
5DIW52WHD
White Housing
White ABS Blades
Matte Opal Glass
