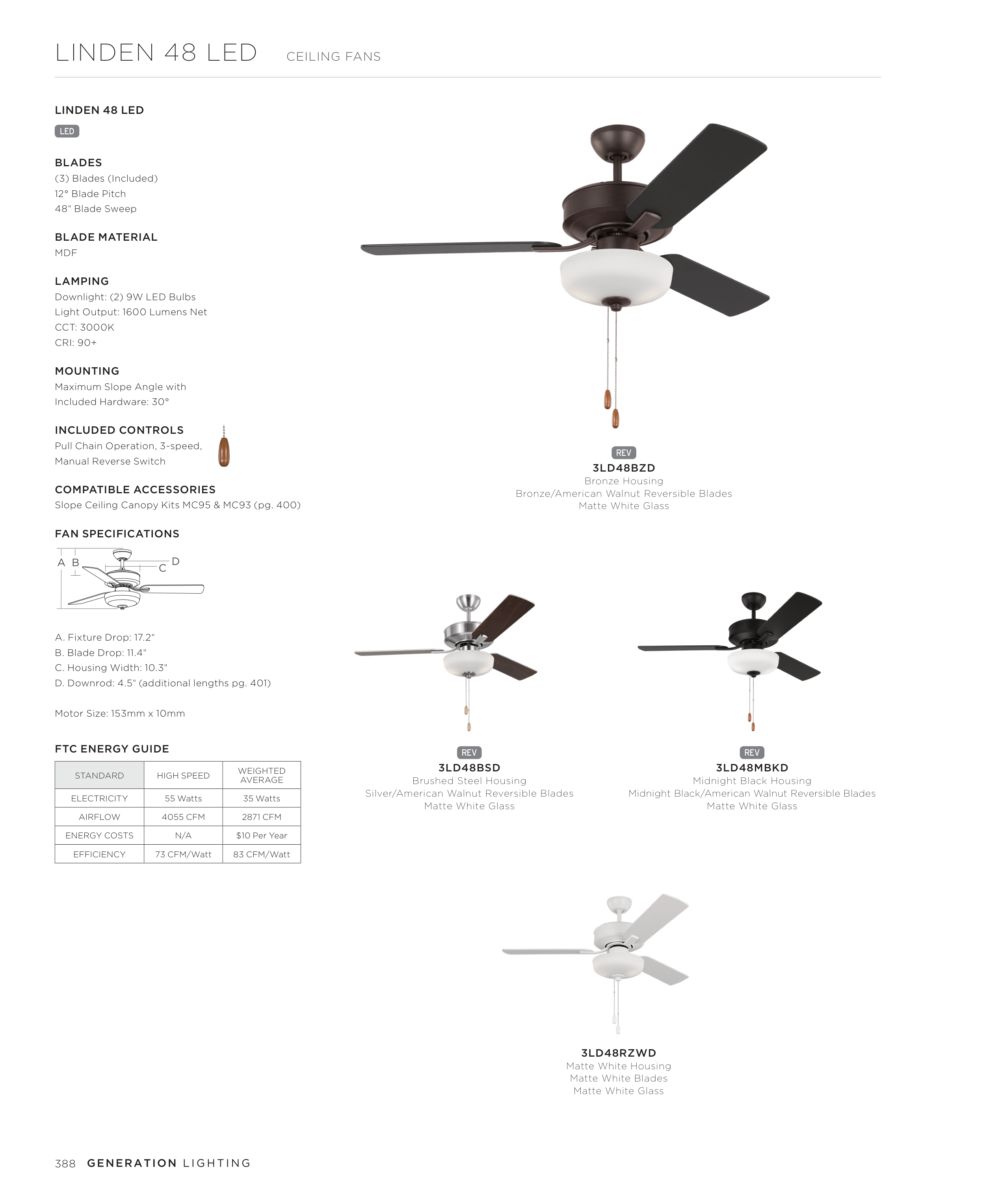

LINDEN 48 LED
CEILING FANS
CEILING FANS
LINDEN 48
LINDEN 48 LED
LED
BLADES
(3) Blades (Included)
12° Blade Pitch
48" Blade Sweep
BLADE MATERIAL
MDF
LAMPING
Downlight: (2) 9W LED Bulbs
Light Output: 1600 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with
Included Hardware: 30°
INCLUDED CONTROLS
Pull Chain Operation, 3-speed,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 400)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 17.2"
B. Blade Drop: 11.4"
C. Housing Width: 10.3"
D. Downrod: 4.5" (additional lengths pg. 401)
Motor Size: 153mm x 10mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
55 Watts
35 Watts
AIRFLOW
4055 CFM
2871 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
73 CFM/Watt
83 CFM/Watt
REV
3LD48BZD
Bronze Housing
Bronze/American Walnut Reversible Blades
Matte White Glass
3LD48RZWD
Matte White Housing
Matte White Blades
Matte White Glass
REV
3LD48BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Matte White Glass
REV
3LD48MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Matte White Glass
388
