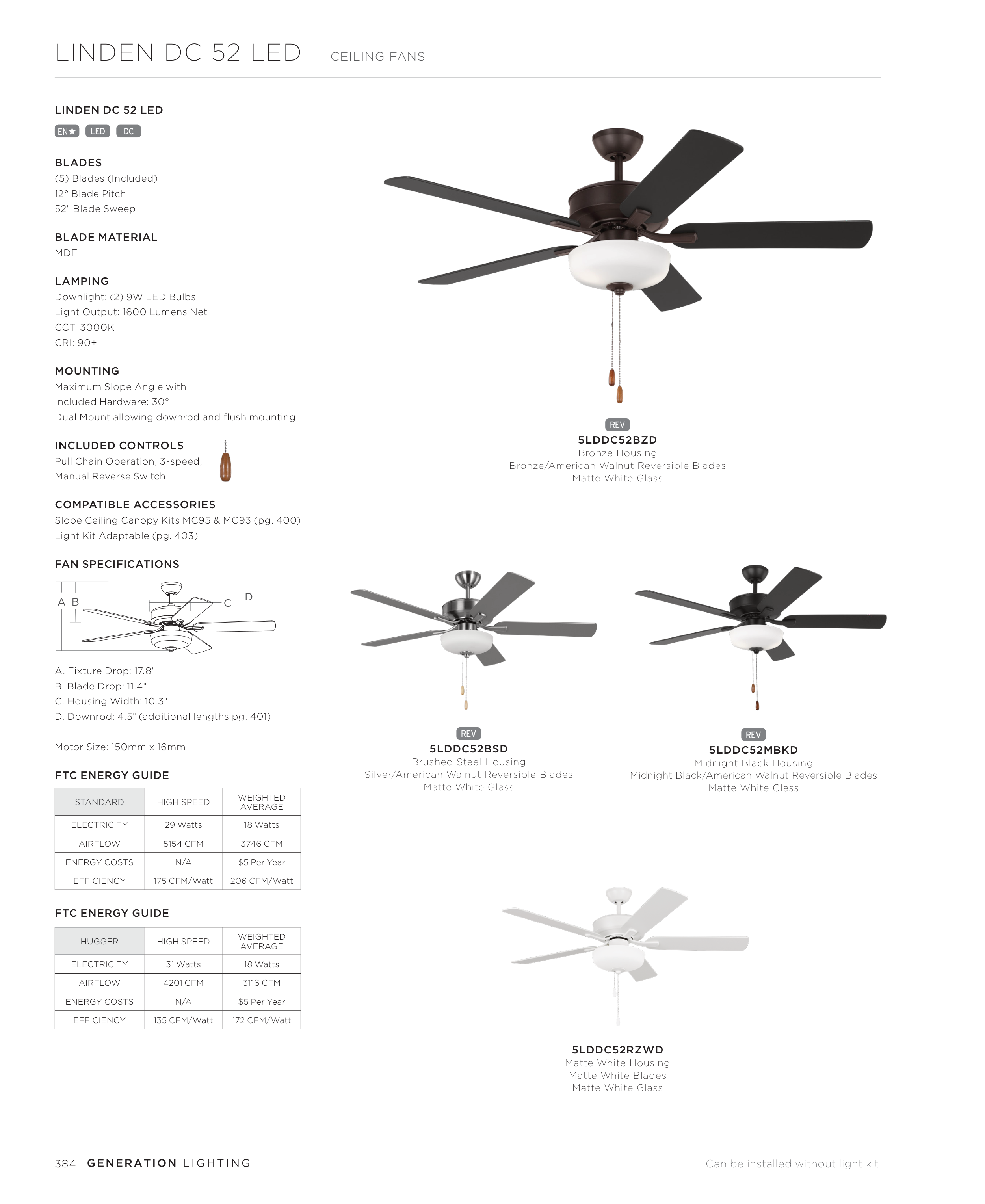

LINDEN DC 52 LED
CEILING FANS
CEILING FANS
LINDEN 52 LED
REV
5LDDC52BZD
Bronze Housing
Bronze/American Walnut Reversible Blades
Matte White Glass
REV
5LDDC52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Matte White Glass
REV
5LDDC52MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Matte White Glass
5LDDC52RZWD
Matte White Housing
Matte White Blades
Matte White Glass
LINDEN DC 52 LED
EN★ LED
DC
BLADES
(5) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
MDF
LAMPING
Downlight: (2) 9W LED Bulbs
Light Output: 1600 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with
Included Hardware: 30°
Dual Mount allowing downrod and flush mounting
INCLUDED CONTROLS
Pull Chain Operation, 3-speed,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 400)
Light Kit Adaptable (pg. 403)
FAN SPECIFICATIONS
D
A B
C
A. Fixture Drop: 17.8"
B. Blade Drop: 11.4"
C. Housing Width: 10.3"
D. Downrod: 4.5" (additional lengths pg. 401)
Motor Size: 150mm x 16mm
FTC ENERGY GUIDE
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
29 Watts
18 Watts
AIRFLOW
5154 CFM
3746 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
175 CFM/Watt
206 CFM/Watt
HUGGER
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
31 Watts
18 Watts
AIRFLOW
4201 CFM
3116 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
135 CFM/Watt
172 CFM/Watt
384
Can be installed without light kit.
